Engine Controls - Idle Speed Control Resistance Values

Group
36 - ENGINE ELECTRICAL

Number
03-36-024

Date
November, 2003

Model
Santa Fe 2001-2004, Sonata 1999-2004 and Tiburon 2003-2004

Subject
RESISTANCE VALUES FOR IDLE SPEED CONTROL ACTUATOR (ISCA)

DESCRIPTION:

The 2000-03 ACCENT, 2001-04 ELANTRA, 2001-04 SANTA FE, 1999-2004 SONATA and 2003-04 TIBURON

Shop Manuals list incorrect resistance values for the Idle Speed Control Actuator (ISCA).

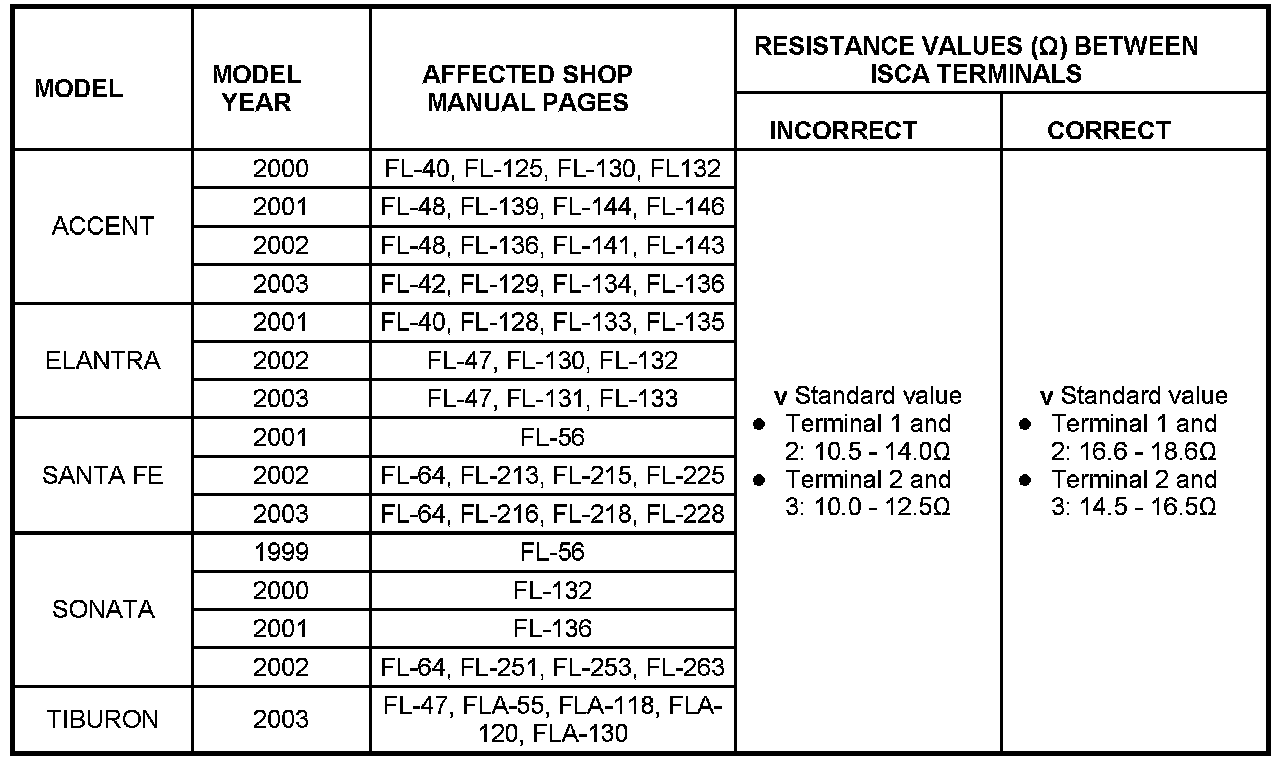

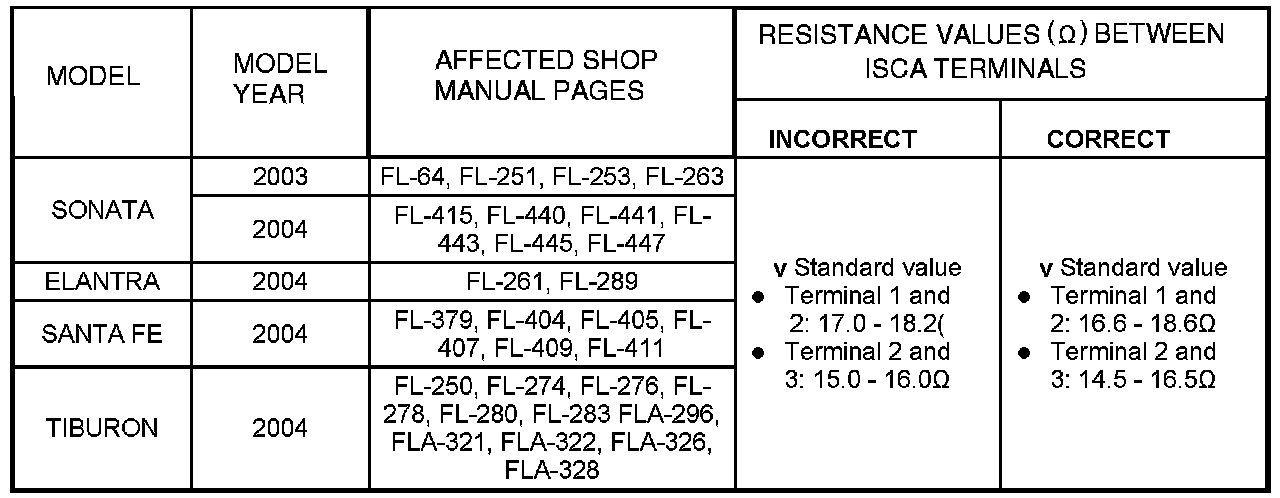

This bulletin provides the correct specifications shown.

Please write this TSB number at the top of the affected Shop Manual pages for future reference.

NOTE
This TSB does not apply to the SULEV Elantra.
