Engine Controls - DTC's P0130/P0503/'R' to 'D' Lurch: Overview

Group:
ENGINE ELECTRICAL

Number:
06-36-002

Date:
MAY, 2006

Model:
2000-2004 ACCENT

Subject:
2000-2004 1.5L & 1.6L ACCENT P0130 (OXYGEN SENSOR) AND P0503 (SPEED SENSOR)

This bulletin supersedes TSB # 05-36-003-2 to correct DTC code in the title from P0530 to P0503.

DESCRIPTION:
Some 2000-2004 Accents with 1.5L SOHC and 1.6L DOHC engines may experience the following symptoms:

^ DTC P0130 (Oxygen Sensor Malfunction)

^ DTC P0503 (Speed Sensor Malfunction)

^ Reverse to Drive lurch while rolling backwards (On Automatic Transaxle equipped vehicles only)

This bulletin describes the procedure for updating the Engine Control Module (ECM) software to improve the above condition by using the Hi-Scan Pro.

VEHICLES AFFECTED:
^ Model: 2000-2004 ACCENT vehicles with 1.5L SOHC and 1.6L DOHC engines.

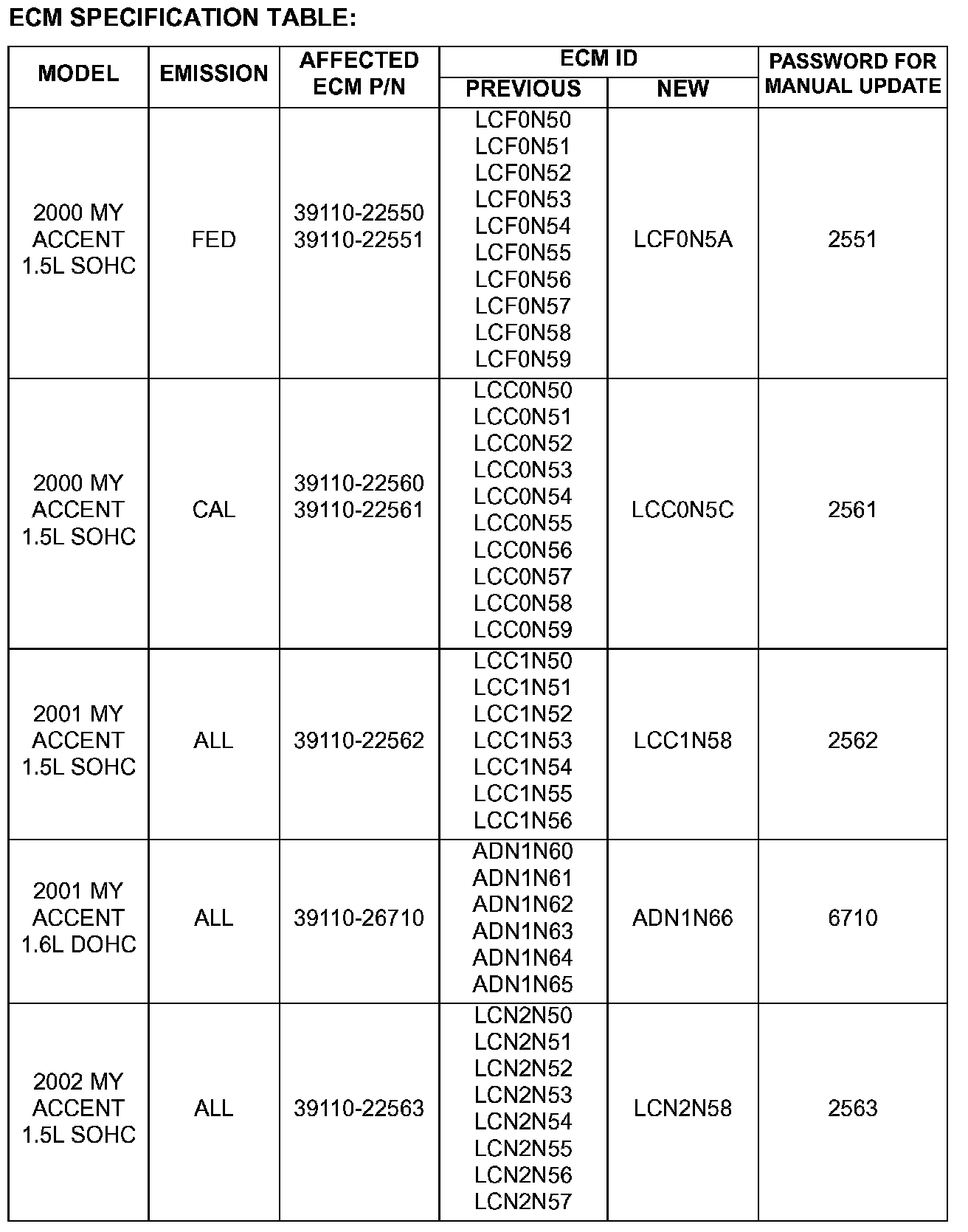

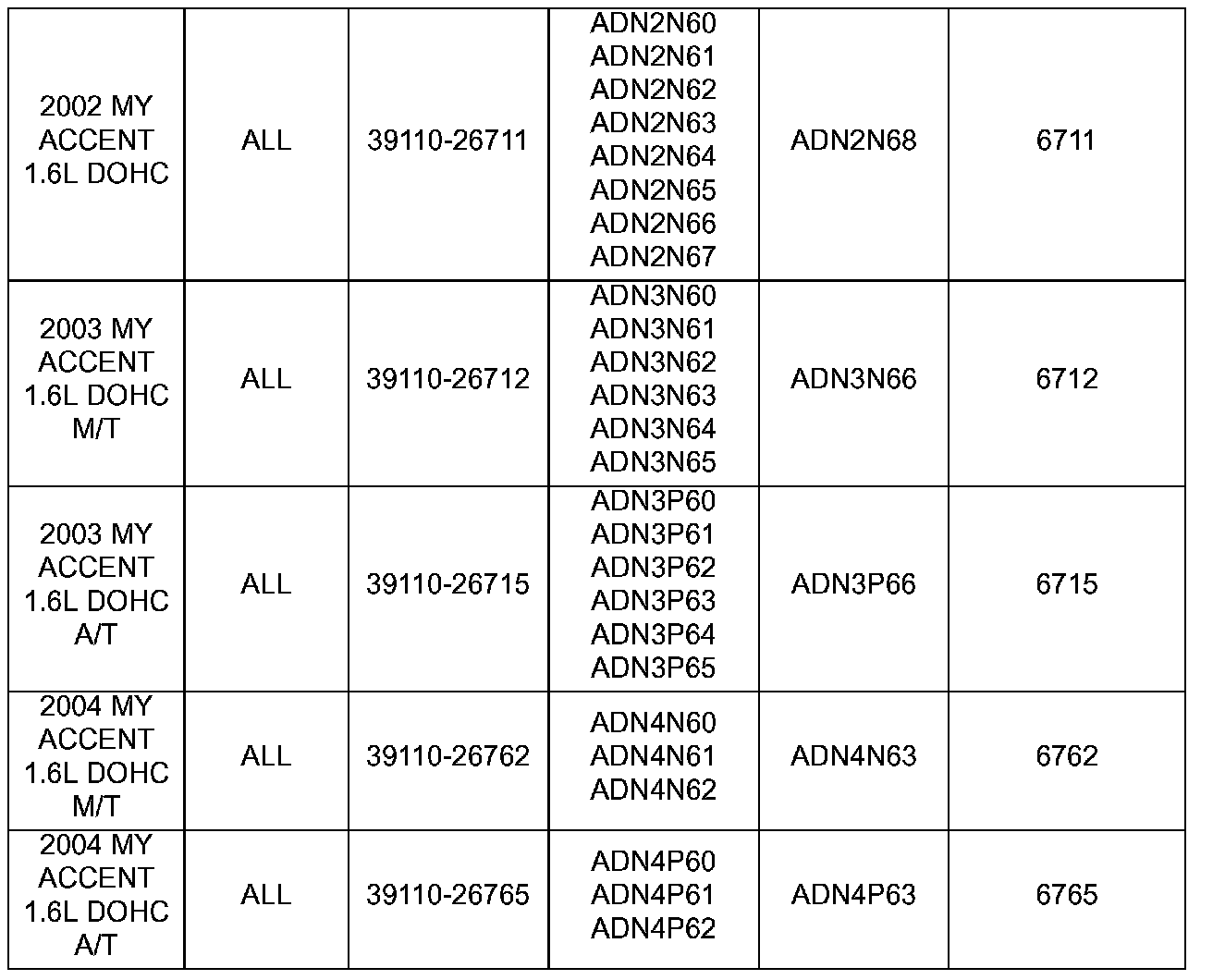

ECM SPECIFICATION TABLE

CAUTIONS BEFORE REPROGRAMMING:

1. Conduct reprogramming with the ignition key in the "ON" position.

2. Be careful not to disconnect any cables connected to the vehicle or Hi-Scan Pro during reprogramming.

WARNING:
If reprogramming is interrupted, the manual update procedure must be used.

3. Do not start the engine during reprogramming.

4. Do not turn the ignition key off during reprogramming.

5. When the reprogramming is completed, turn off the ignition key for 20 seconds before starting the engine.

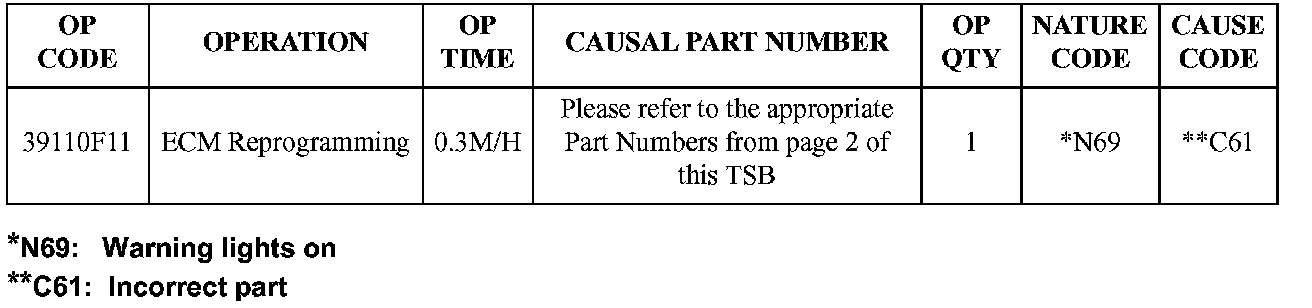

WARRANTY INFORMATION
