A/T - Diagnostic Trouble Code List

Group:
TRANSAXLE

Number:
02-40-012

Date:
03-2002

Model:
Accent 1996-2002
Elantra 1996-2000
Tiburon 1997-2001

Subject:
AUTOMATIC TRANSAXLE DIAGNOSTIC TROUBLE CODE LIST

DESCRIPTION:

1996-2002 Accent, 1996-2000 Elantra and 1997-2001 Tiburon vehicles share common transaxle diagnostic trouble codes (DTC). Elantra and Tiburon vehicles beginning with June 1, 1999 production and 2000-2001 Accent vehicles use a valve body with six solenoids and have several new DTCs.

NOTE
When servicing these vehicles for a driveability condition, check for DTCs in both "Engine" and "Automatic Transaxle" menus. When cancelling DTCs, it is necessary to cancel codes separately in both menus.

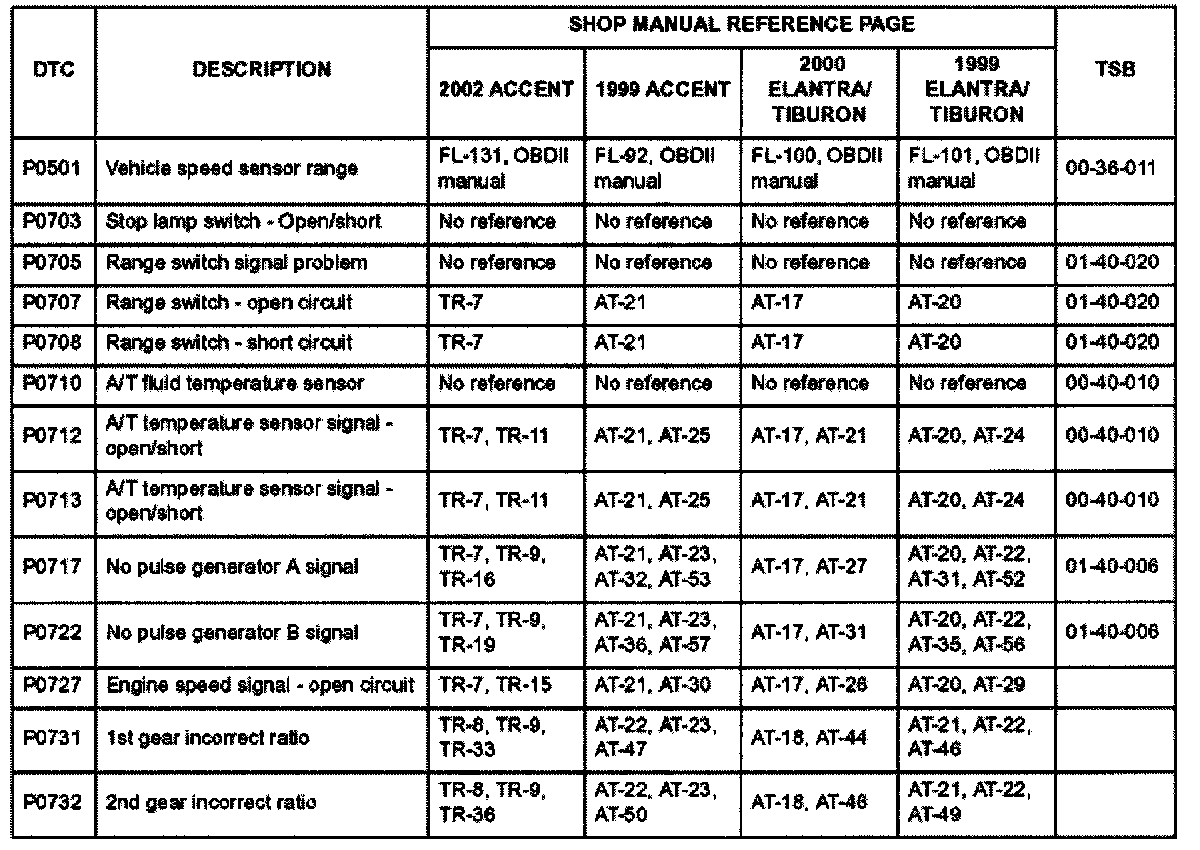

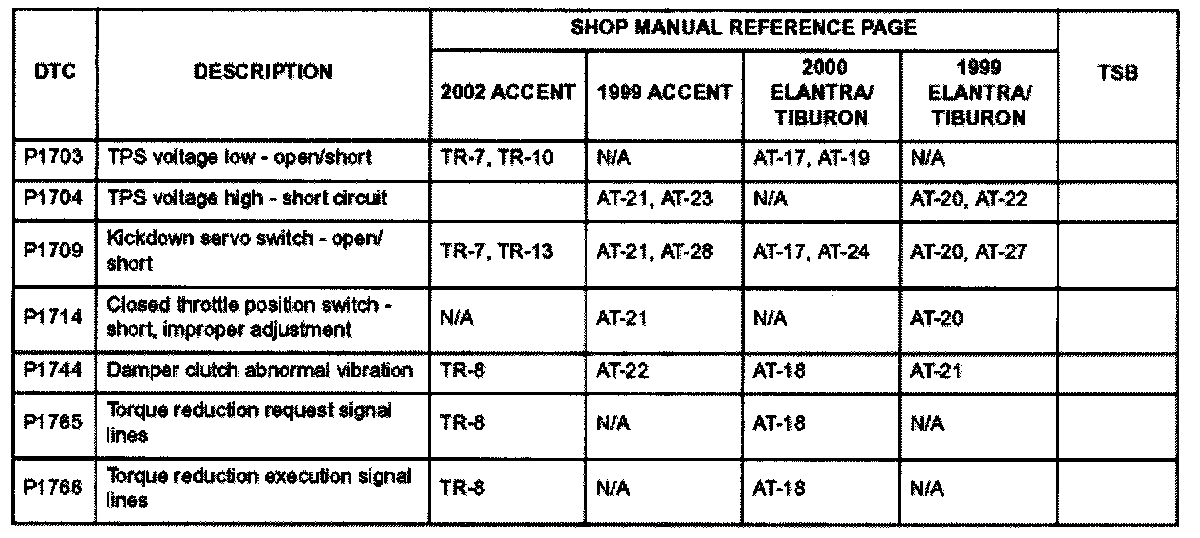

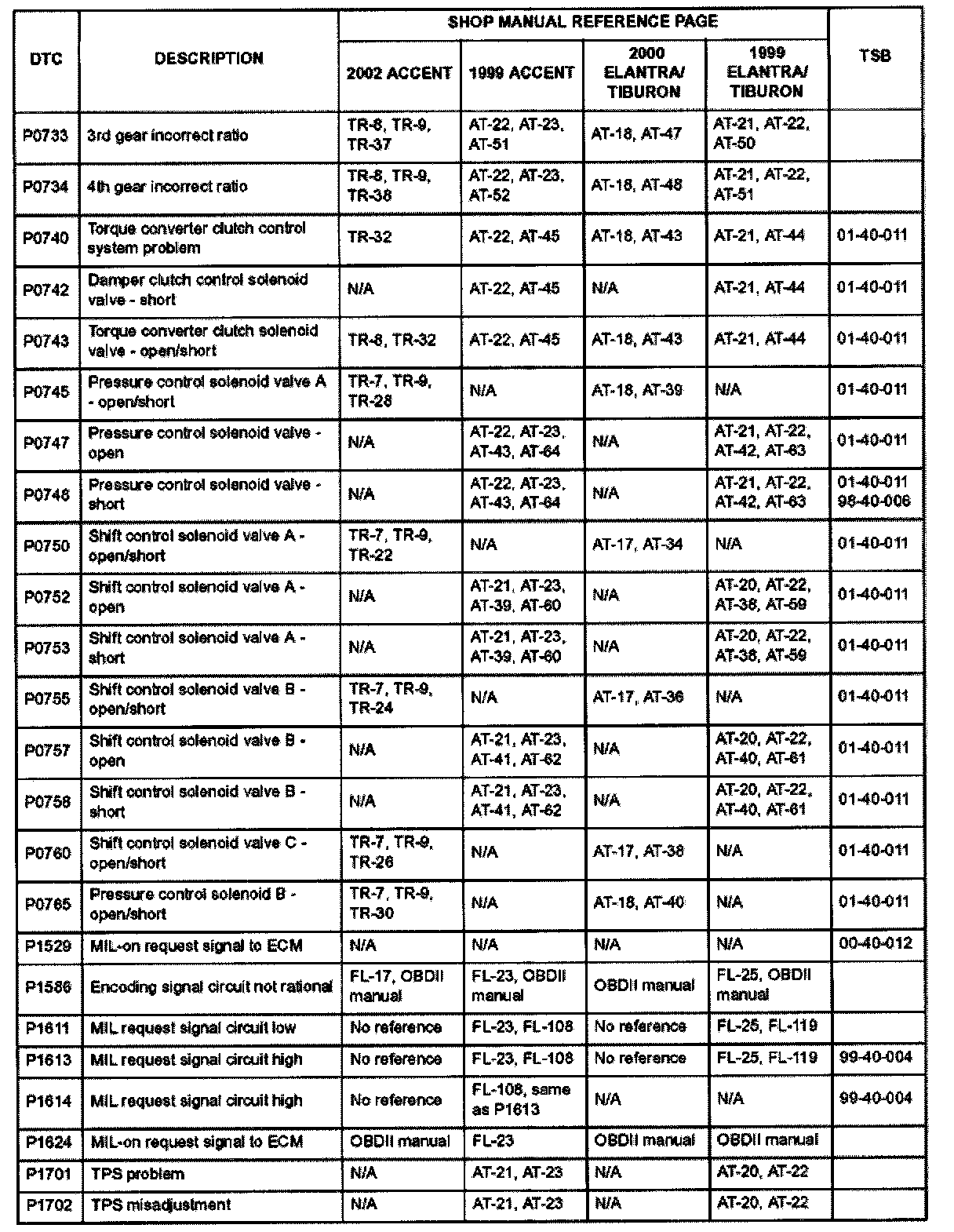

DTC information can be found in the shop manuals, TSBs and Engine Fault Code Diagnostic Manual (OBDII manual) shown.
