Idle Speed/Throttle Actuator - Electronic: Testing and Inspection

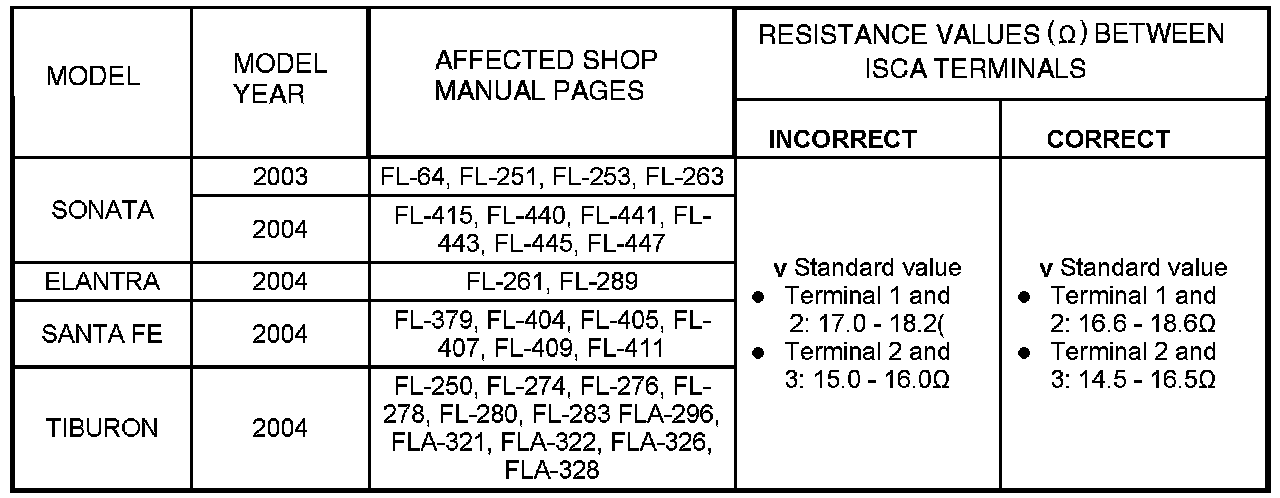

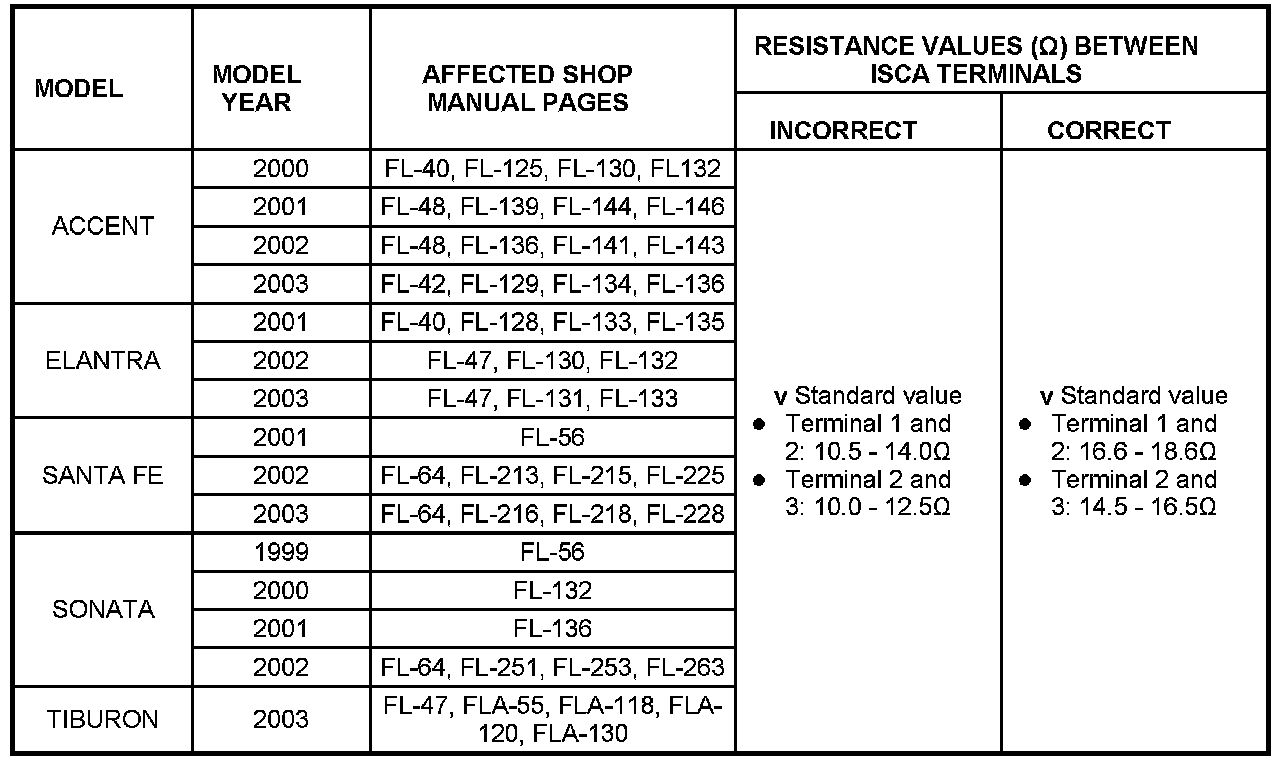

****Some values in these diagnostic procedures are incorrect, refer to the following 2 tables for updated values or to TSB - 03-36-024 for updated values****















IDLE SPEED CONTROL ACTUATOR (ISC ACTUATOR)
The idle speed actuator is a double coil type driven by separate driver stages in the ECM. Depending on the pulse duty factor, the equilibrium of the magnetic forces of the two coils will result in different angles of the motor. A bypass hose line is positioned, in parallel to the throttle valve where the idle speed actuator is inserted.

Circuit Diagram:

TROUBLESHOOTING HINTS
Open or short circuit is observed in idle air control system when ignition switch is turned on.

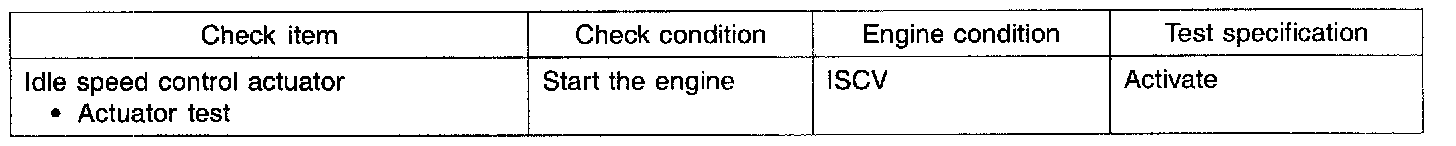

Using Hi-Scan:

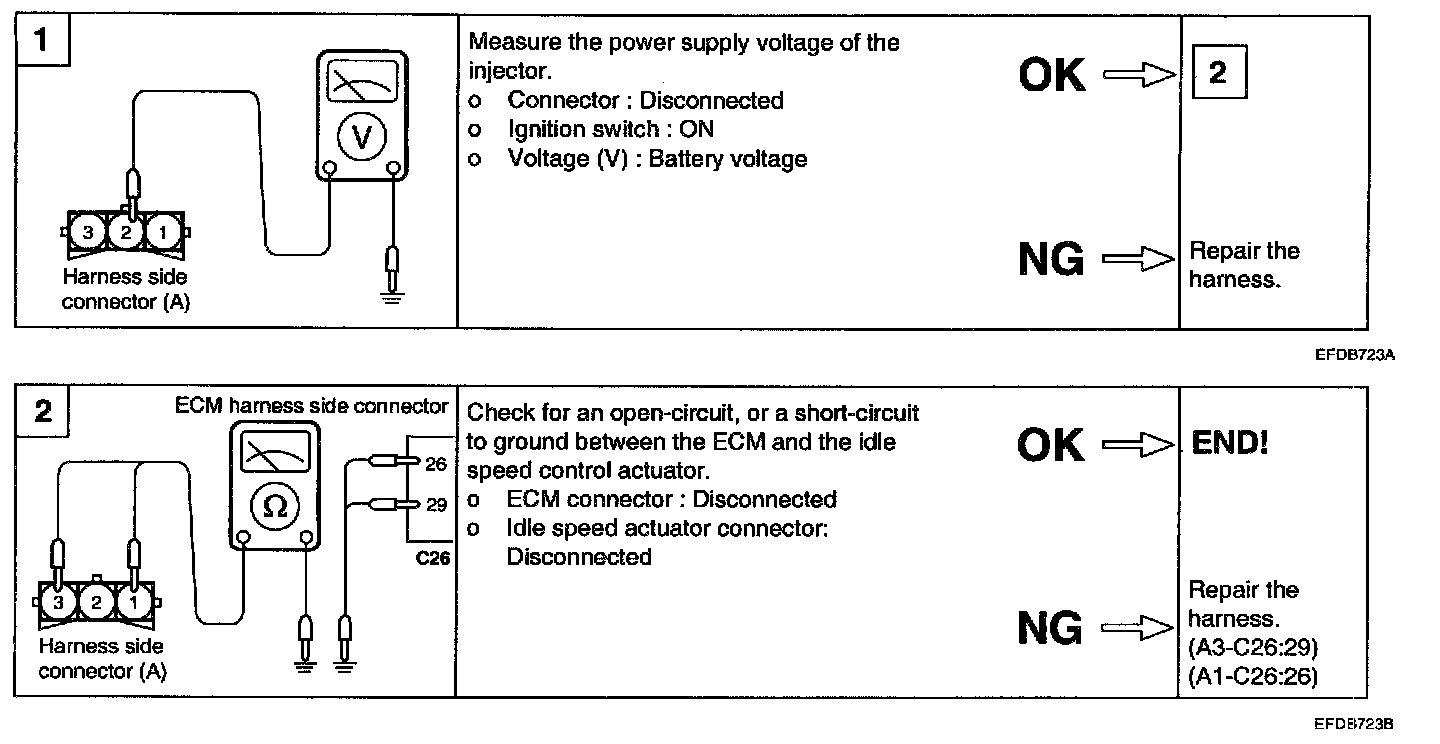

Harness Inspection Procedure:

ACTUATOR INSPECTION

RESISTANCE MEASUREMENT BETWEEN TERMINALS
1. Disconnect the connector at the idle speed control actuator.
2. Measure the resistance between terminals.
Standard value
Terminal 1 and 2 : 16.6-18.6 ohm
Terminal 2 and 3 : 14.5-16.5 ohm

3. Connect the connector to the idle speed control actuator.
