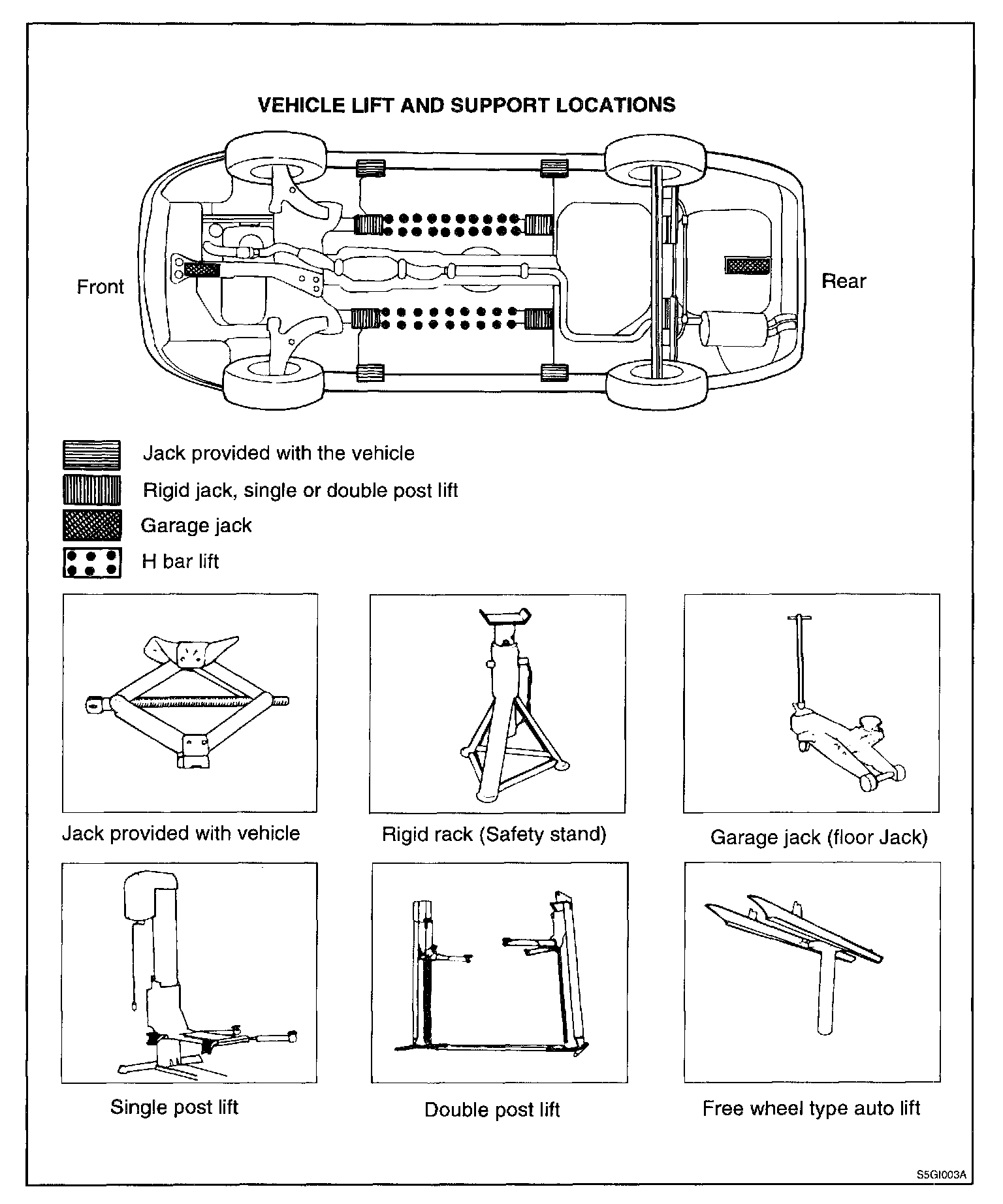

Vehicle Lifting: Locations

Jack Point:

CAUTION:
1. Never use a jack beneath the lateral rod or rear suspension assembly.
2. In order to prevent scratching the sub frame, place a piece of cloth on the jack's contact surface (to prevent corrosion caused by damage to the coating).
3. Never support vehicle with only a jack. Always use safety stands.
4. Do not attempt to raise one entire side Of the vehicle by placing a jack midway between the front and rear wheels. To do so could result in permanent damage to the body.
