Rear Wheel Alignment
REAR WHEEL ALIGNMENTTOE-IN
Standard value mm (inch): 3 ±2 (0.12 ±0.079)
NOTE: The rear suspension arm (B) mounting bolt should be turned an equal amount on both sides when adjusting.
Inside of the vehicle: toe-in
Outside of the vehicle: toe-out

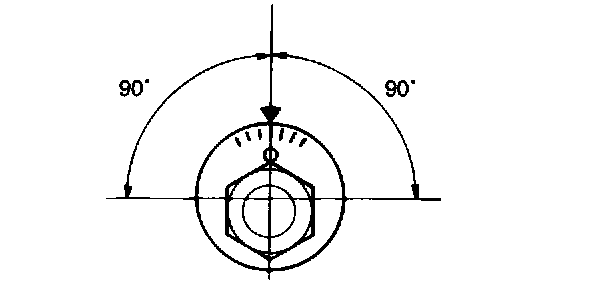

The scale has graduations of approximately 2.4 mm (0.09 inch) (single side toe angle equivalent to 14')
1 of 2
2 of 2

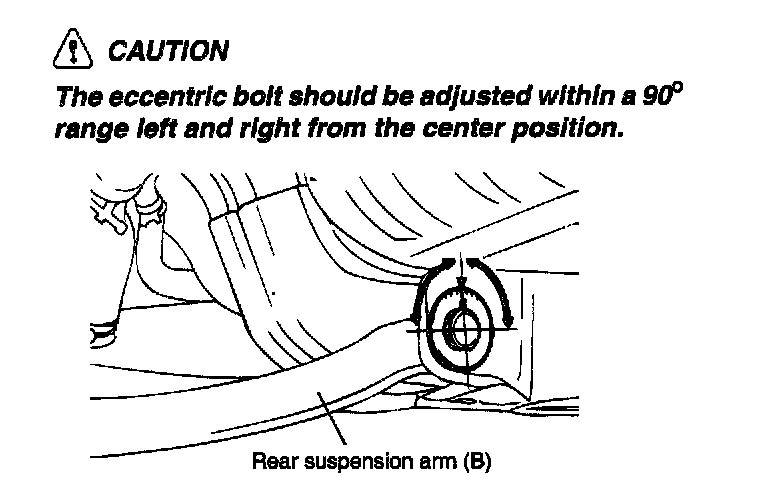

CAUTION: The eccentric bolt should be adjusted within a 90° range left and right from center position.
