C Connectors (Control Harness)

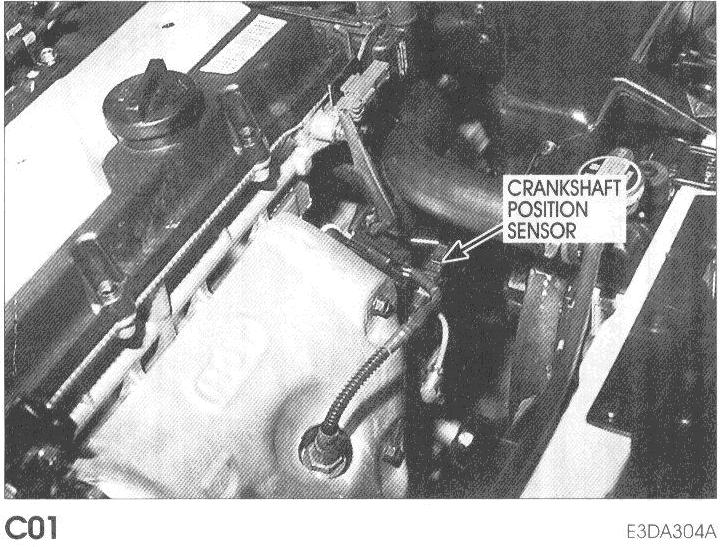

C01-Crankshaft Position Sensor:

C02-Oil Pressure Switch:

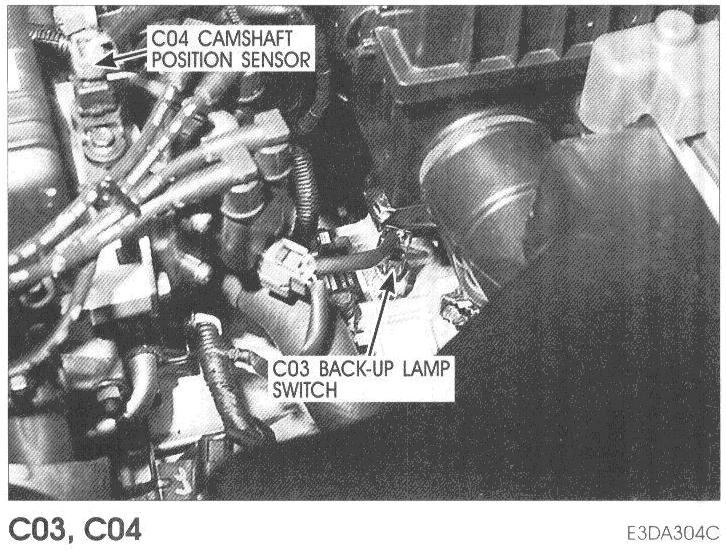

C03-Back-Up Lamp Switch, C04-Camshaft Position Sensor:

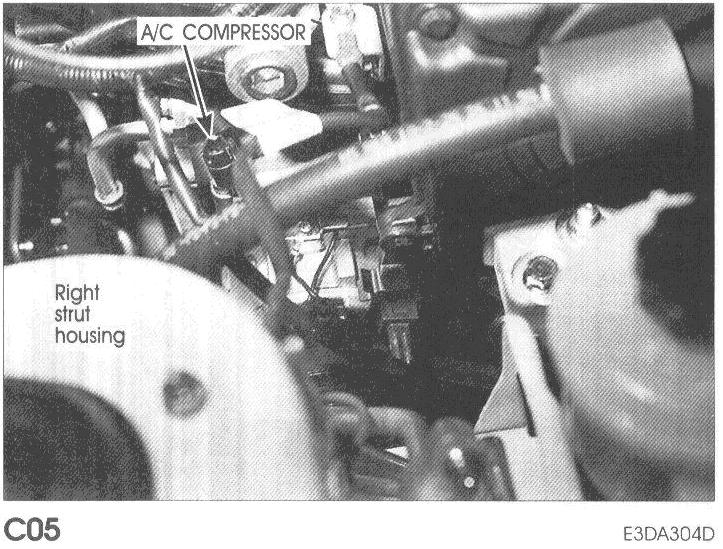

C05-A/C Compressor:

C06 Injector #1, C07 Injector #2, C16 MAP Sensor, C44 Injector #3, C45 Injector #4:

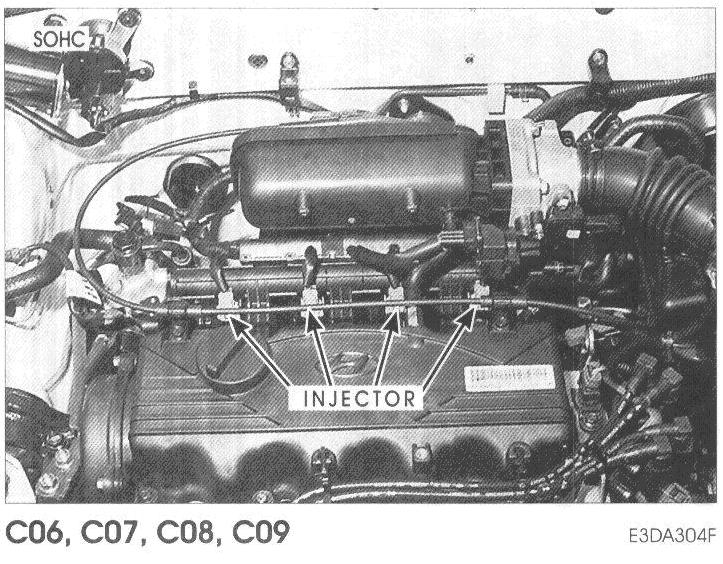

C06,C07,C08,C09-Injector:

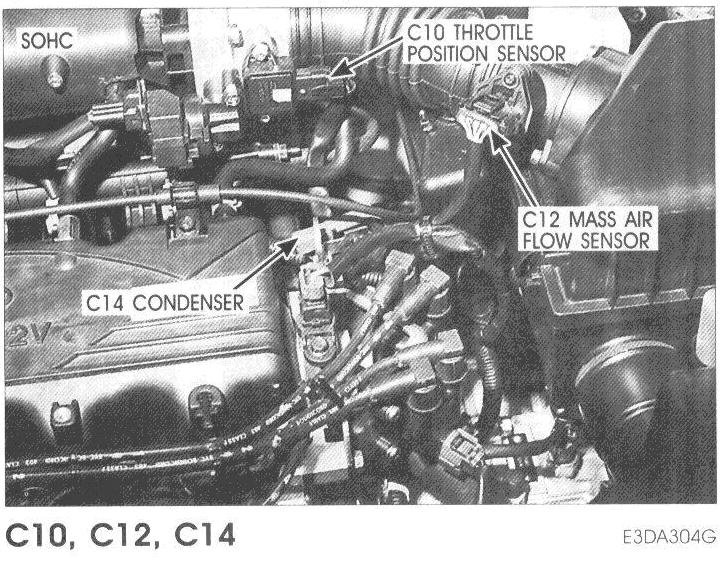

C10-Throttle Position Sensor, C12-Mass Air Flow Sensor, C14-Condenser:

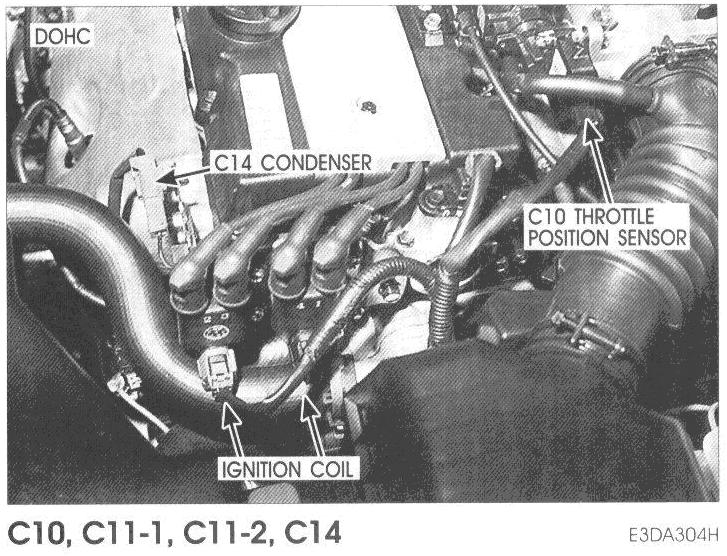

C10-Throttle Position Sensor, C11-1,C11-2 - Ignition Coil, C14-Condenser:

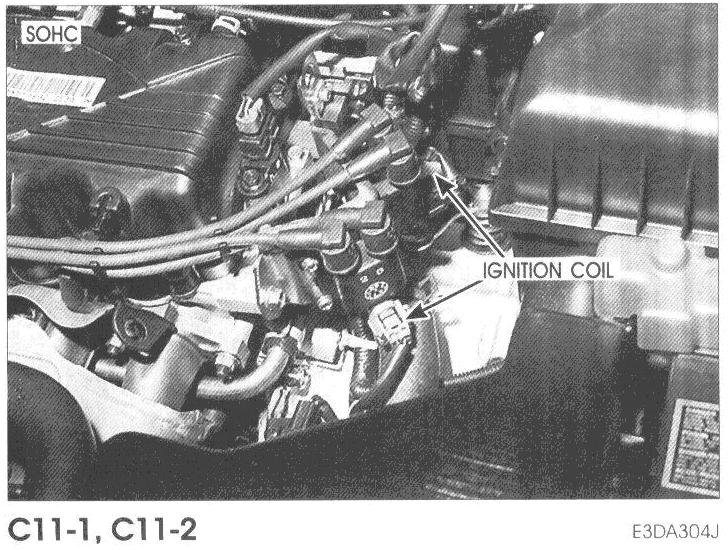

C11-1,C11-2 - Ignition Coil:

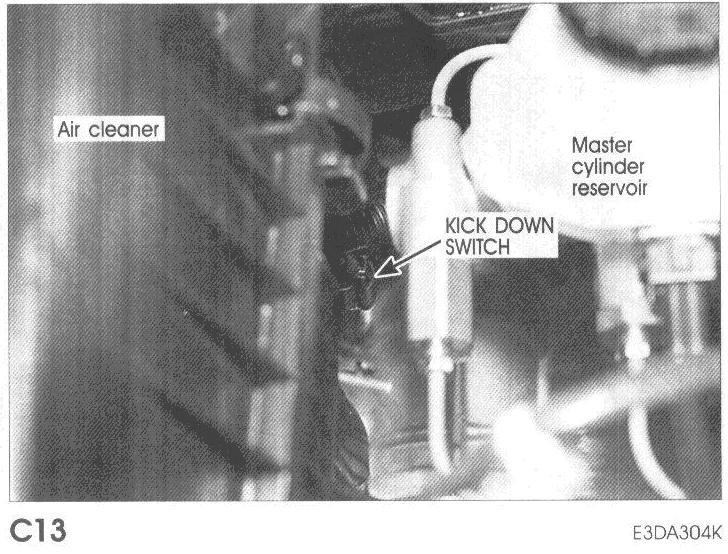

C13-Kick Down Switch:

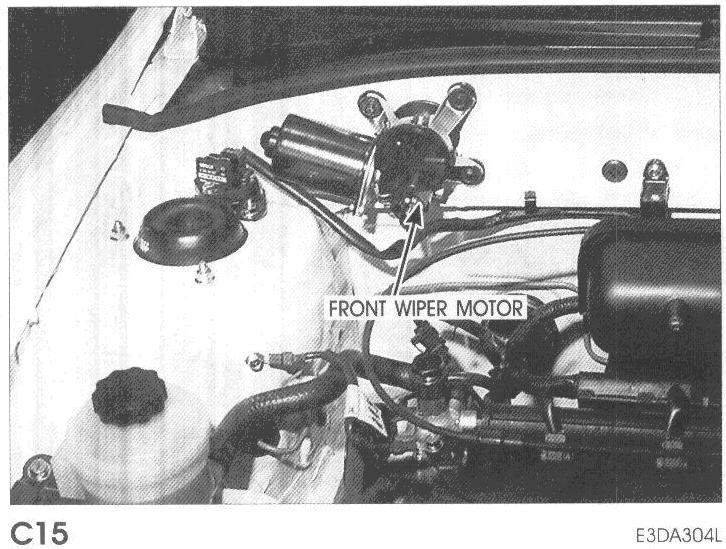

C15-Front Wiper Motor:

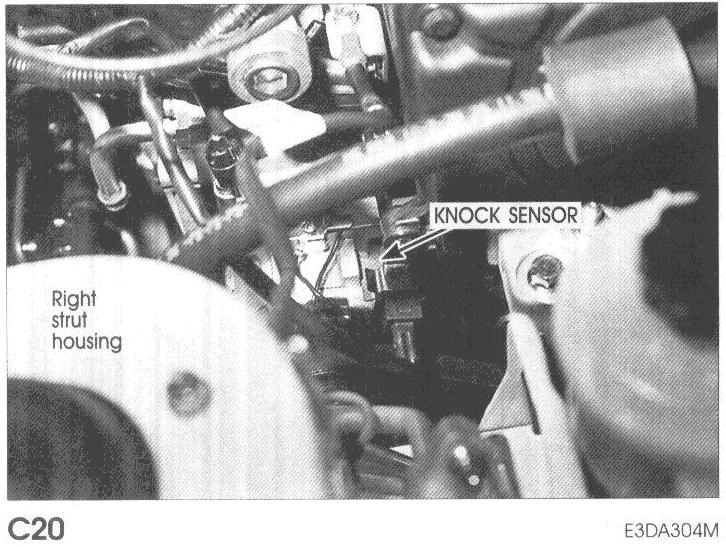

C20-Knock Sensor:

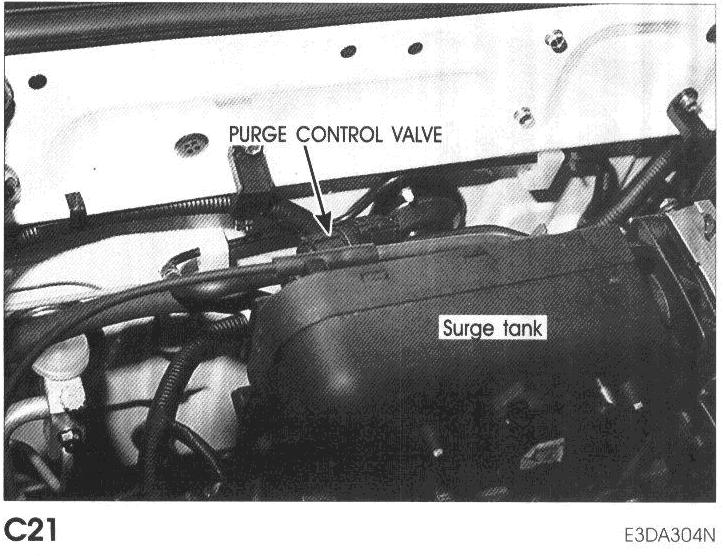

C21-Purge Control Valve:

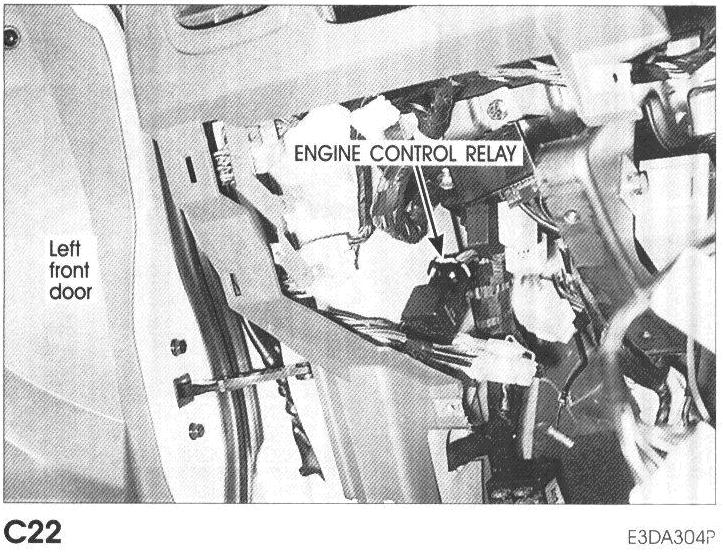

C22-Engine Control Relay:

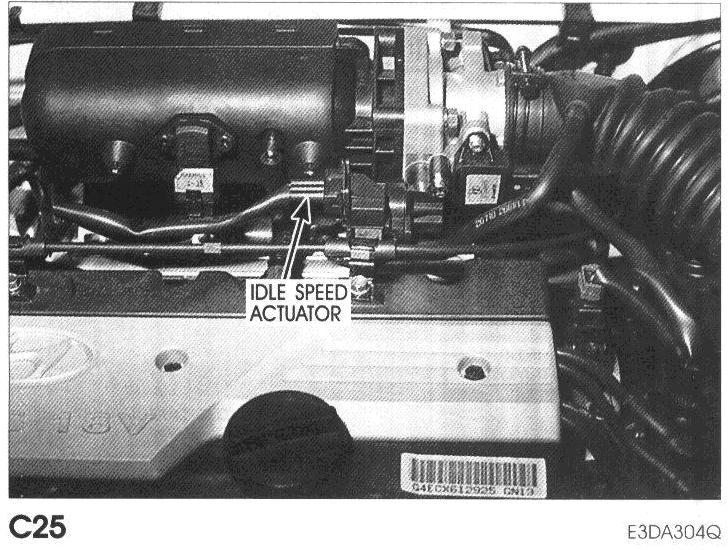

C25-Idle Speed Actuator:

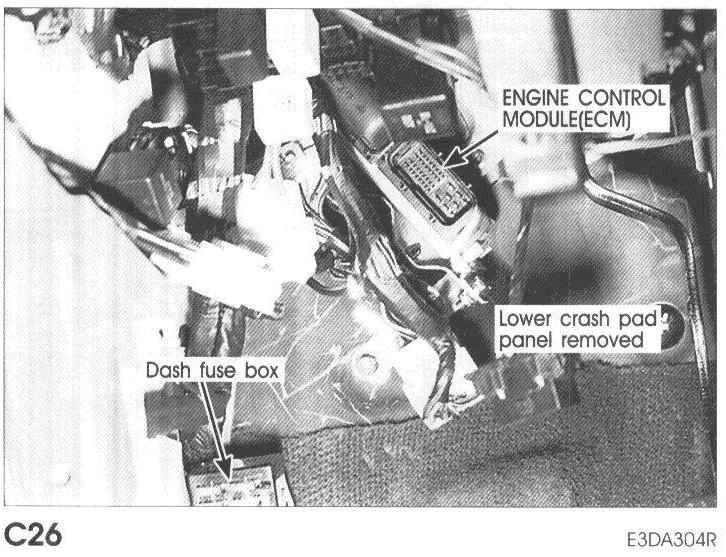

C26-Engine Control Module:

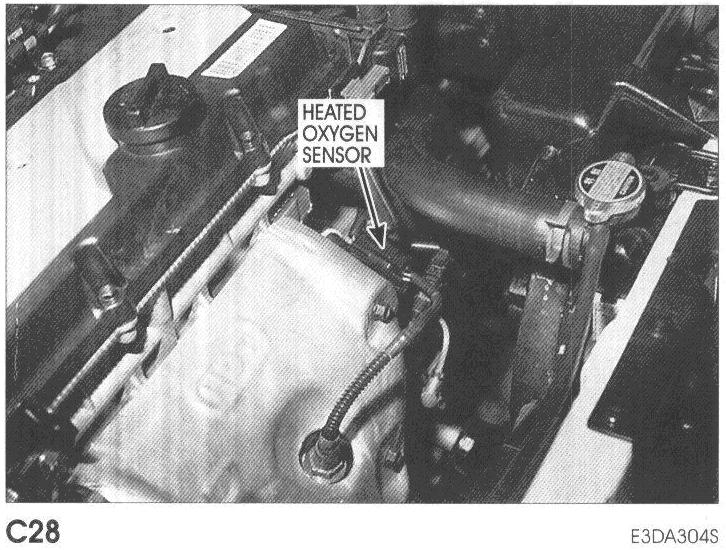

C28-Heated Oxygen Sensor:

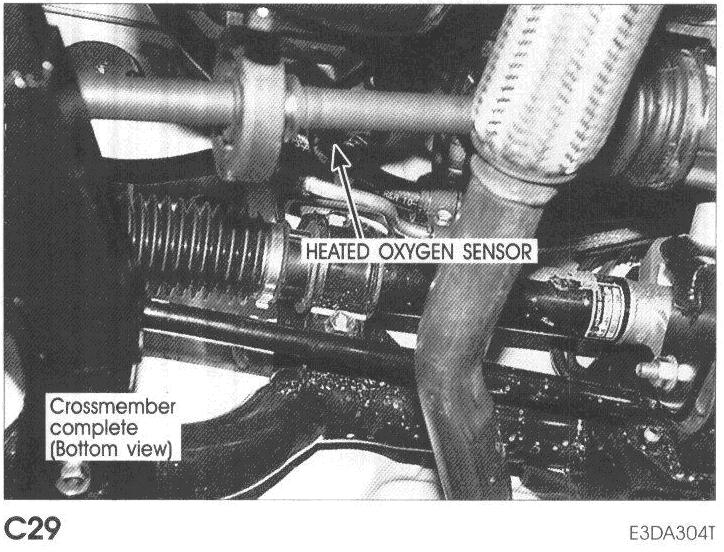

C29-Heated Oxygen Sensor:

C30-Acceleration Sensor:

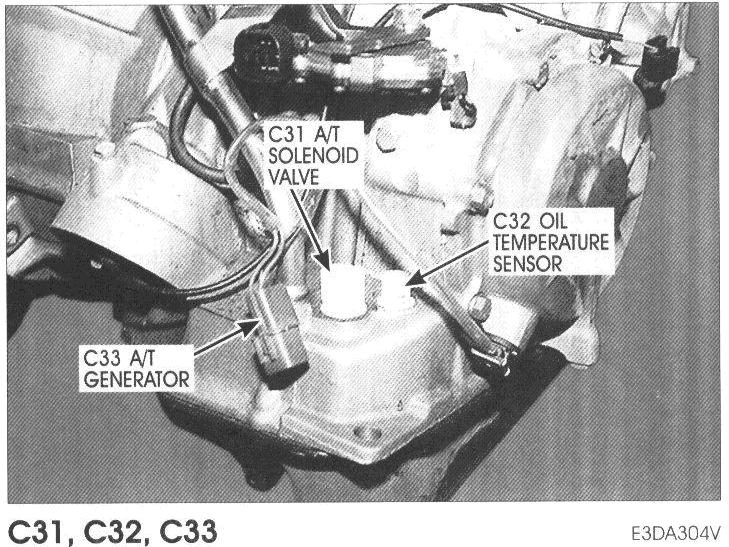

C31-A/T Solenoid Valve, C32-Oil Temperature Sensor, C33-A/T Generator:

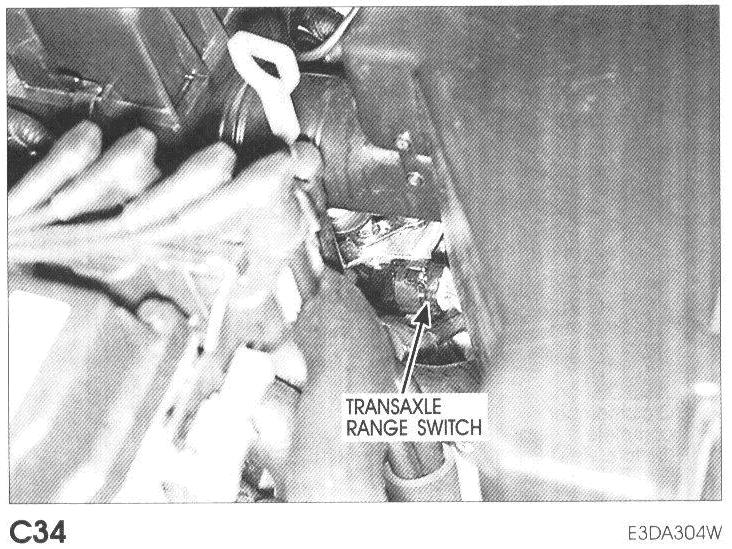

C34 Transaxle Range Switch:

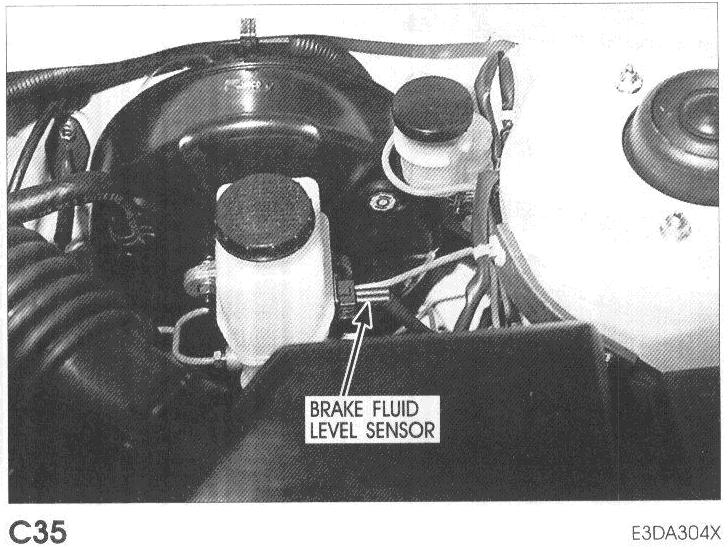

C35-Brake Fluid Level Sensor:

C36-Engine Coolant Temperature Sensor And Sender:

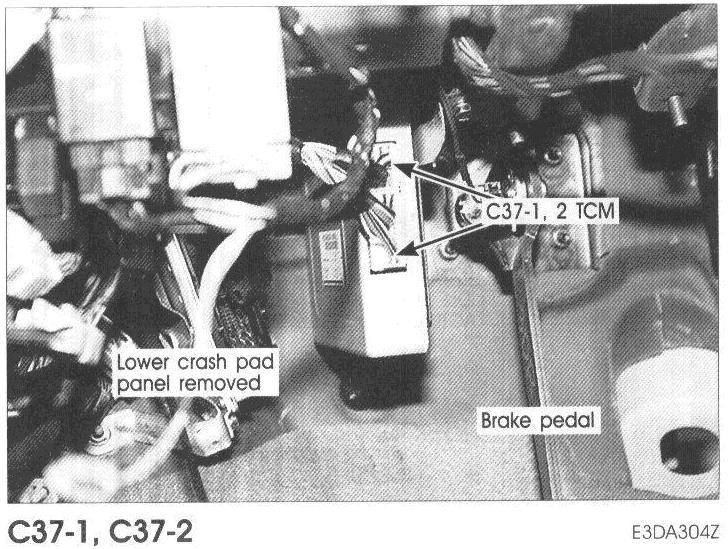

C37-1,C37-2 - TCM:
