Home >> Hyundai >> 2002 >> Accent GL Hatchback L4-1.6L >> Repair and Diagnosis >> Lighting and Horns >> Trunk Lamp >> Diagrams >> Electrical Diagrams

Electrical Diagrams

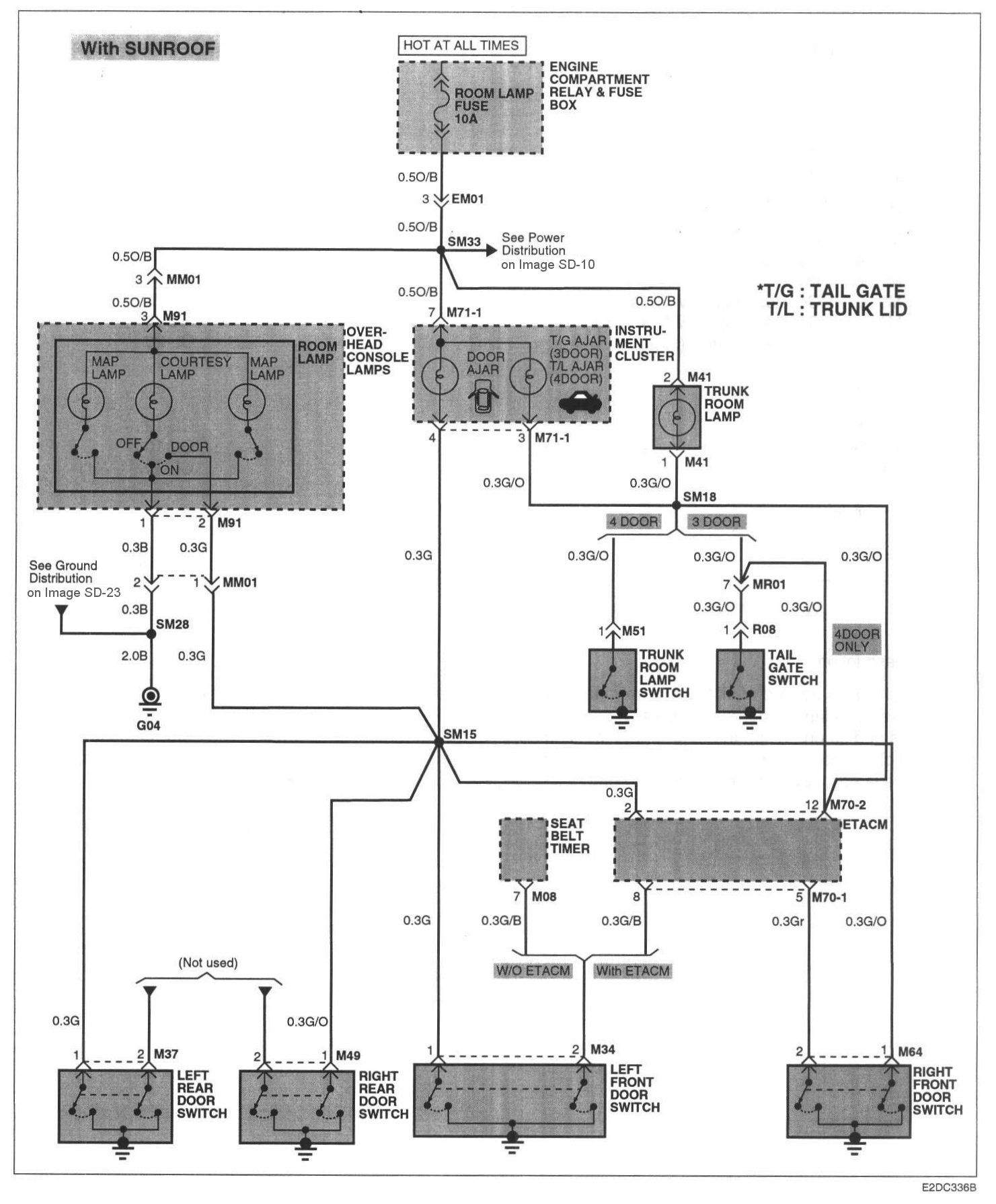

Image SD-128 Courtesy And Trunk Lamps (1):



Image SD-129 Courtesy And Trunk Lamps (2):
