Tail Lamp: Service and Repair

TAIL, PARKING AND LICENSE LAMPS

COMBINATION LAMP

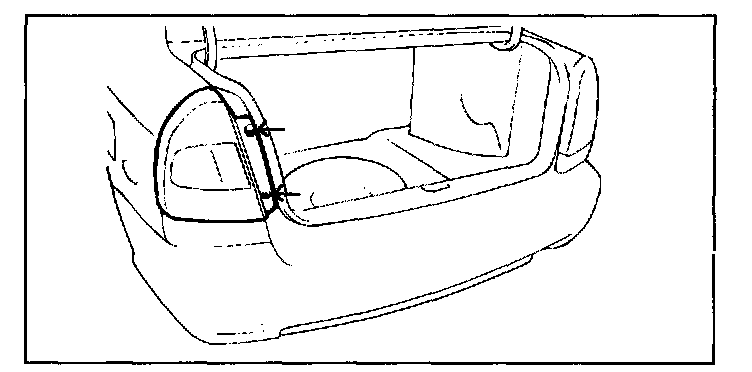

REAR COMBINATION LAMP
1. Disconnect the negative battery terminal.
2. Open the trunk lid and loosen the rear combination lamp mounting screws.
3. Disconnect the connector and remove the lamp assembly.
4. Installation is the reverse of removal.
