Home >> Hyundai >> 2002 >> Accent GL Hatchback L4-1.6L >> Repair and Diagnosis >> Lighting and Horns >> Tail Lamp >> Diagrams >> Electrical Diagrams

Electrical Diagrams

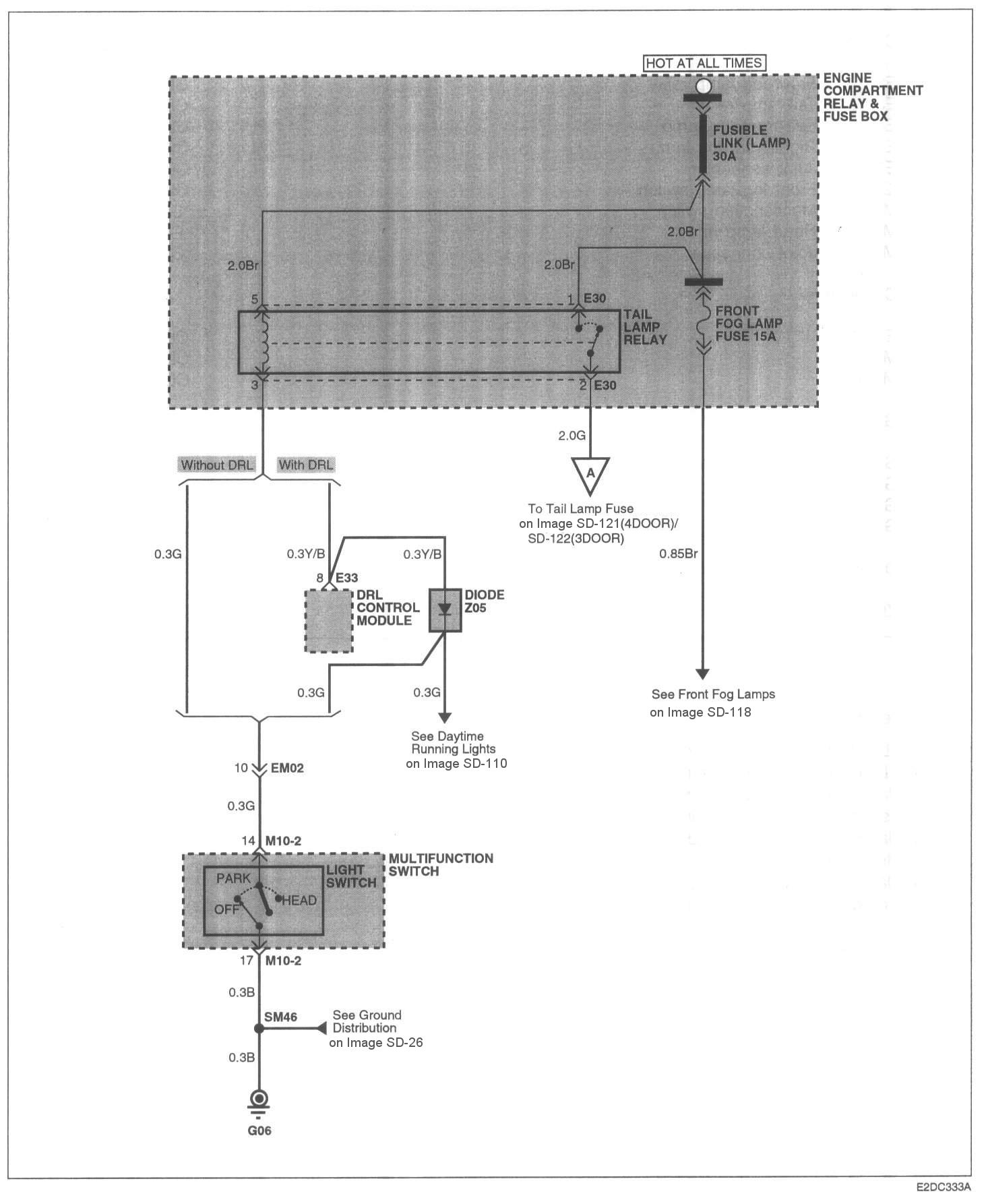

Image SD-120 Tail, Parking And License Lamps (1):

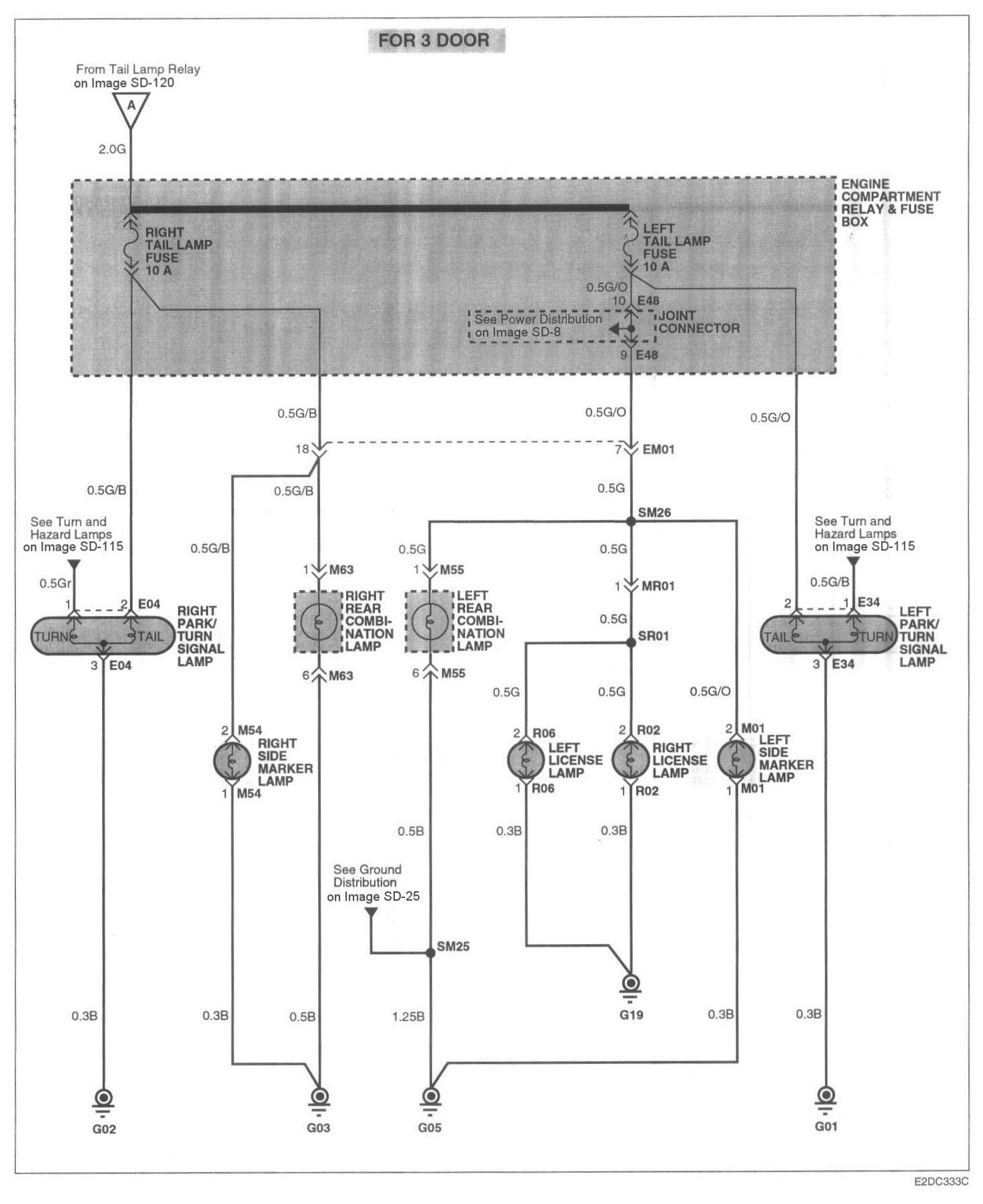

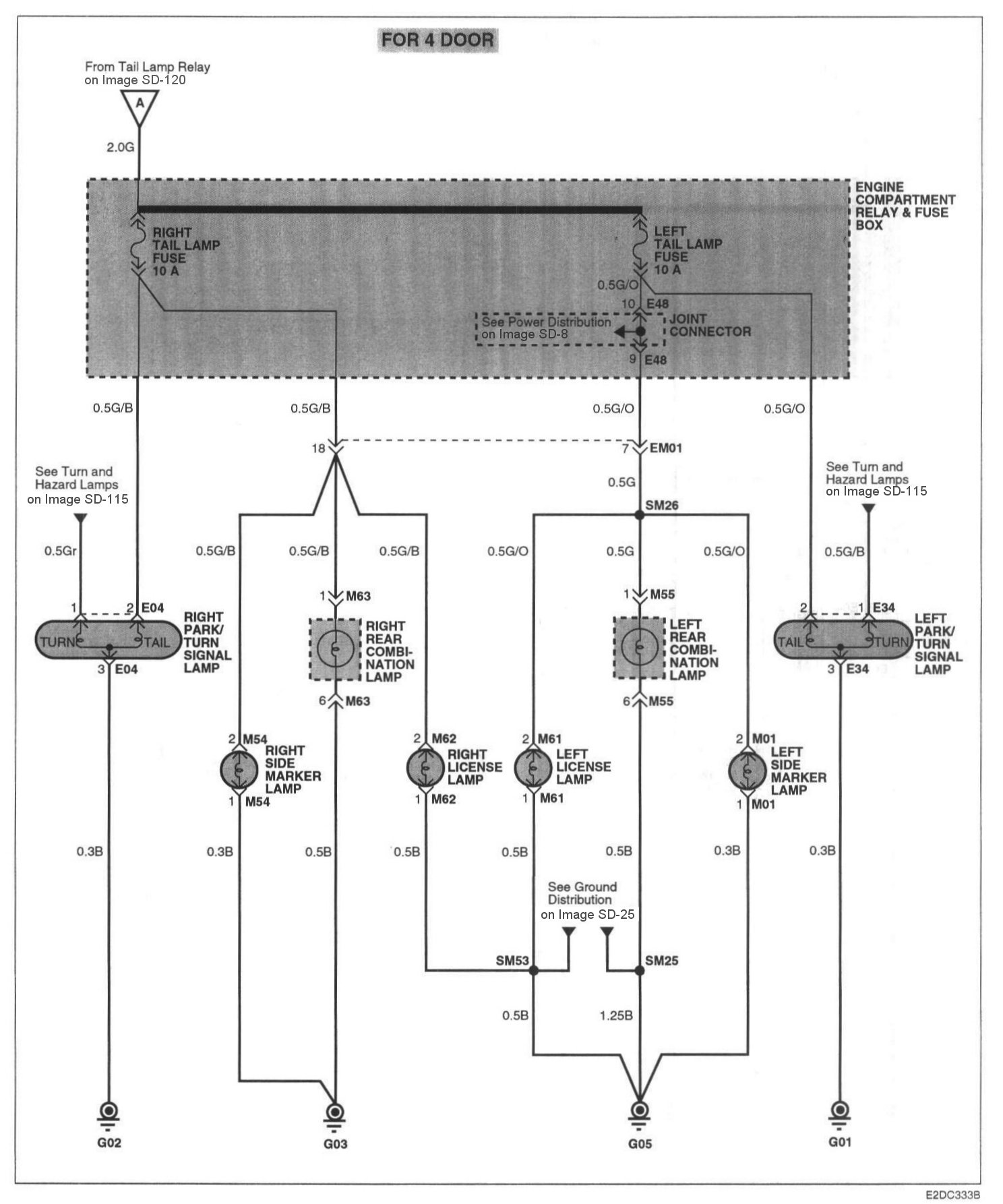

Image SD-121 Tail, Parking And License Lamps (2):



Image SD-122 Tail, Parking And License Lamps (3):
