Fog/Driving Lamp Switch: Testing and Inspection

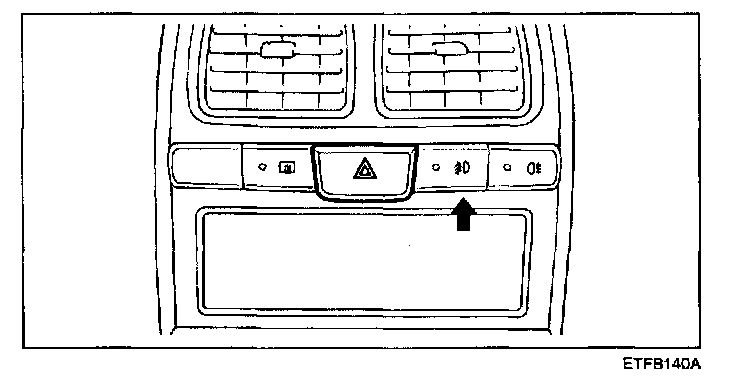

FRONT FOG LAMP SWITCH




1. Disconnect the negative (-) battery terminal.
2. Remove the heater control panel.
3. Disconnect the connector from the heater control panel.

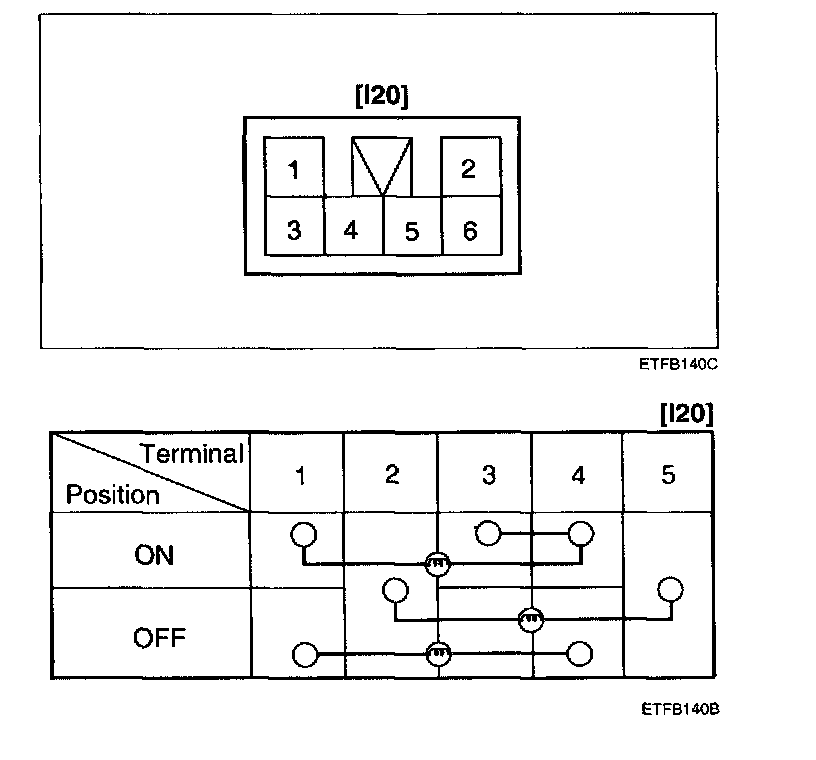

4. Operate the switch and check for continuity between terminals by using an ohmmeter.
