Combination Switch: Testing and Inspection
MULTIFUNCTION SWITCHINSPECTION
With the multifunction switch in each position, make sure that continuity exists between the terminals. If continuity is not as specified, replace the multifunction switch.

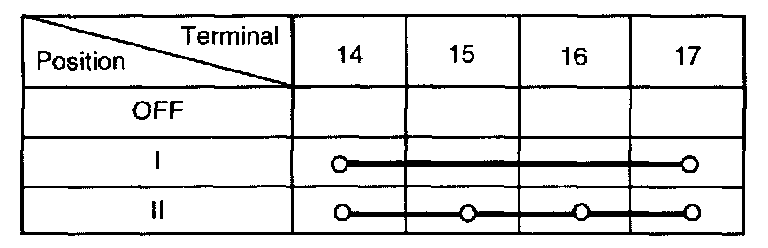

Lighting Switch [M01 - 1]:

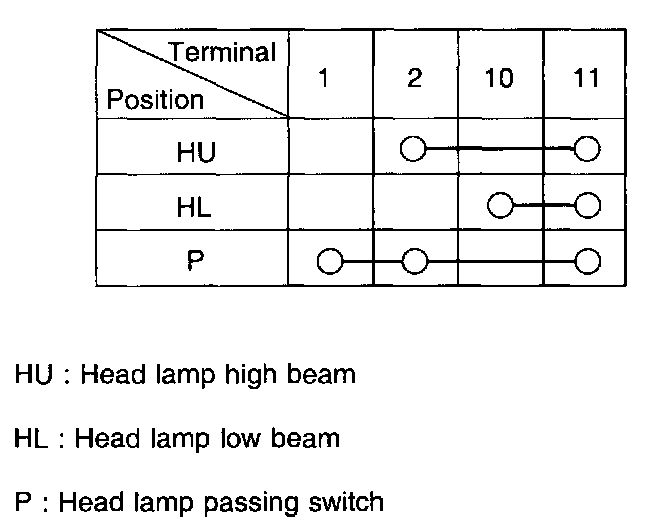

Dimmer And Passing Switch (Connector No.: M 10-2):

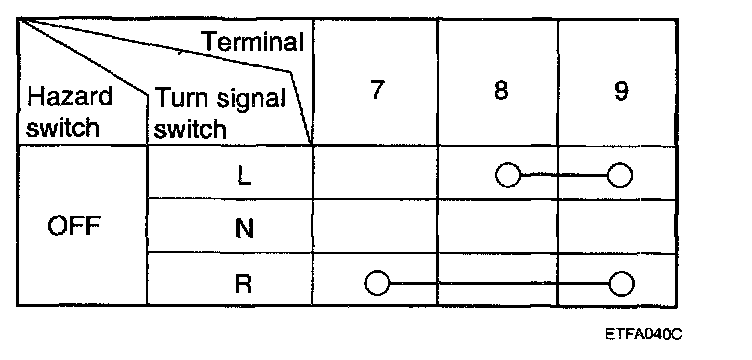

Turn Signal Switch (Connector No. : M10-2):

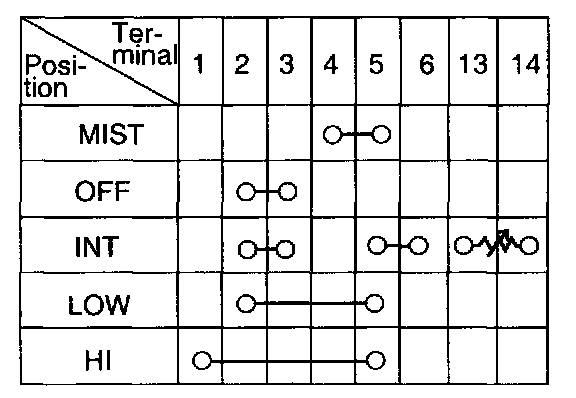

Wiper Switch (Connector No.: M 10-1):
Washer Switch (Connector No. : M10-1):
