Headlamp: Service and Repair

HEAD LAMP/TURN SIGNAL LAMP




1. Disconnect the negative battery terminal.

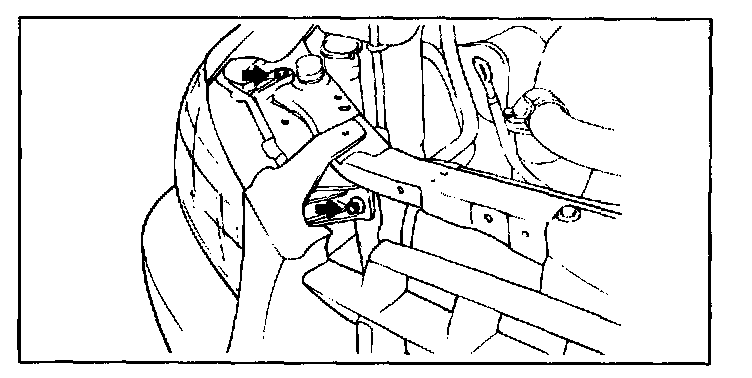

2. Remove the retainer in the bumper cover.

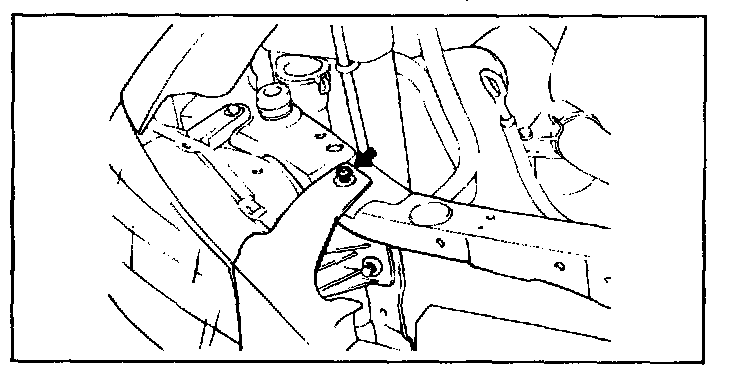

3. Remove the head lamp mounting bolts and remove the head lamp assembly.
4. Installation is the reverse of removal.
