Headlamp: Adjustments

HEADLAMP AIMING INSTRUCTIONS
The headlamps should be aimed with the proper beam-setting equipment, and in accordance with the equipment manufacturer's instructions.

NOTE: If there are any regulations pertaining to the aiming of headlamps in the area where the vehicle is to be used, adjust so as to meet those requirements.

Alternately, turn the adjusting bolts to adjust the headlamp aiming. If beam-setting equipment is not available, proceed as follows:
1. Inflate the tires to the specified pressure and remove all heavy loads from the vehicle, except a driver, spare tire, tool.
2. The vehicle should be placed on a flat surface.

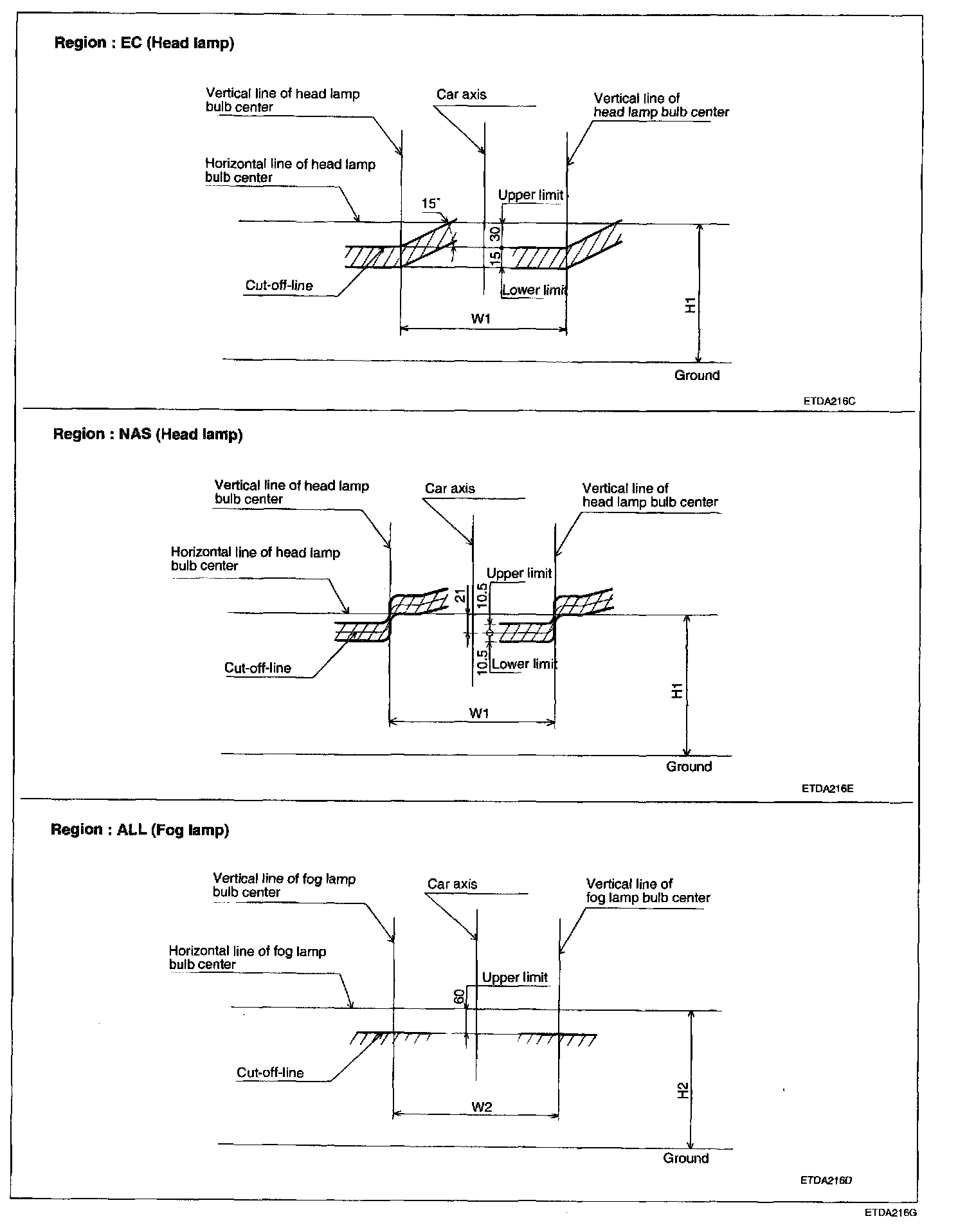

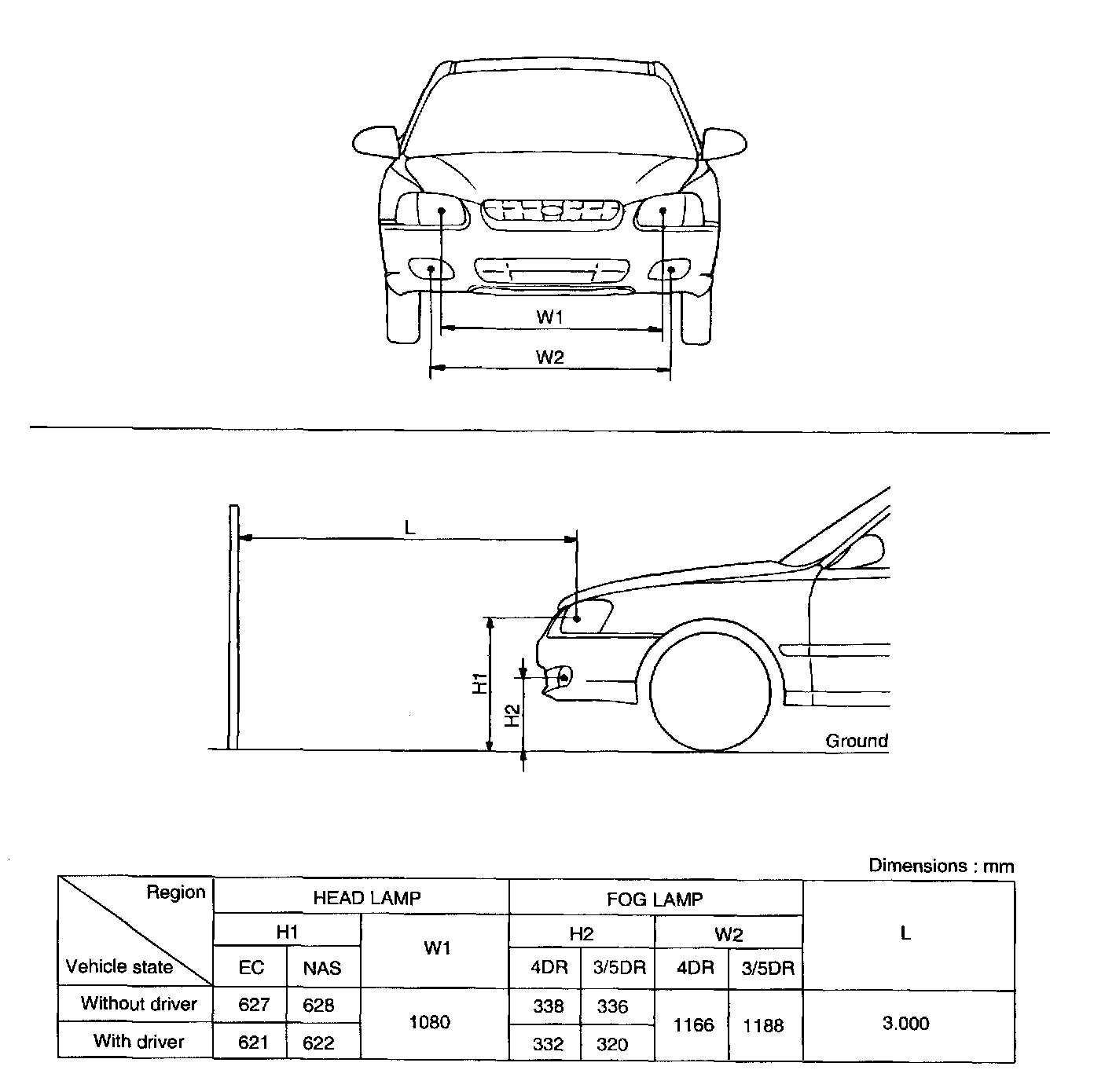

3. Draw vertical lines (vertical lines passing through respective headlamp centers) and a horizontal line (horizontal line passing through center of headlamps) on a screen.
4. With the headlamps and battery in normal condition, aim the headlamps. Make a vertical and horizontal adjustment of the lower beam to the standard values by using the adjusting knobs.
