Home >> Hyundai >> 2002 >> Accent GL Hatchback L4-1.6L >> Repair and Diagnosis >> Lighting and Horns >> Daytime Running Lamp >> Diagrams >> Electrical Diagrams

Electrical Diagrams

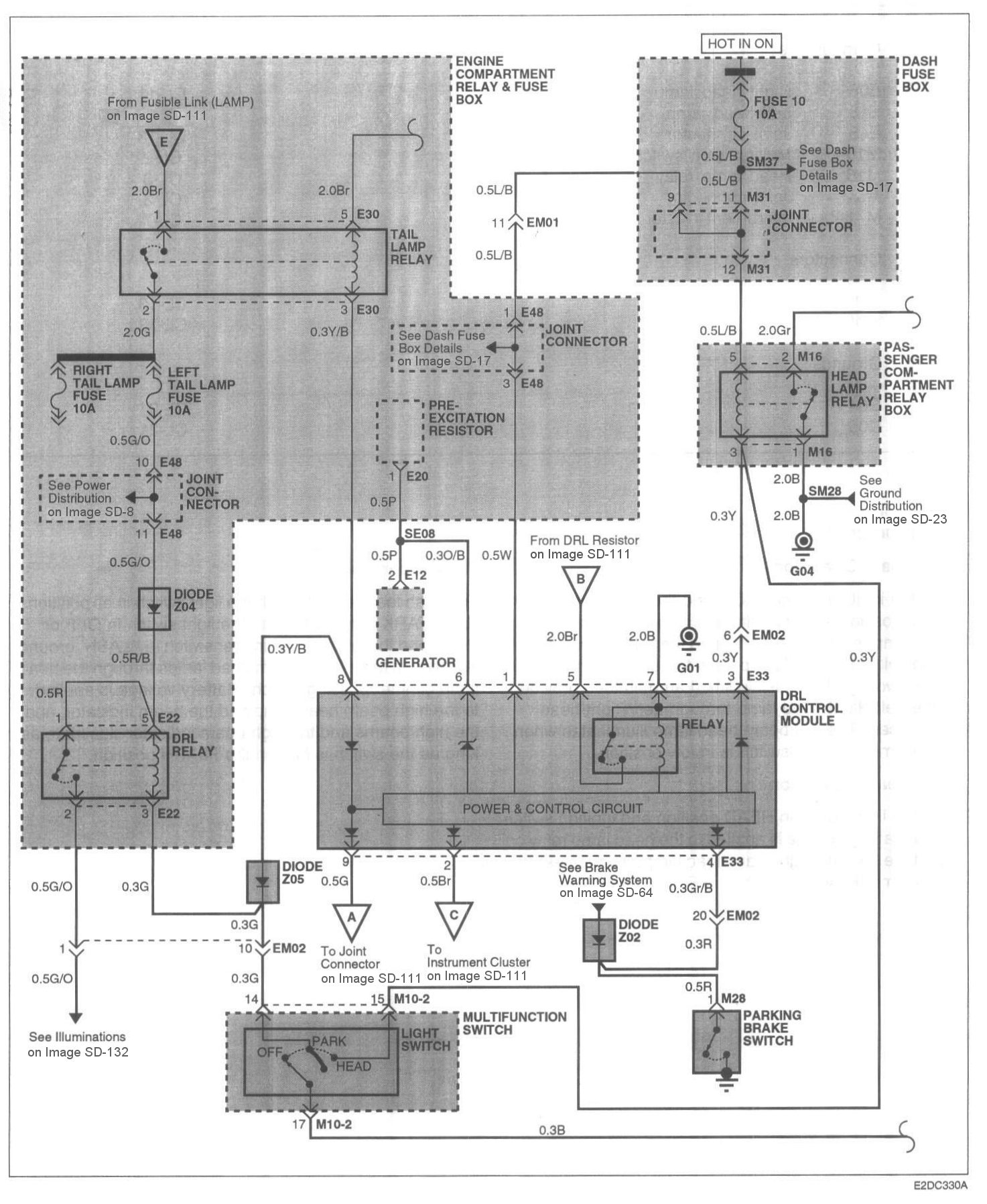

Image SD-110 Daytime Running Lights (1):

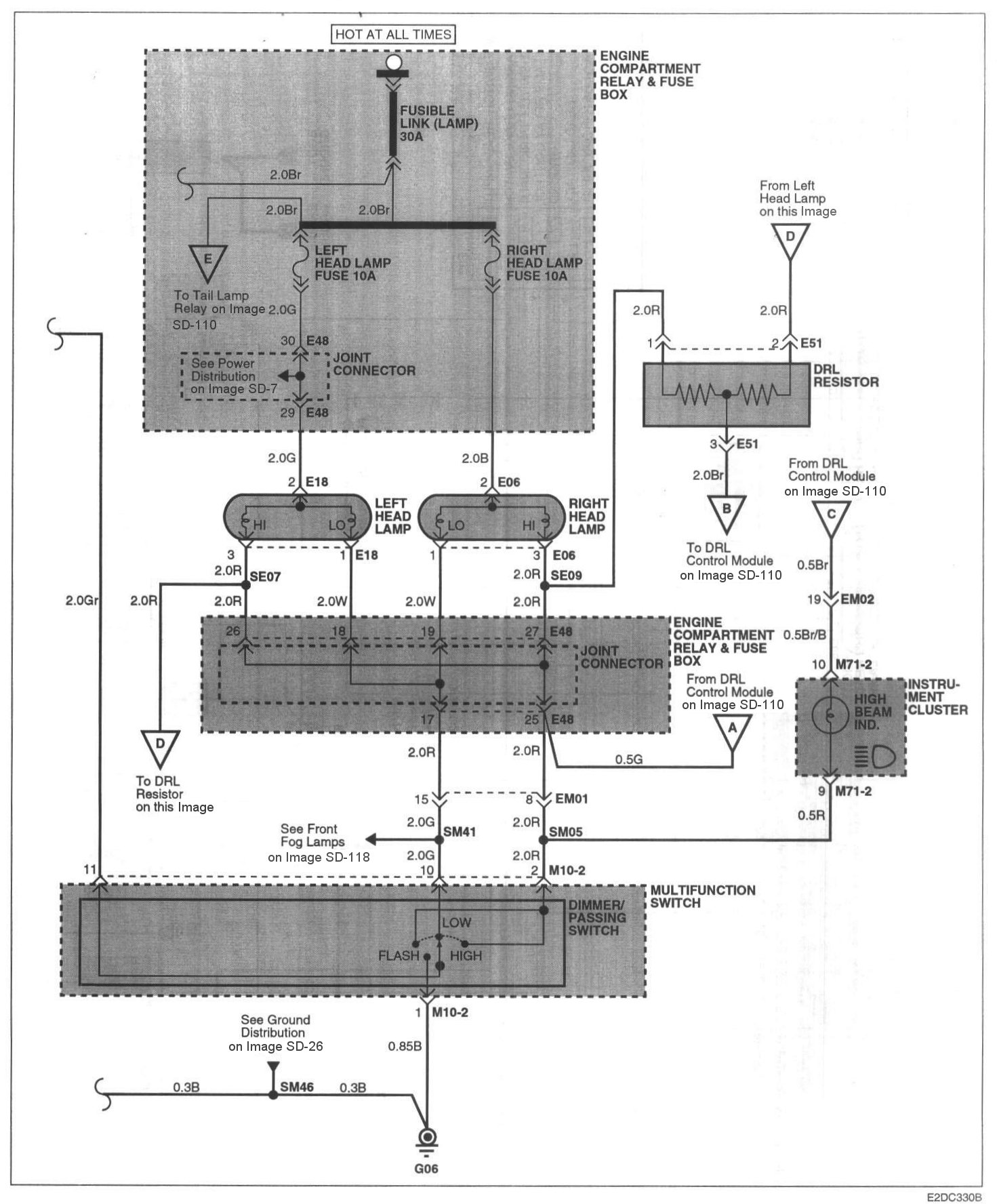

Image SD-111 Daytime Running Lights (2):



Image SD-112 Daytime Running Lights (3):
