Hyundai
>>
2002
>>
Accent GL Hatchback L4-1.6L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Backup Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

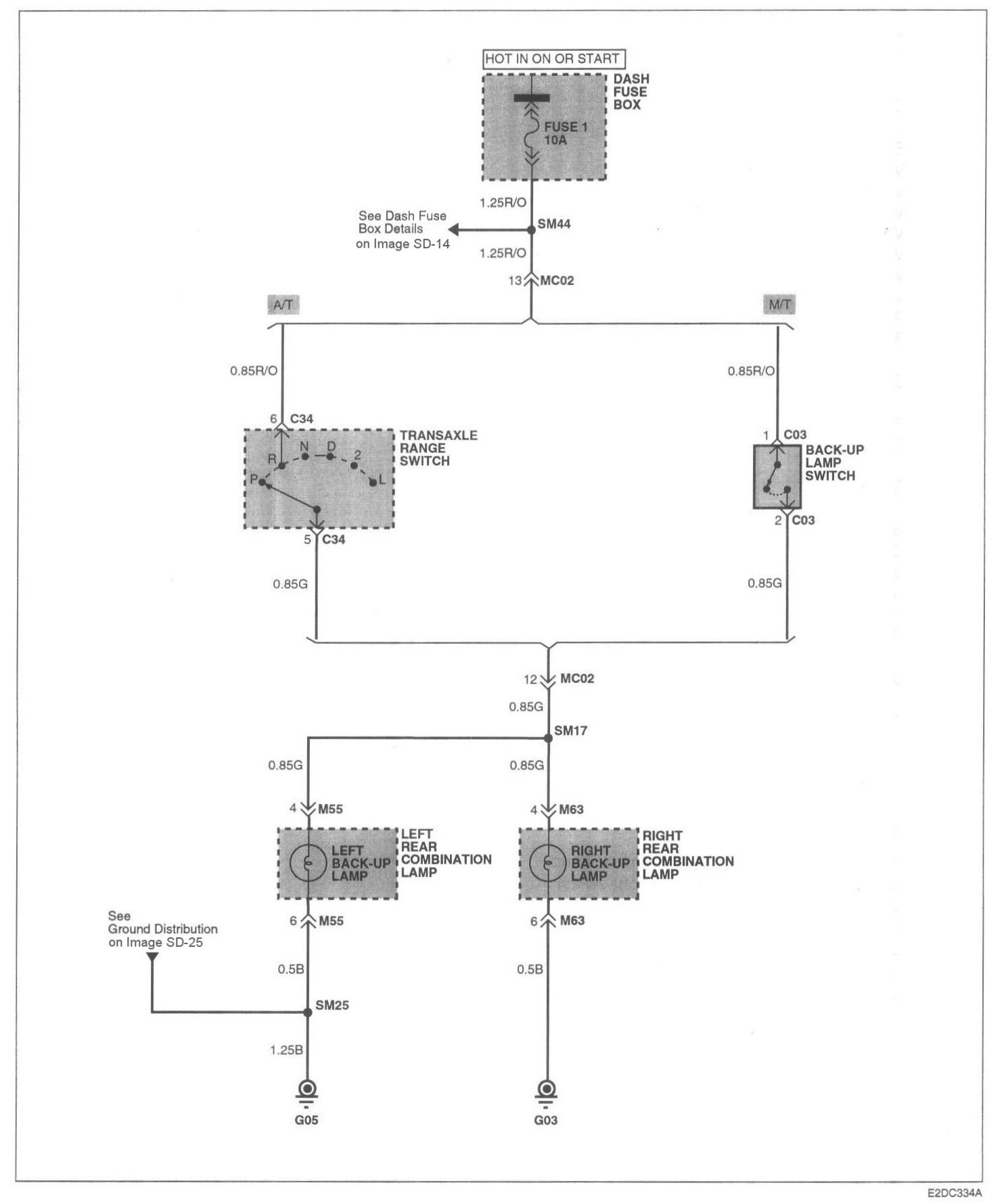

Image SD-124 Back-up Lamps (1):
