Instrument Cluster / Carrier: Service and Repair

Instrument Cluster:

REMOVAL AND INSTALLATION




1. Disconnect the negative battery terminal.

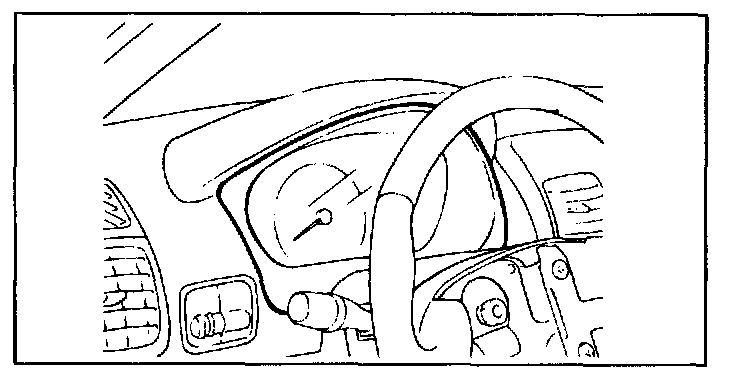

2. Remove the cluster facia.

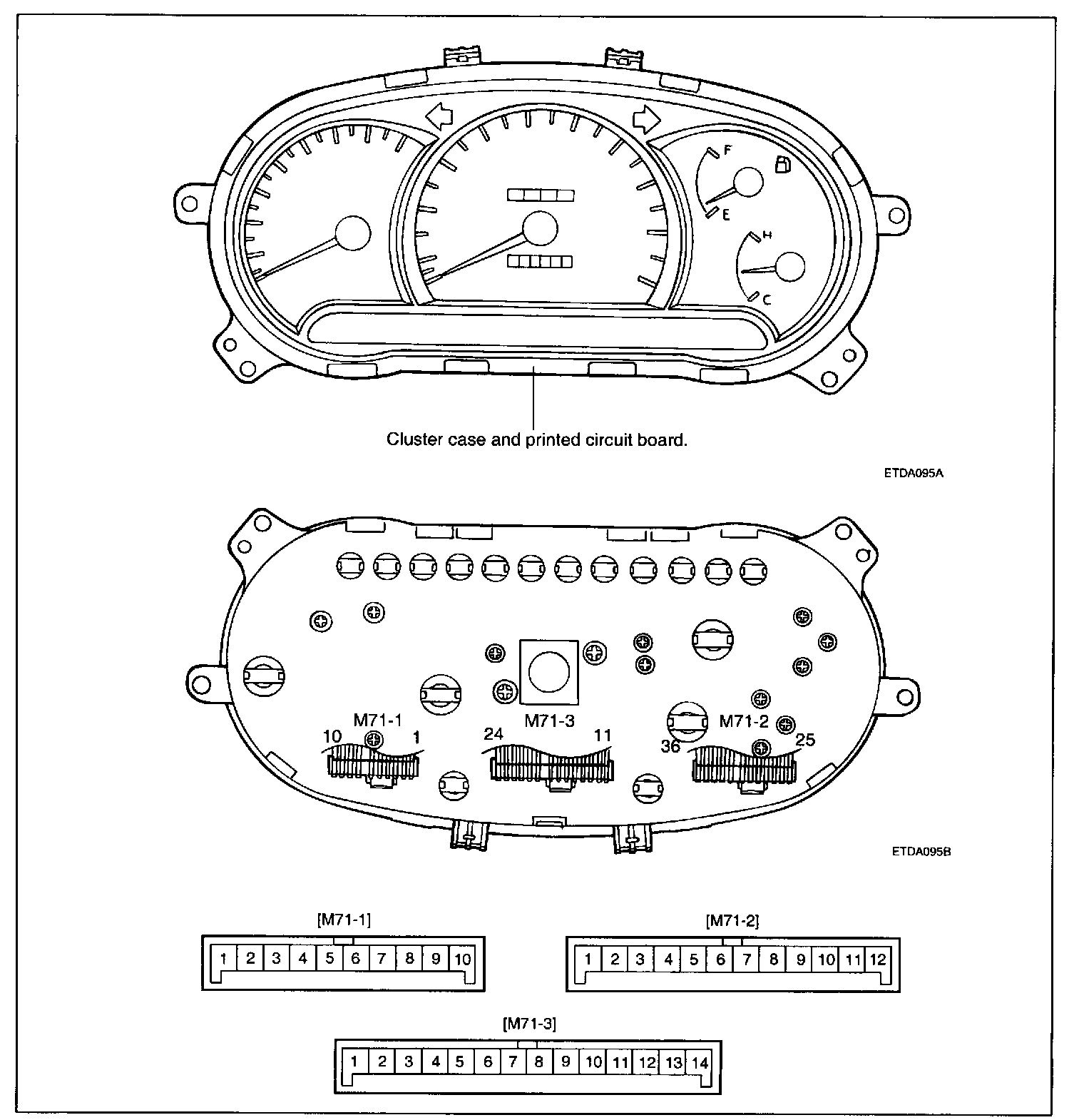

3. Remove the cluster mounting screws and instrument cluster.
4. Installation is the reverse of removal.
