Home >> Hyundai >> 2002 >> Accent GL Hatchback L4-1.6L >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Procedures >> Compressor and Condenser Fan Do Not Run

Compressor and Condenser Fan Do Not Run

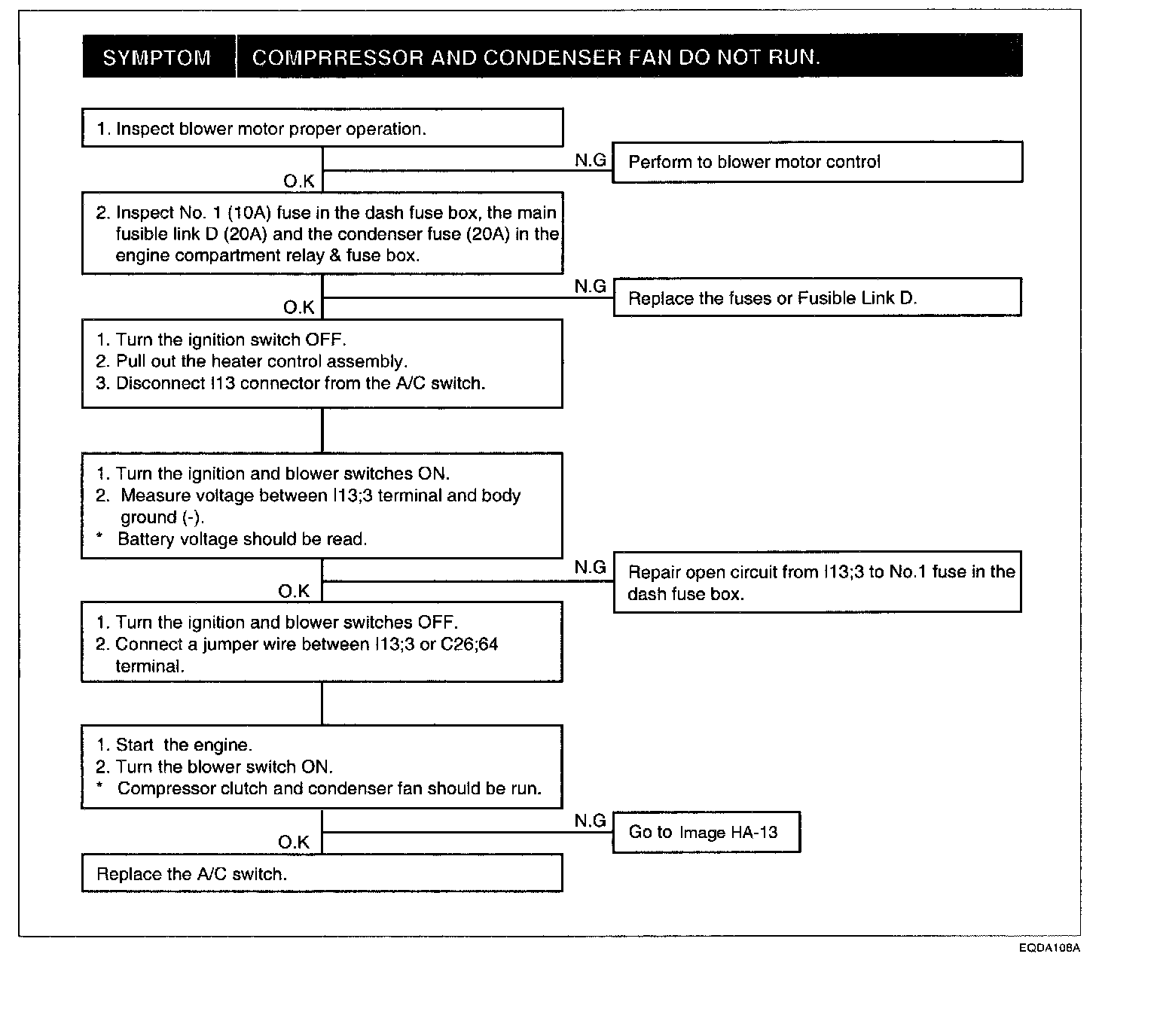

Image HA-12:

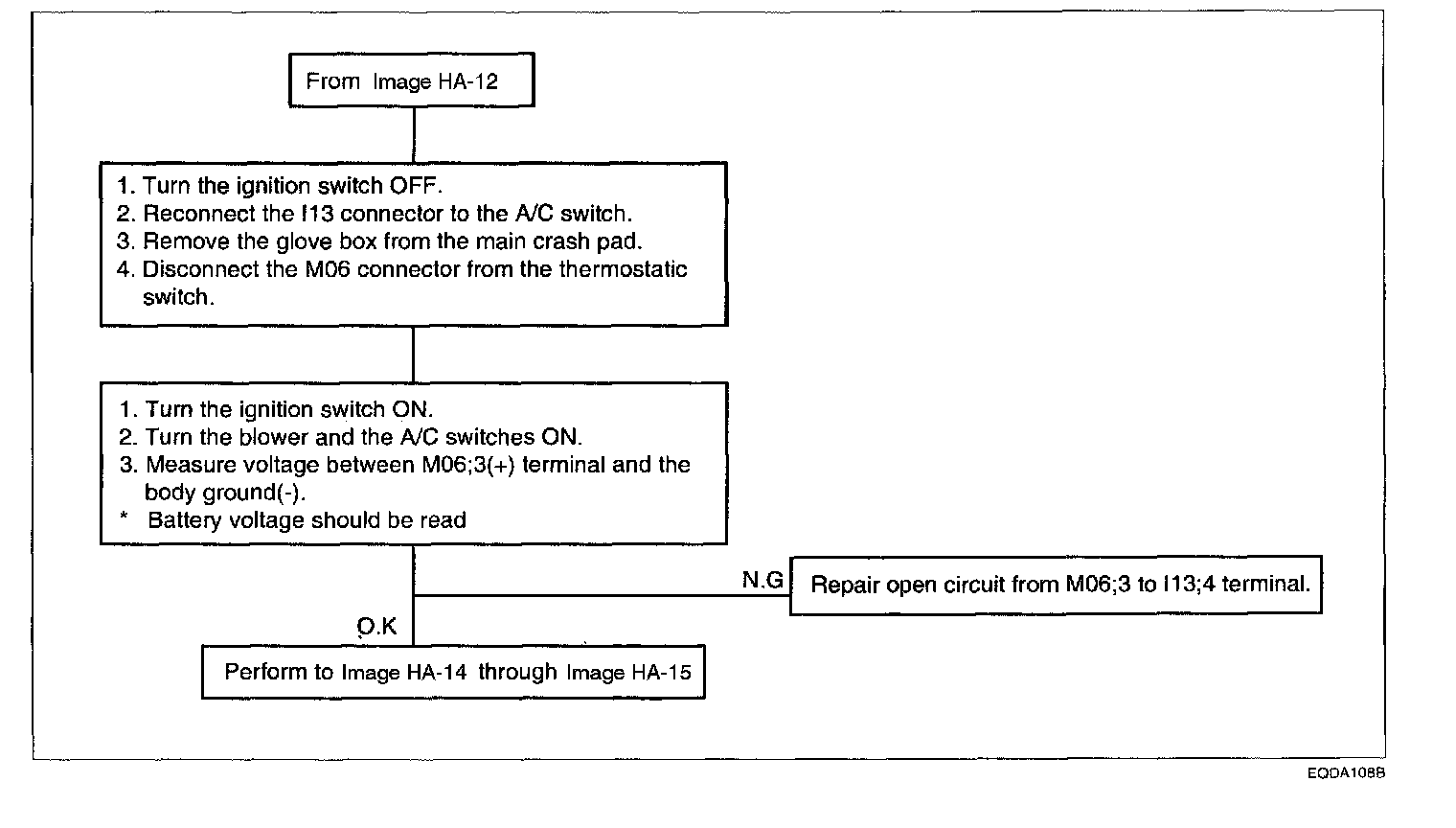

Image HA-13:
