Compressor Does Not Come on/Condenser Fan Runs
Compressor Does Not Come on/Condenser Fan Runs

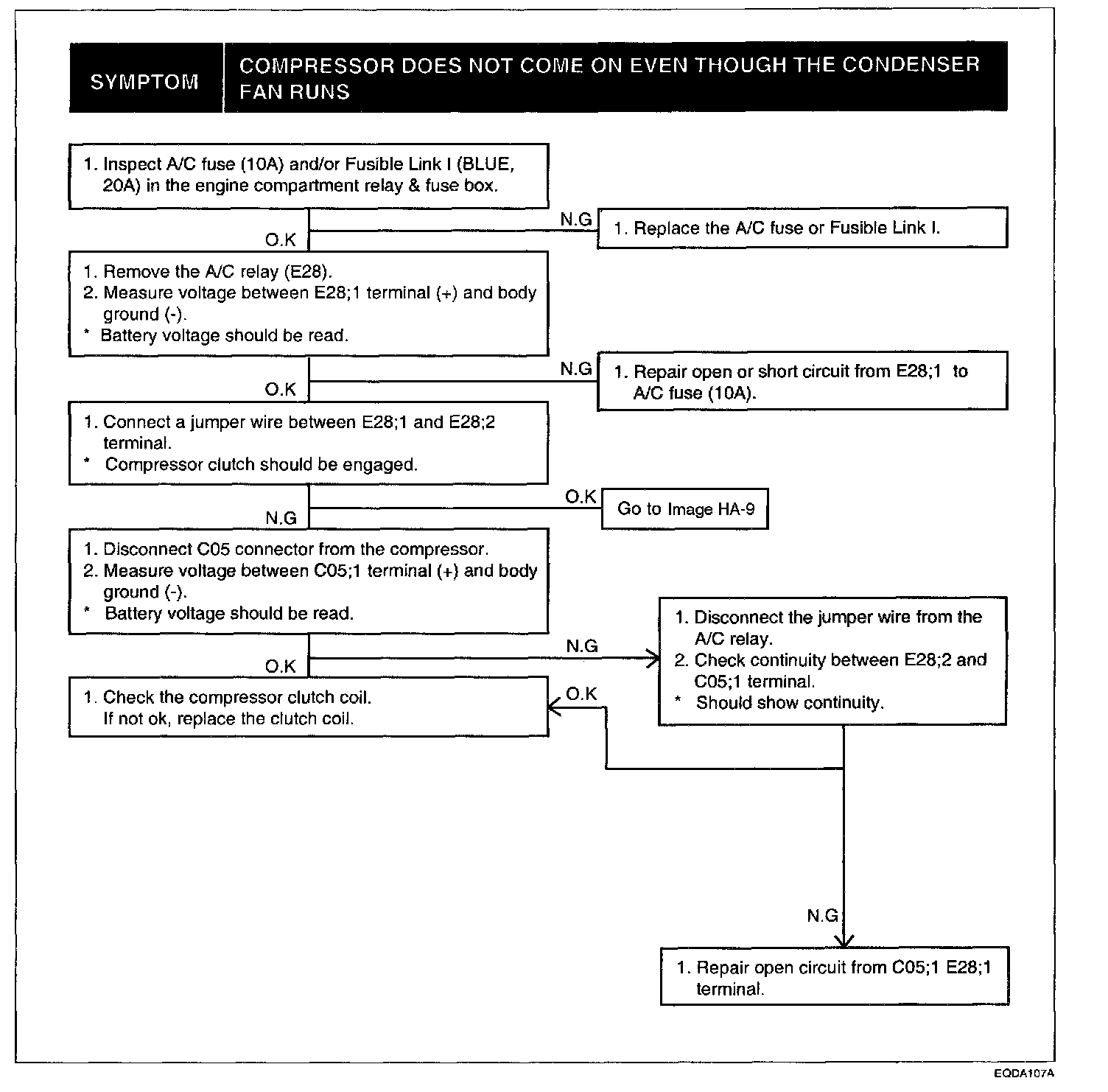

Image HA-8:

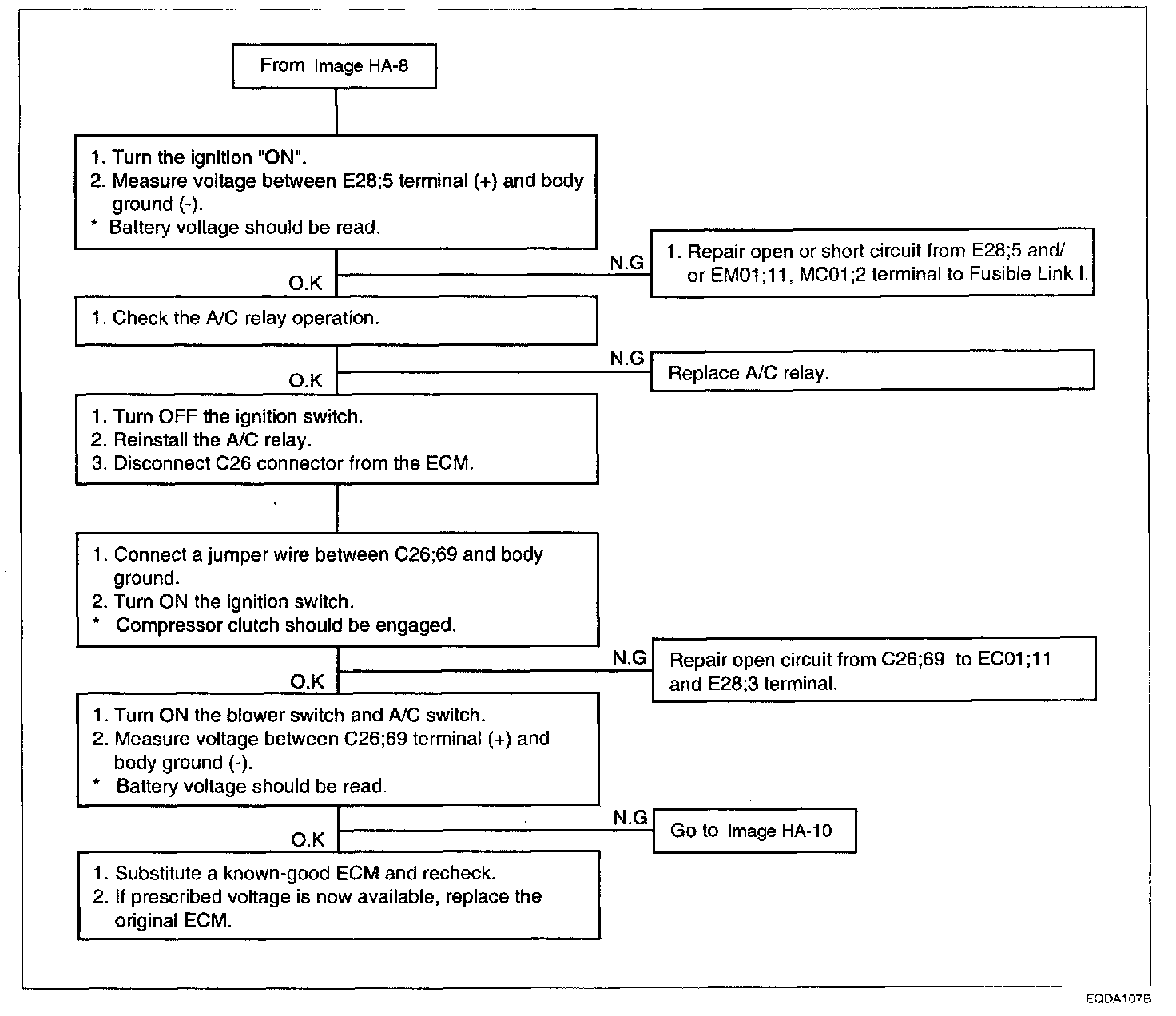

Image HA-9:

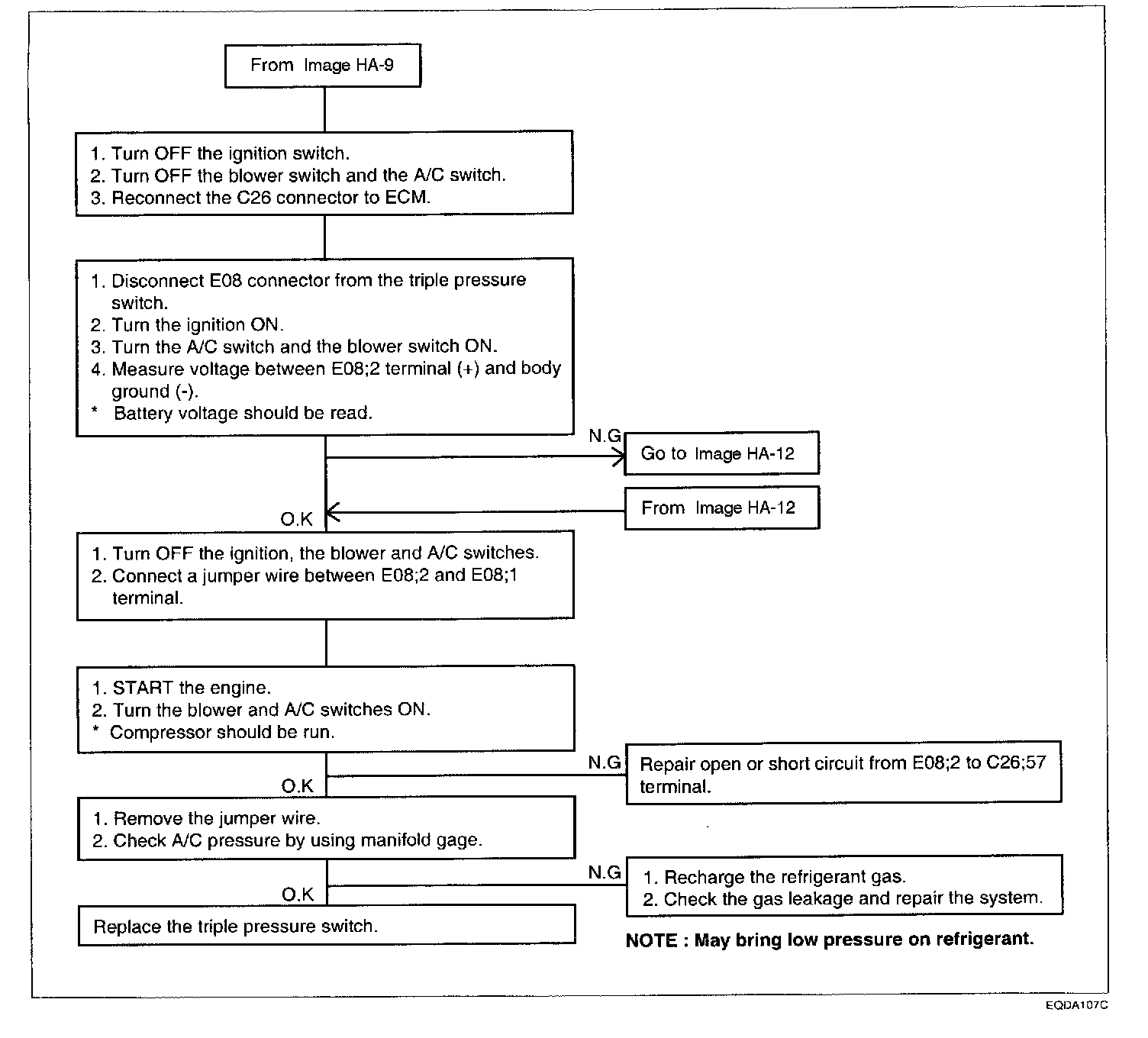

Image HA-10:

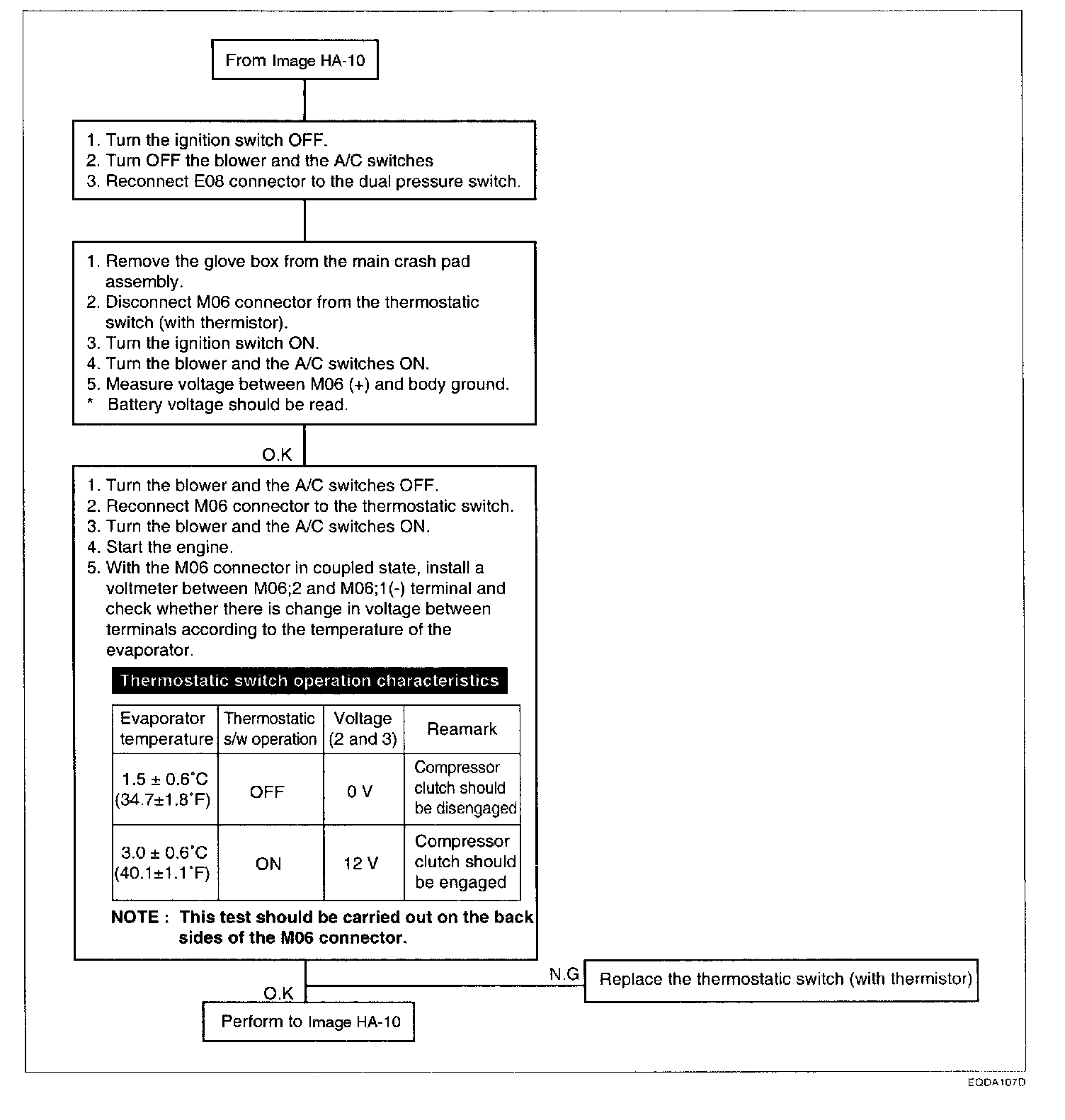

Image HA-11:
