Home >> Hyundai >> 2002 >> Accent GL Hatchback L4-1.6L >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Procedures >> Blower Motor Does Not Run

Blower Motor Does Not Run

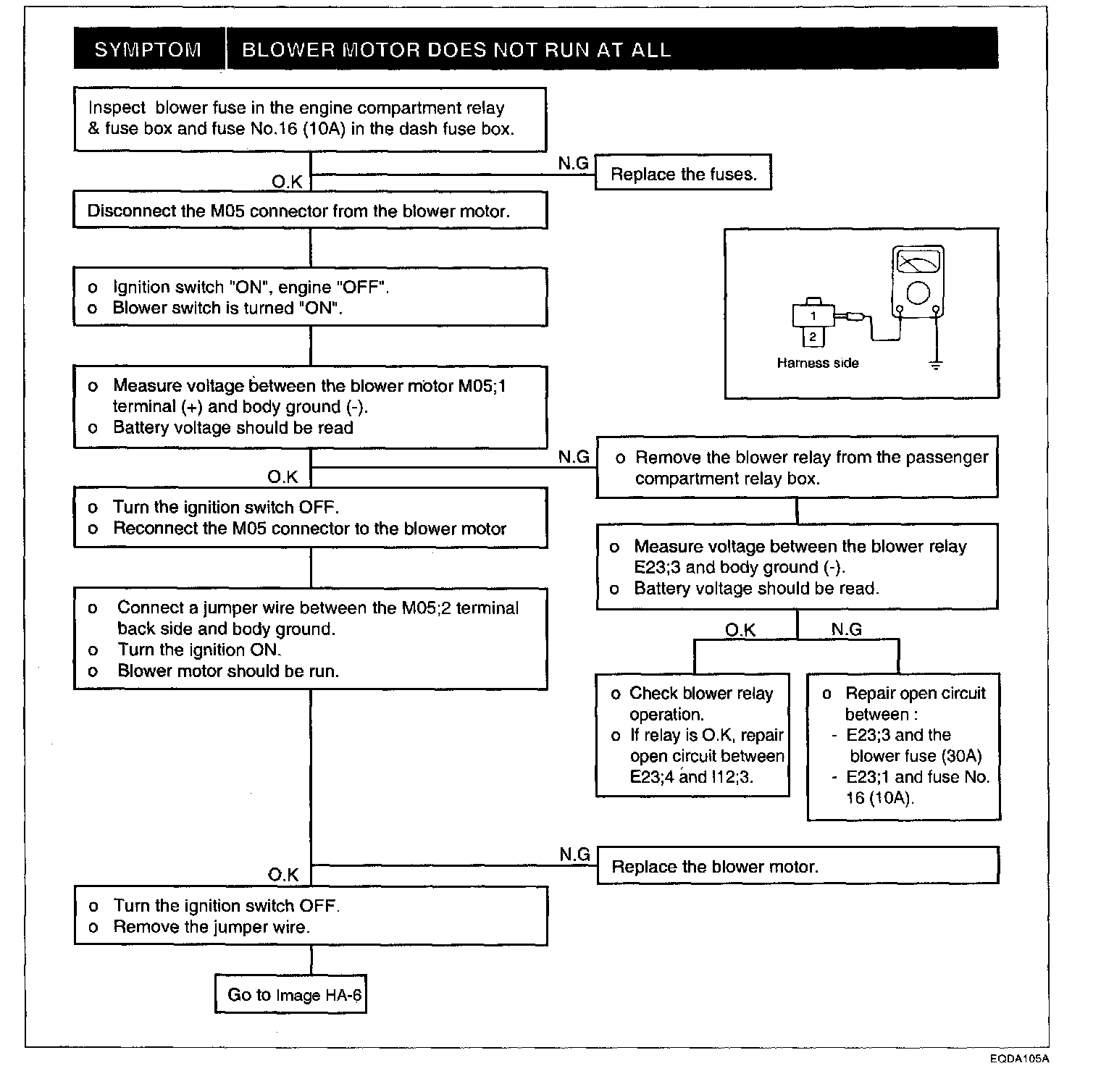

Image HA-5:

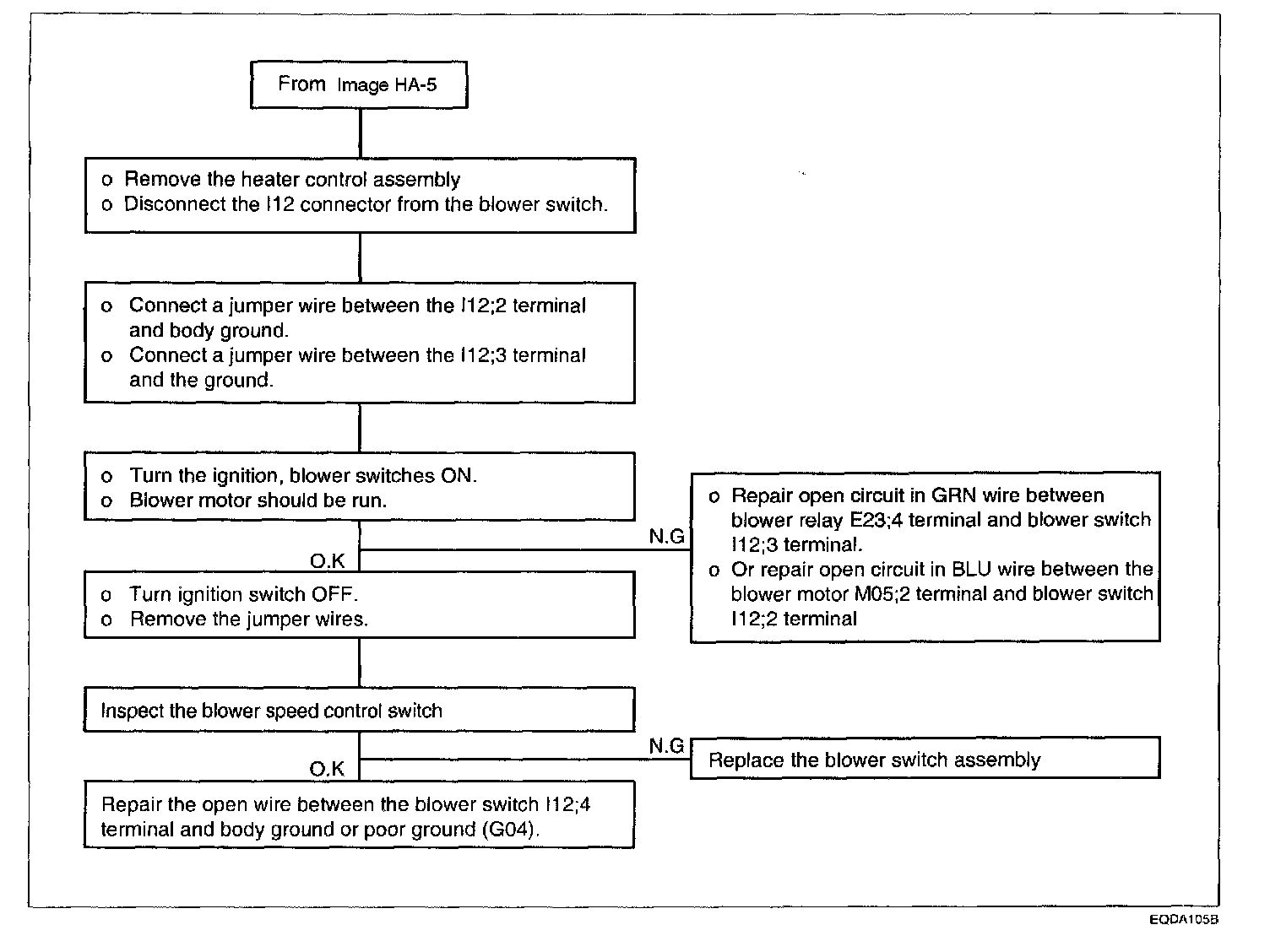

Image HA-6:
