Compressor Clutch: Testing and Inspection

HOW IS THE MAGNETIC CLUTCH IS ENERGIZED

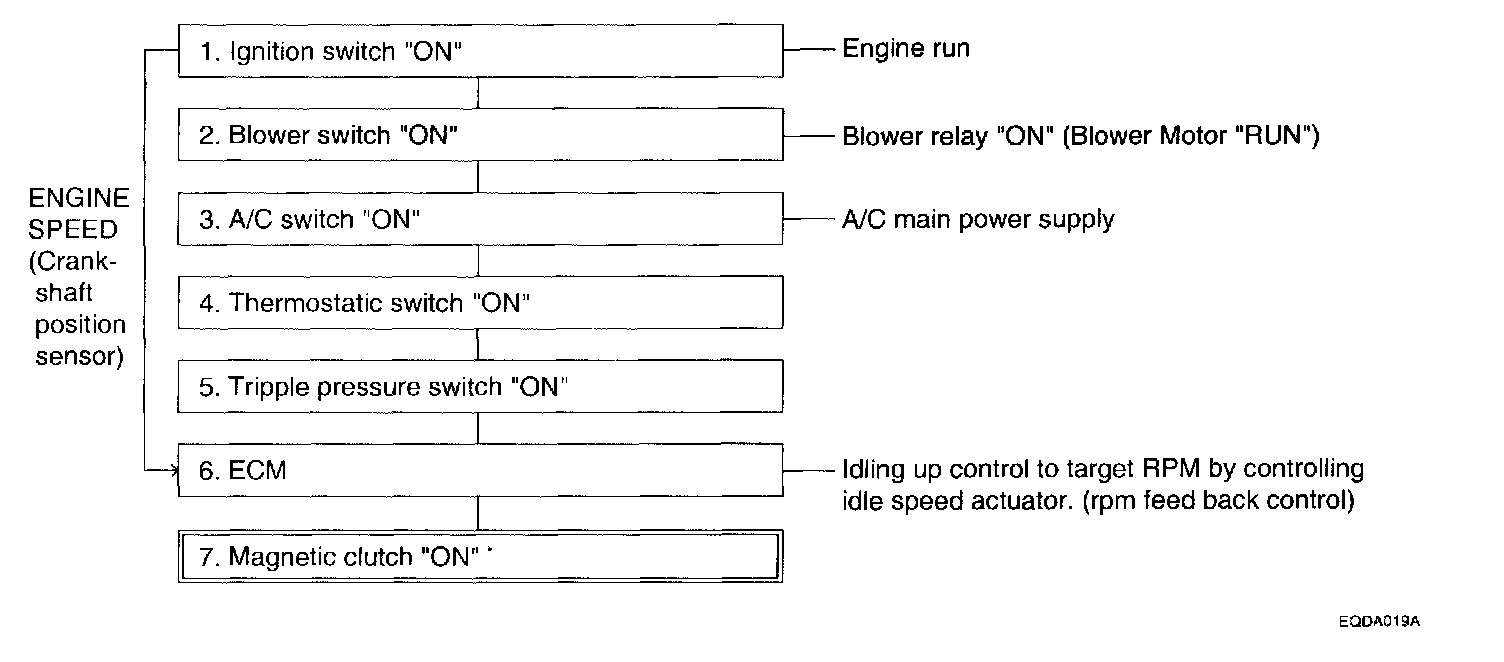

The general process how the magnetic clutch is energized is as shown. (MFI only)
