Removal and Installation

Blower Unit:

COMPONENTS

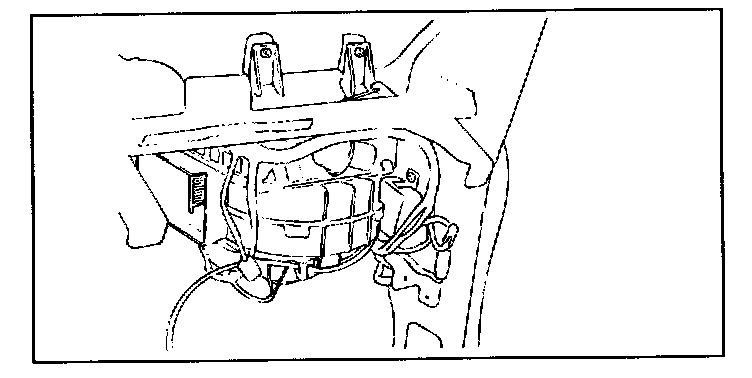

REMOVAL AND INSTALLATION
1. Remove the main crash pad assembly.
2. Disconnect the resistor and blower motor connector.
3. Remove the evaporator mounting nuts and the evaporator unit.
4. Remove 3 nuts (or bolts) from the blower unit mounting bracket.
5. Pull out the blower unit.
6. Installation is the reverse of removal.
