Disassembly and Reassembly

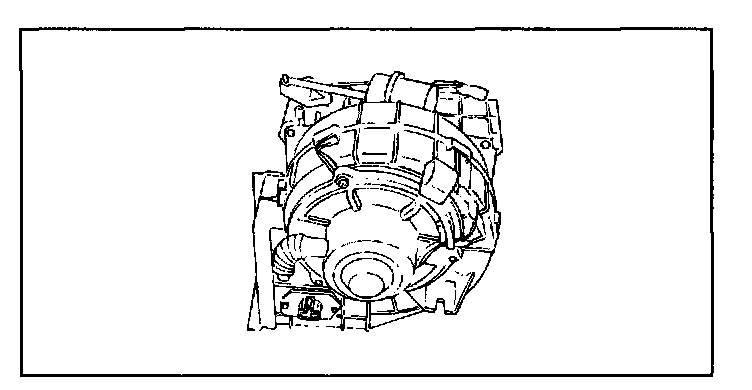

BLOWER UNIT

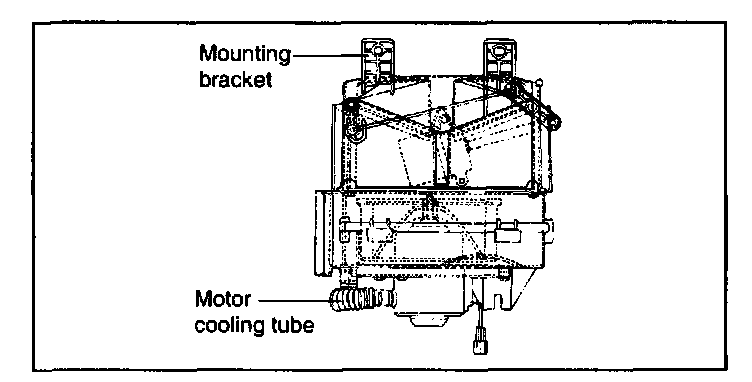

1. Disconnect the motor cooling tube.




2. Remove the three screws and the blower motor assembly.

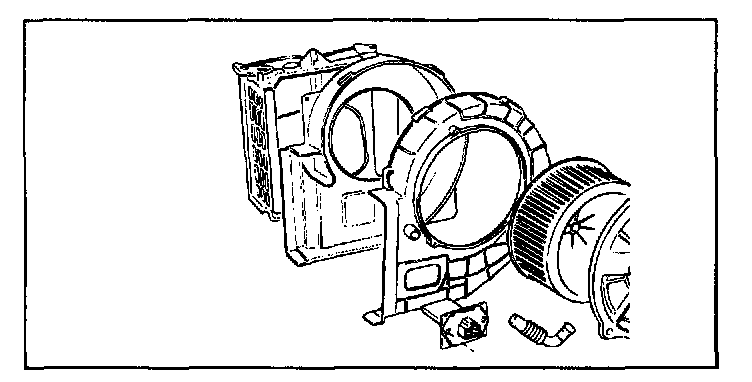

3. Loosen the connection holding the inlet duct assembly and the blower upper case.
4. Remove the inlet duct assembly.
5. Loosen the six connections holding the blower upper and lower case by using a flat tip screwdriver.




6. Remove the two screws and the blower resistor.
7. Reassembly is the reverse of disassembly.
