Exhaust System: Service and Repair

REMOVAL
MAIN MUFFLER

CAUTION: Before removing or inspecting the exhaust system, ensure that the exhaust system has cooled sufficiently.

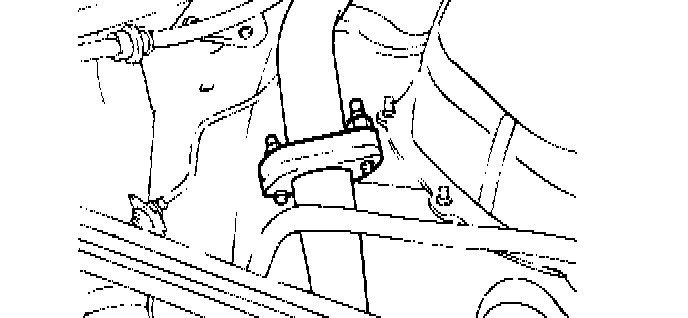

1. Disconnect the main muffler from the center muffler.

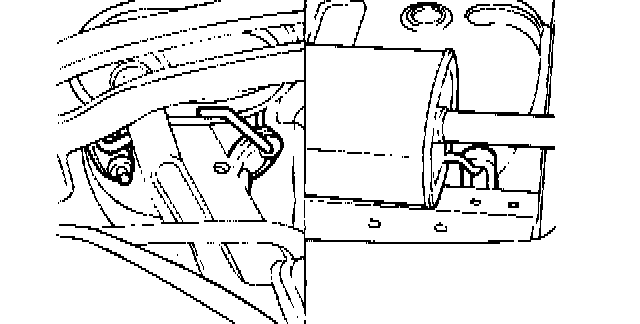

2. Remove the rubber hangers and remove the main muffler.

CENTER MUFFLER

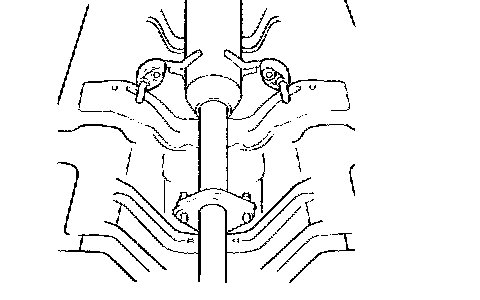

1. Remove the center muffler assembly from the main muffler and front exhaust pipe.
2. Remove the rubber hanger, then remove the center muffler.

FRONT EXHAUST PIPE

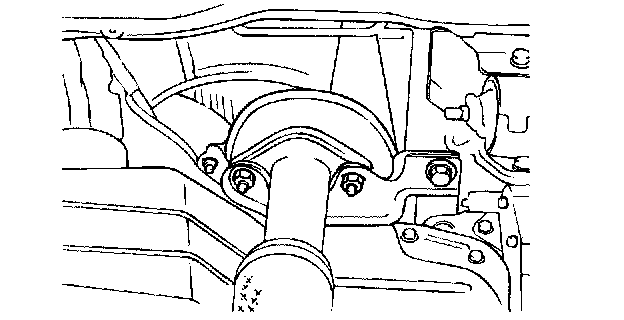

1. Remove the front exhaust pipe clamp bolts and remove the front exhaust pipe nuts from the catalytic converter.
2. Remove the front exhaust pipe and center muffler bolt.

INSTALLATION
1. Temporarily install the front exhaust pipe, the center exhaust pipe, and the main muffler, in that order.
2. Tighten the parts securely. Make sure there is no interference with any body components.
