Accent GL Hatchback L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Rear Harness
Rear Harness

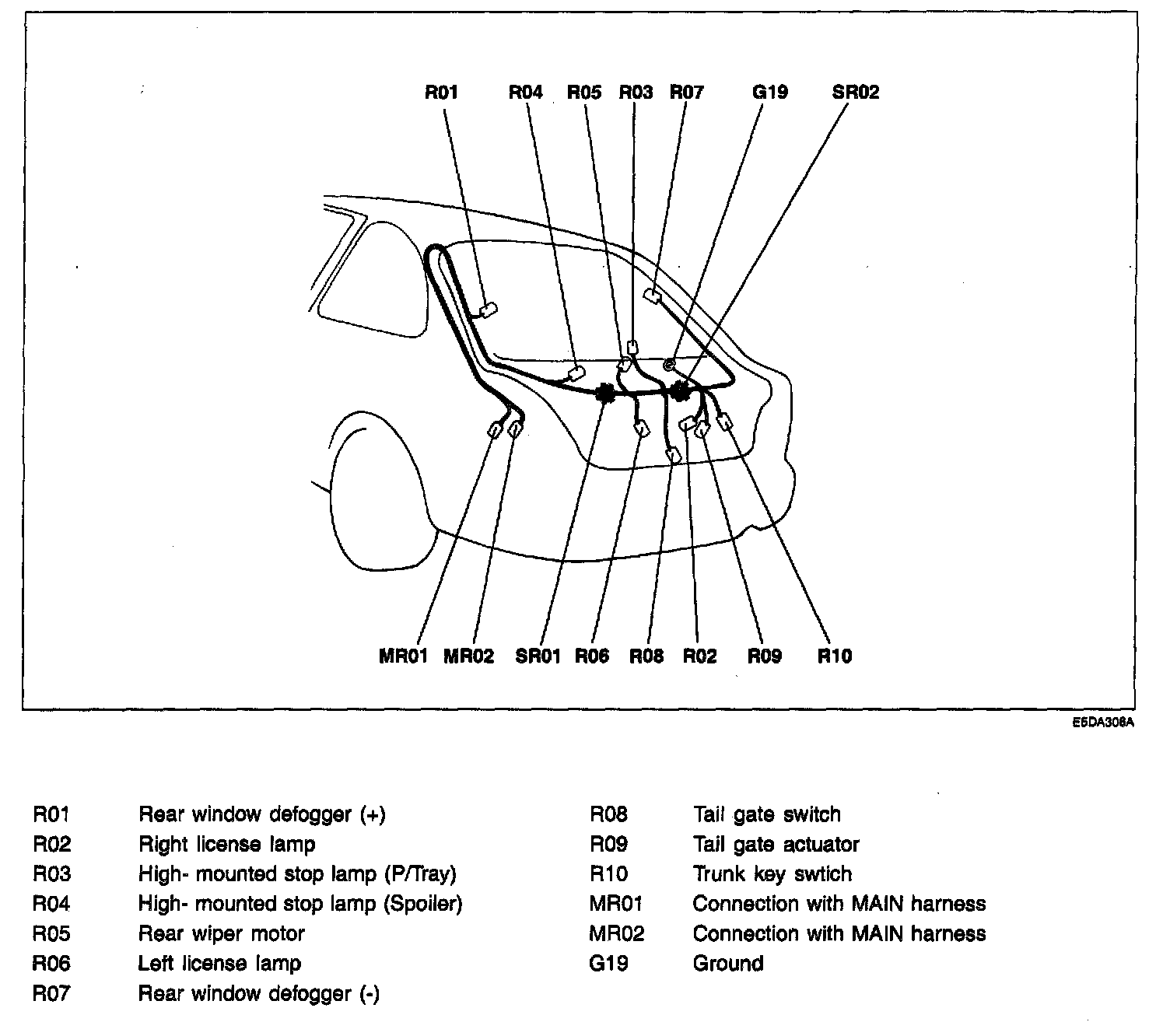

Rear Harness (Tail Gate):
