Home >> Hyundai >> 2002 >> Accent GL Hatchback L4-1.6L >> Repair and Diagnosis >> Diagrams >> Harness >> Control Harness

Control Harness

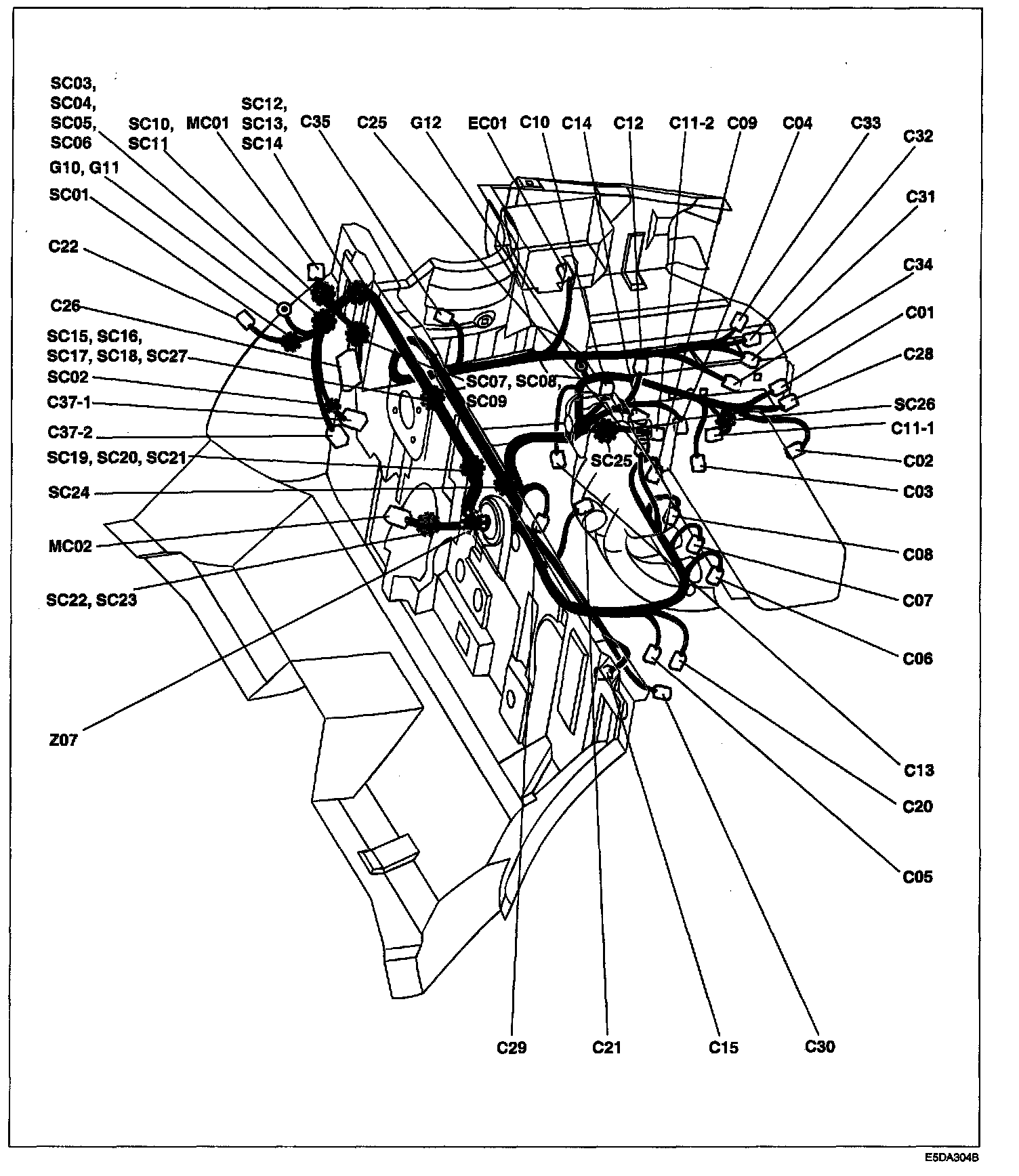

Control Harness (DOHC) View:

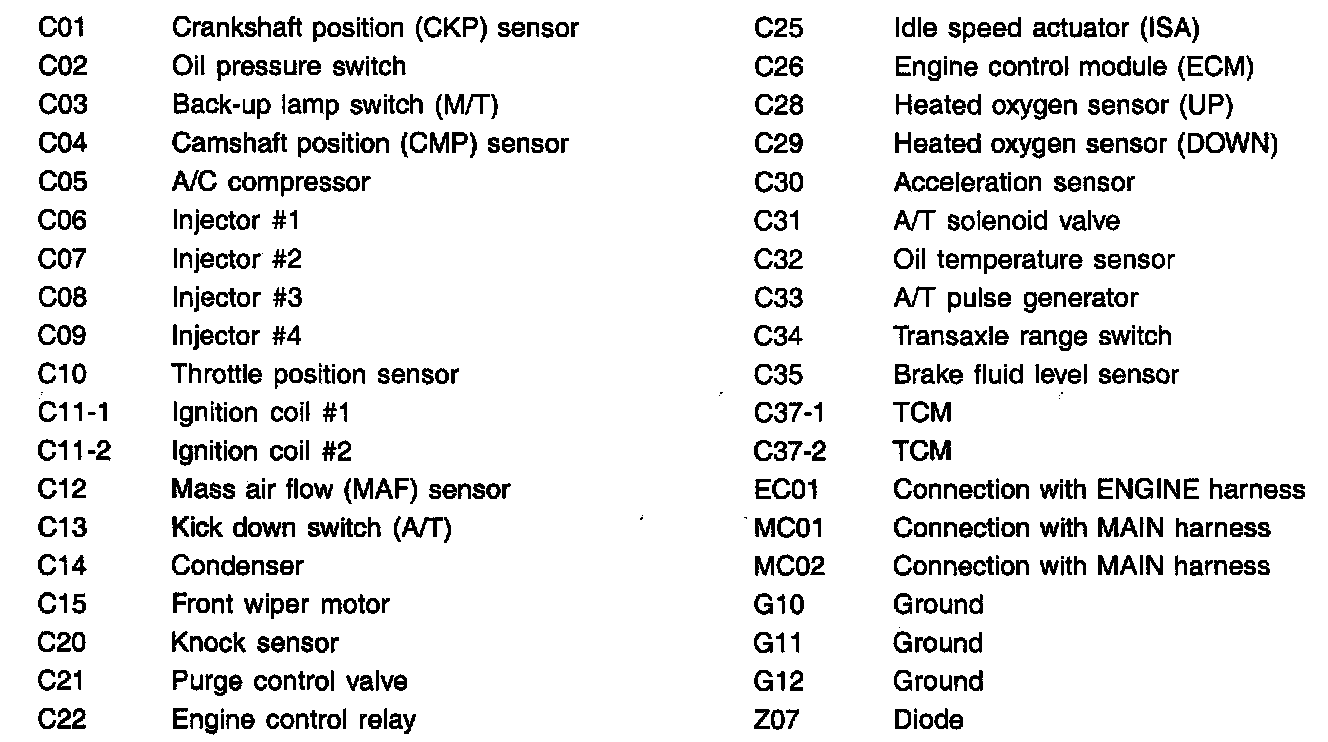

Control Harness (DOHC) Index:

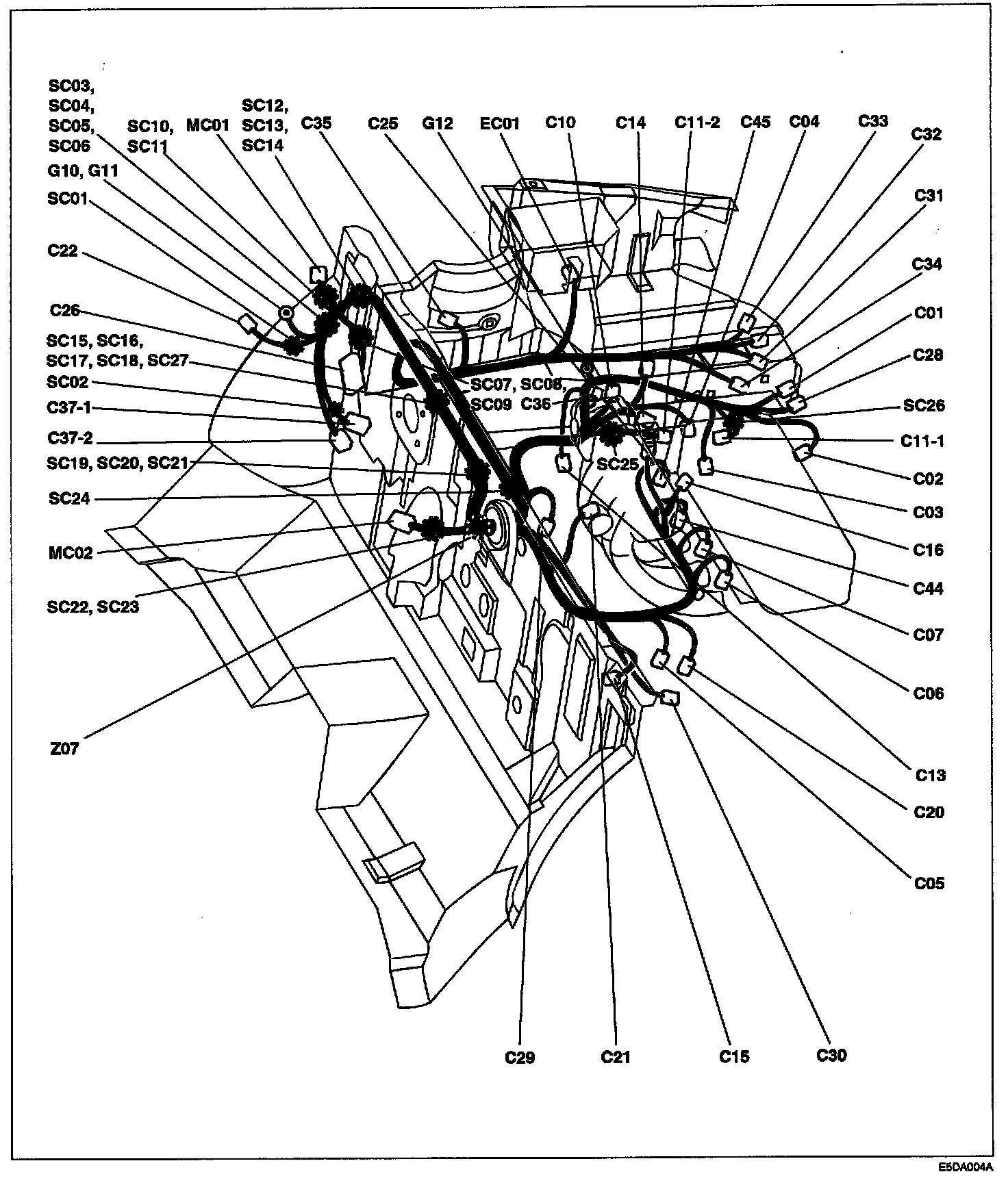

Control Harness (SOHC) View:

Control Harness (SOHC) Index:
