System Diagram

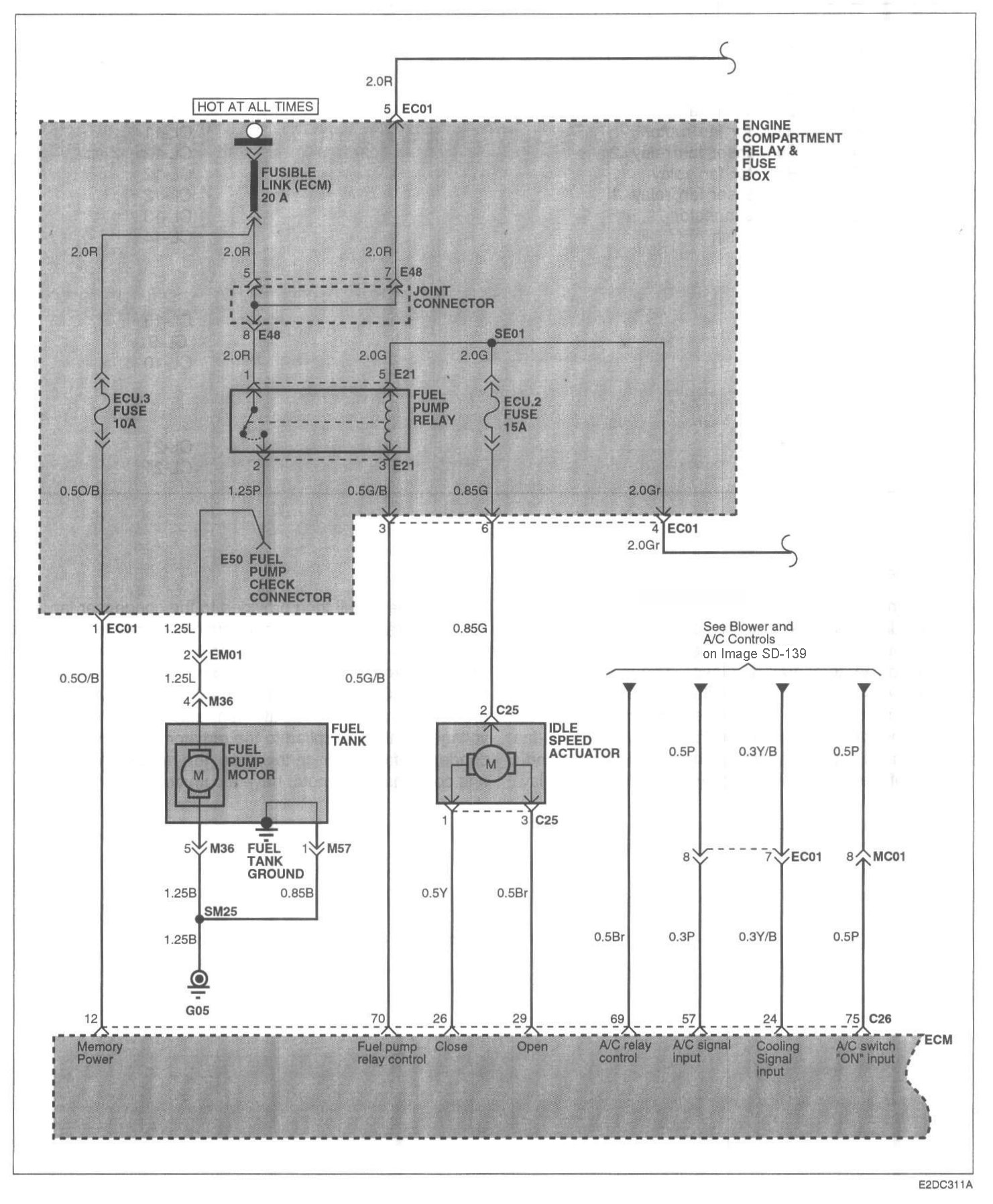

Image SD-46 MFI Control System (SOHC & DOHC) (1):

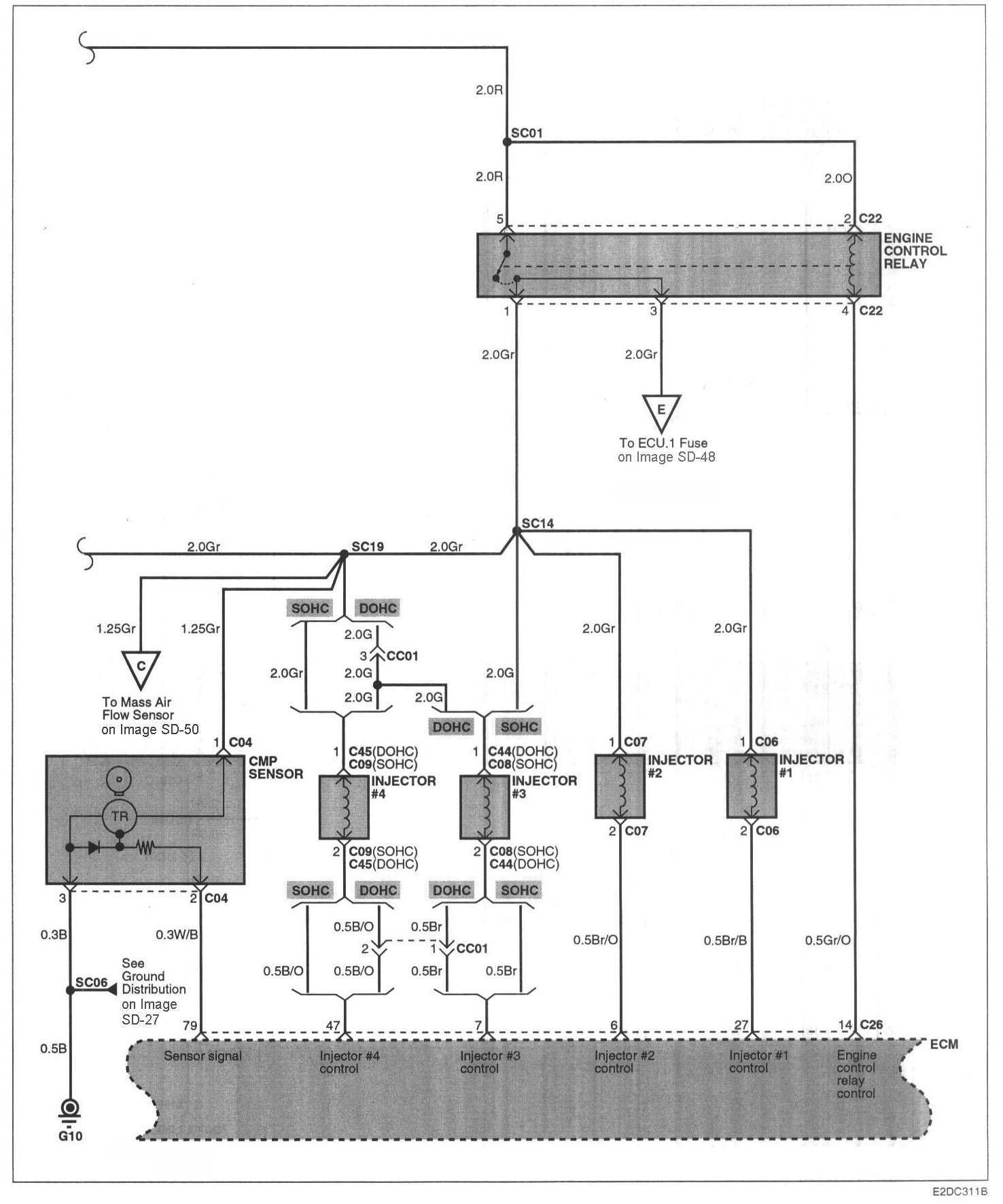

Image SD-47 MFI Control System (SOHC & DOHC) (2):

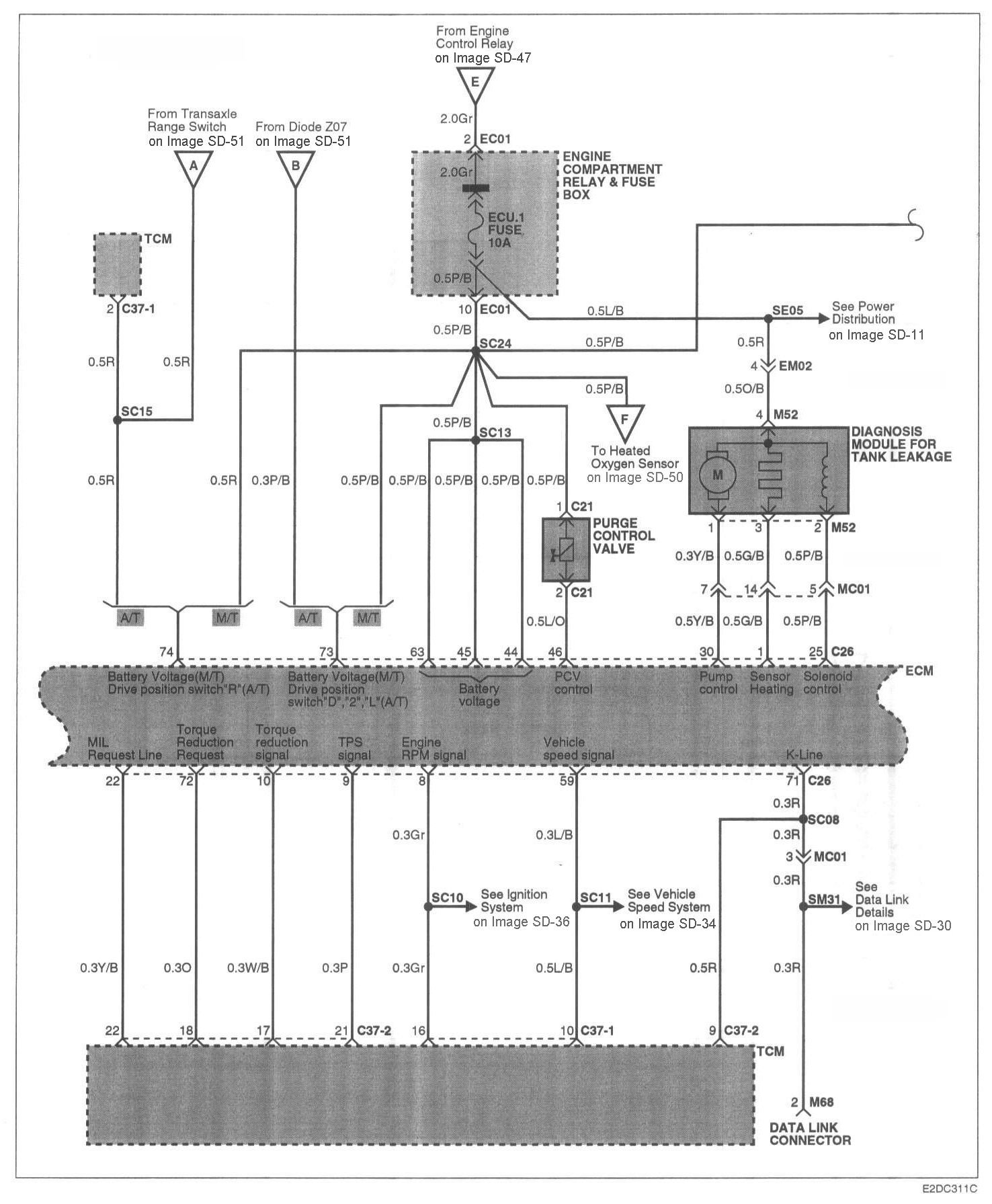

Image SD-48 MFI Control System (SOHC & DOHC) (3):

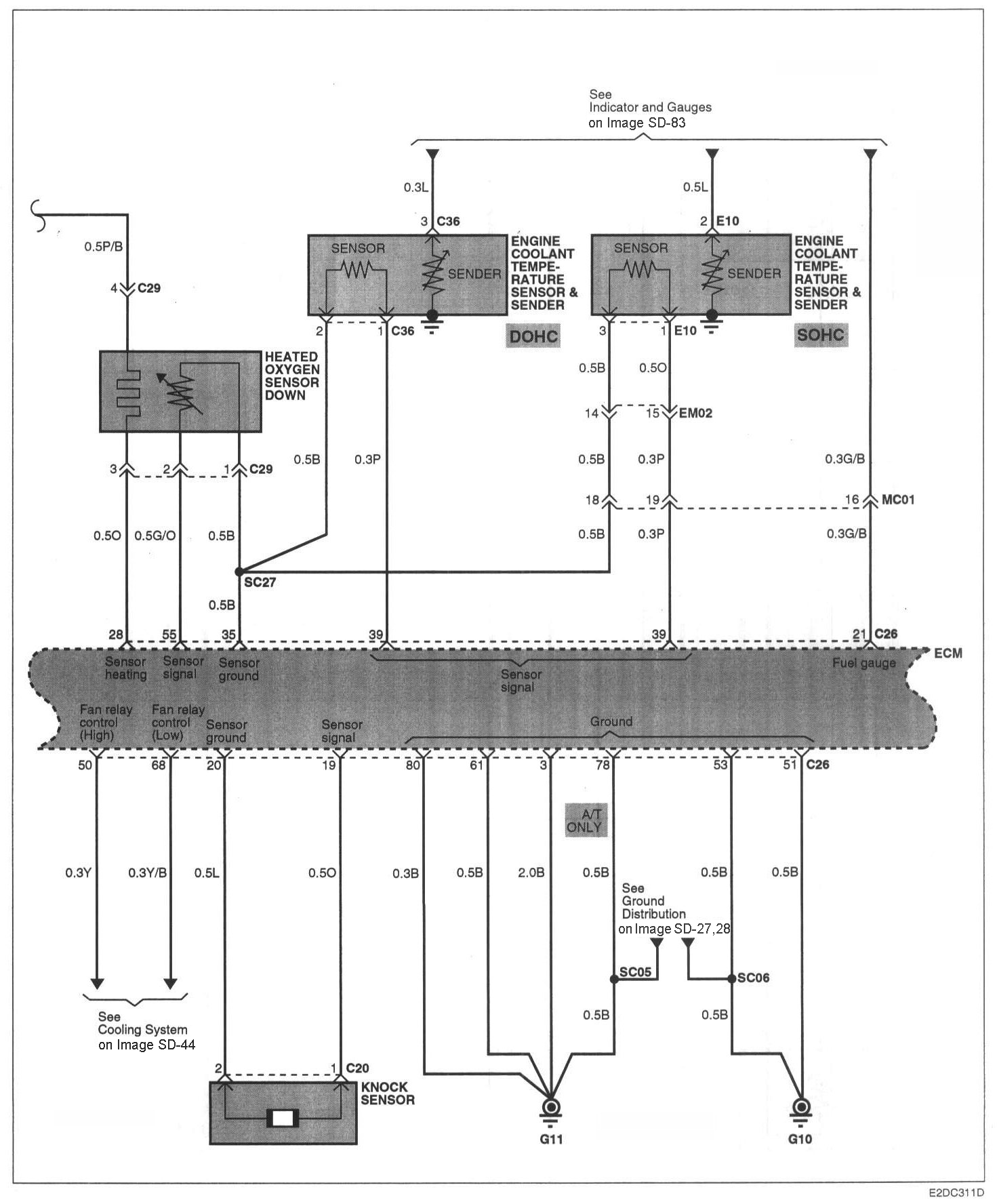

Image SD-49 MFI Control System (SOHC & DOHC) (4):

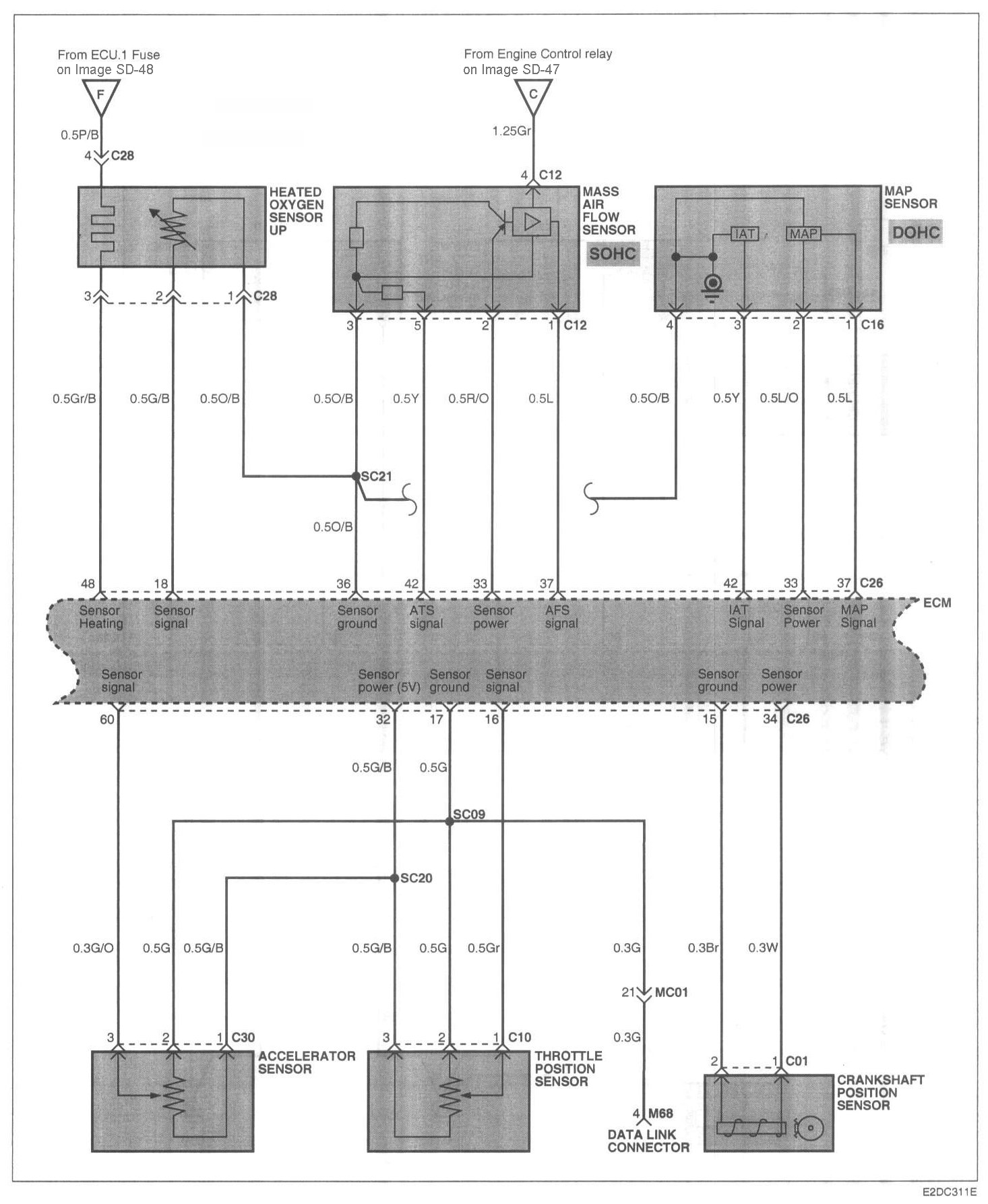

Image SD-50 MFI Control System (SOHC & DOHC) (5):

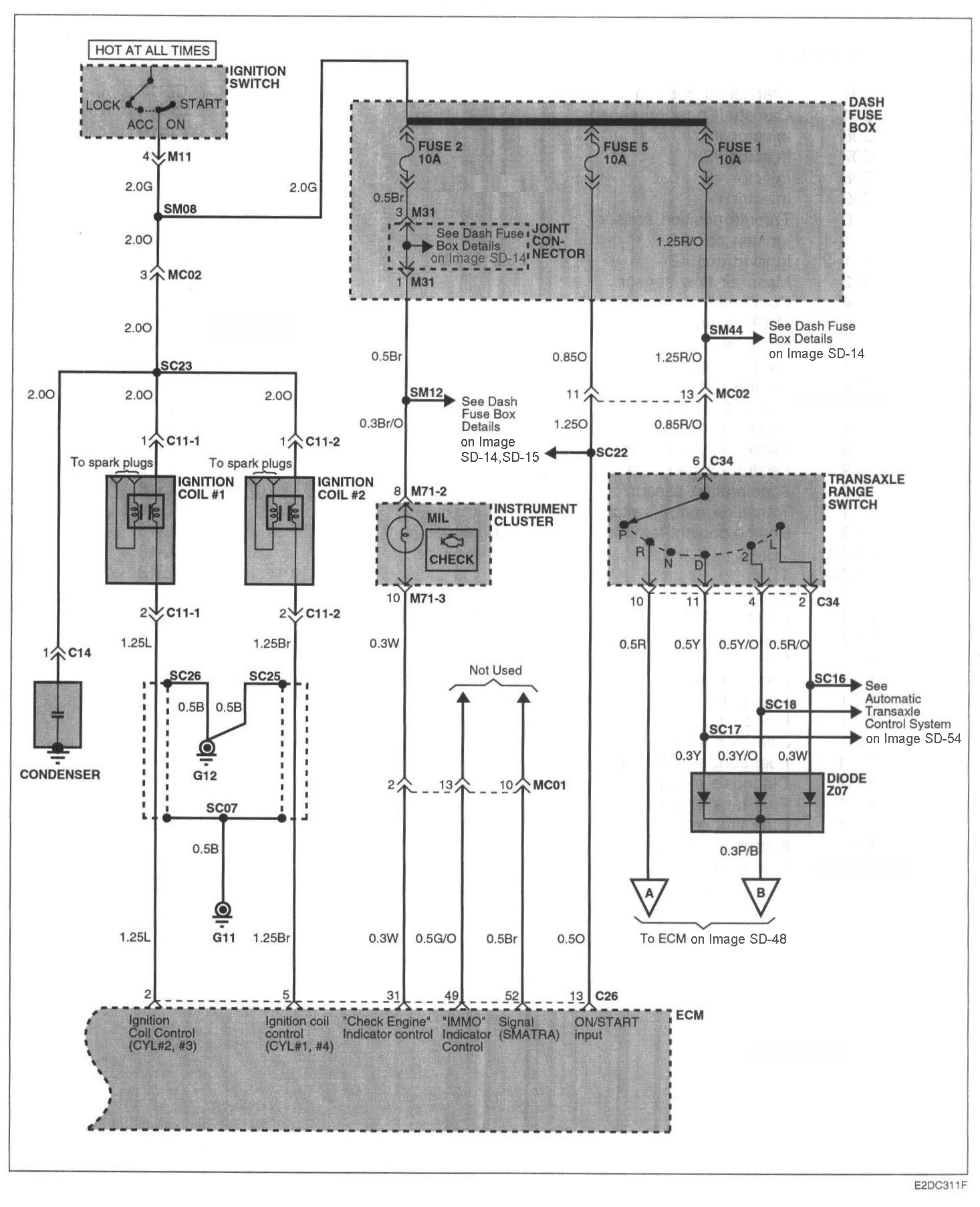

Image SD-51 MFI Control System (SOHC & DOHC) (6):
