Fuse Block

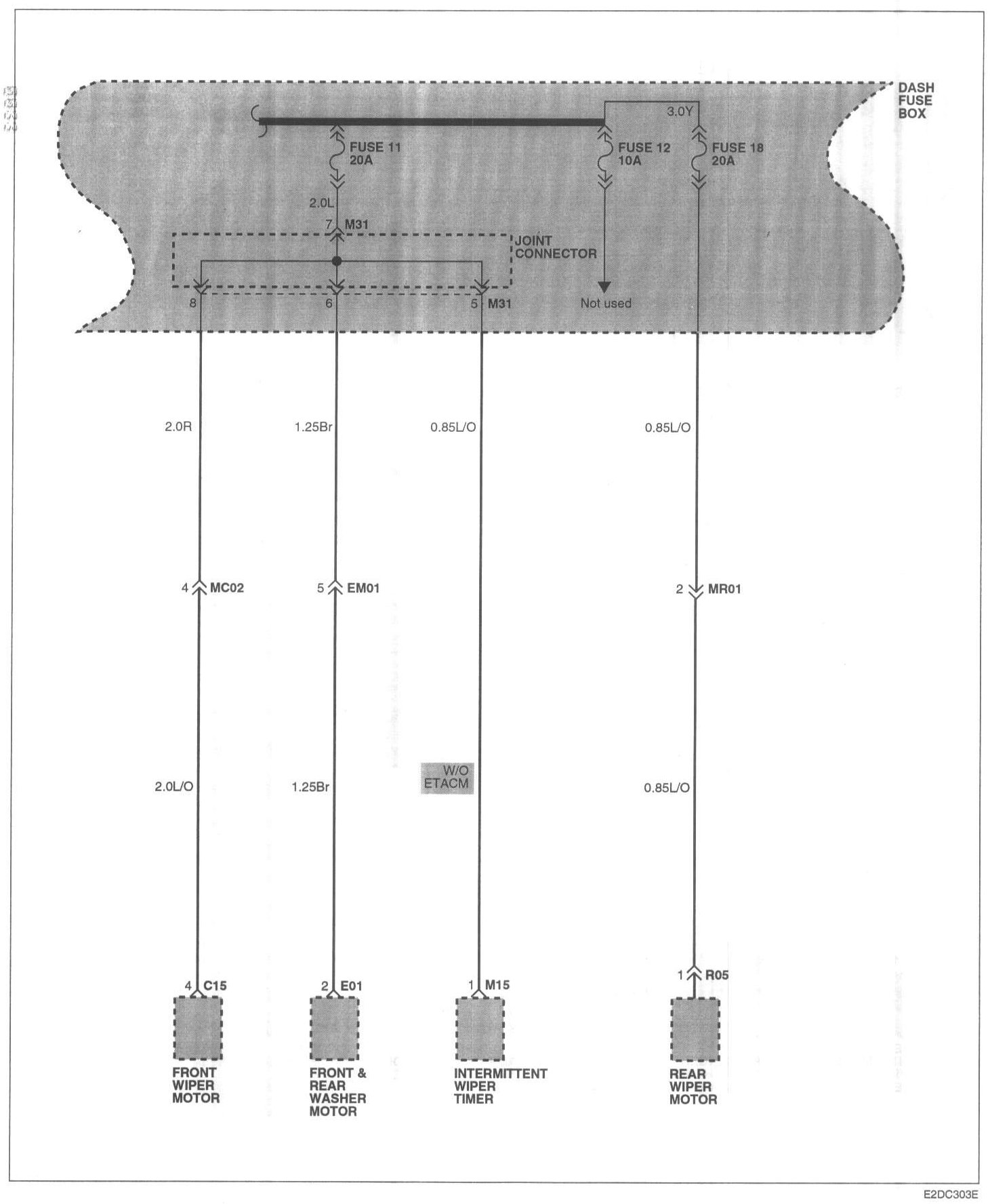

Image SD-14 Dash Fuse Box Details (1):

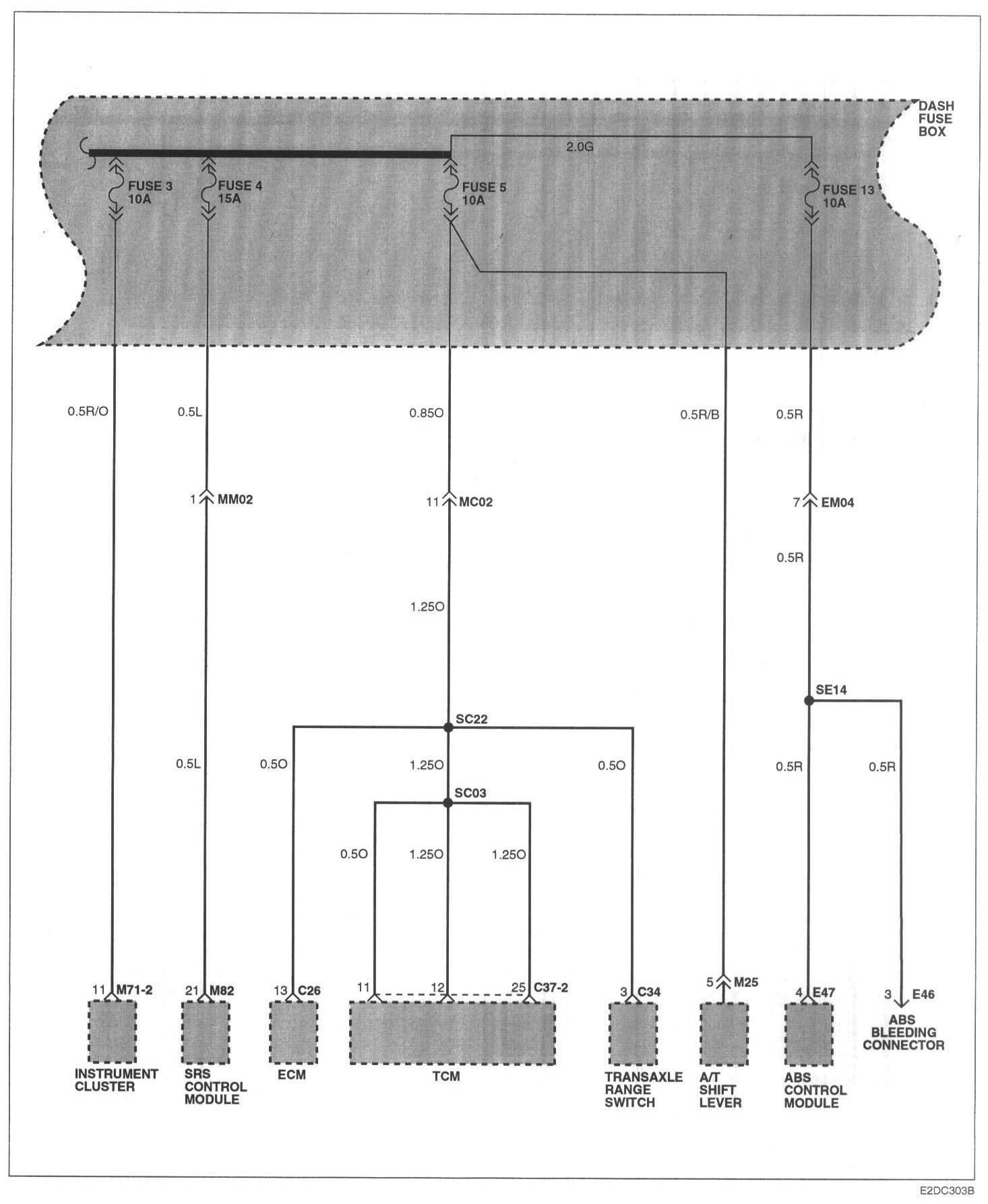

Image SD-15 Dash Fuse Box Details (2):

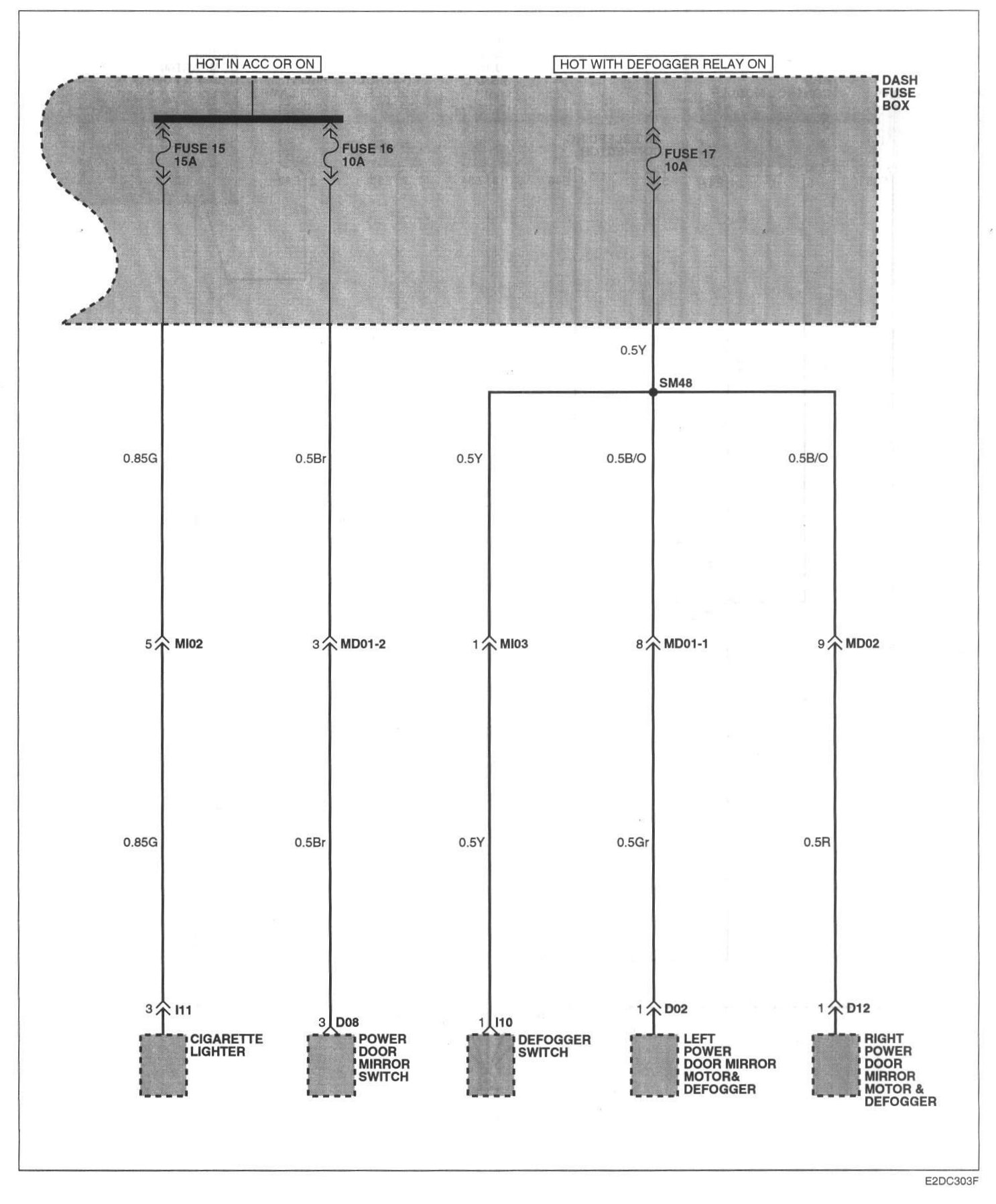

Image SD-16 Dash Fuse Box Details (3):

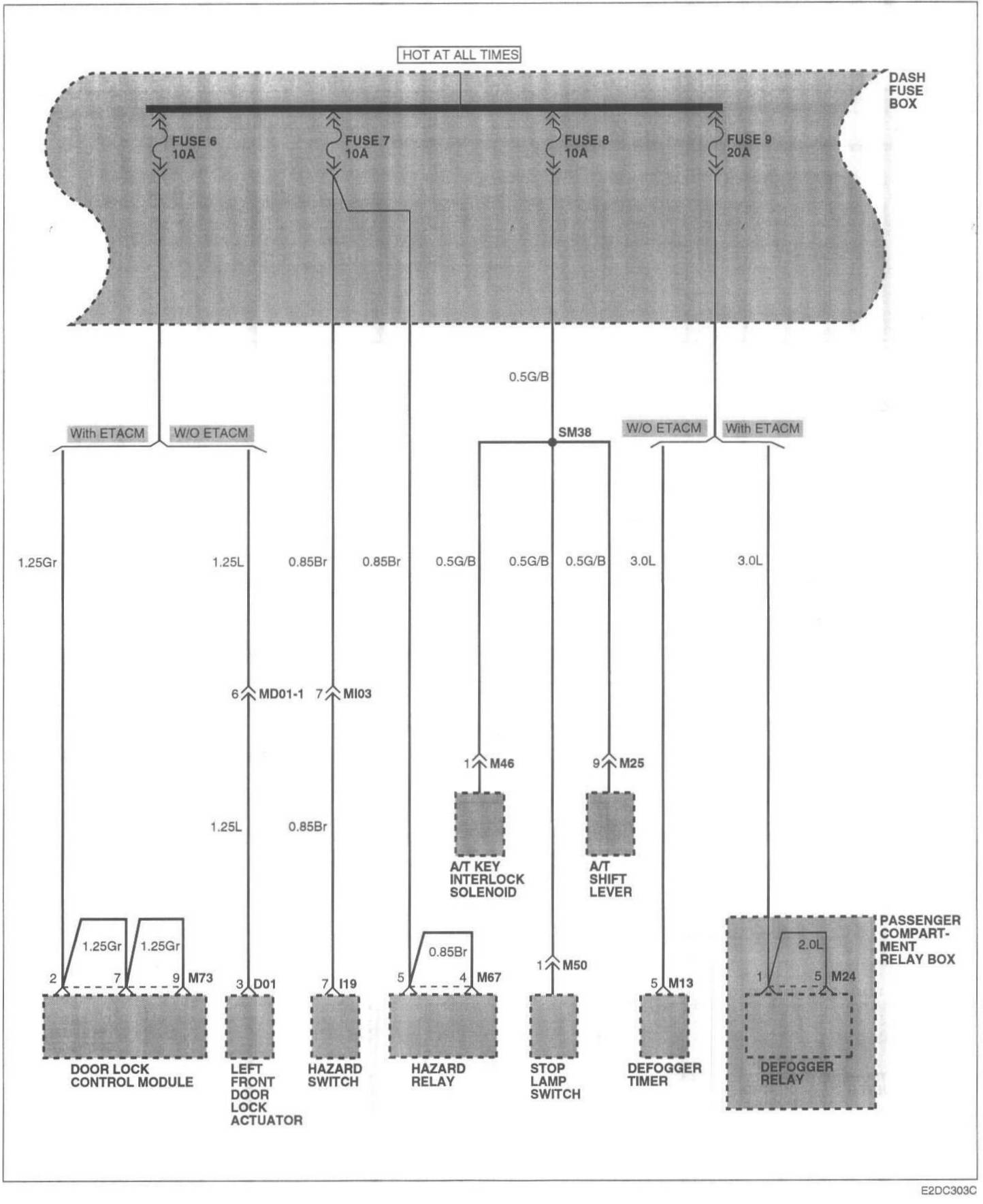

Image SD-17 Dash Fuse Box Details (4):

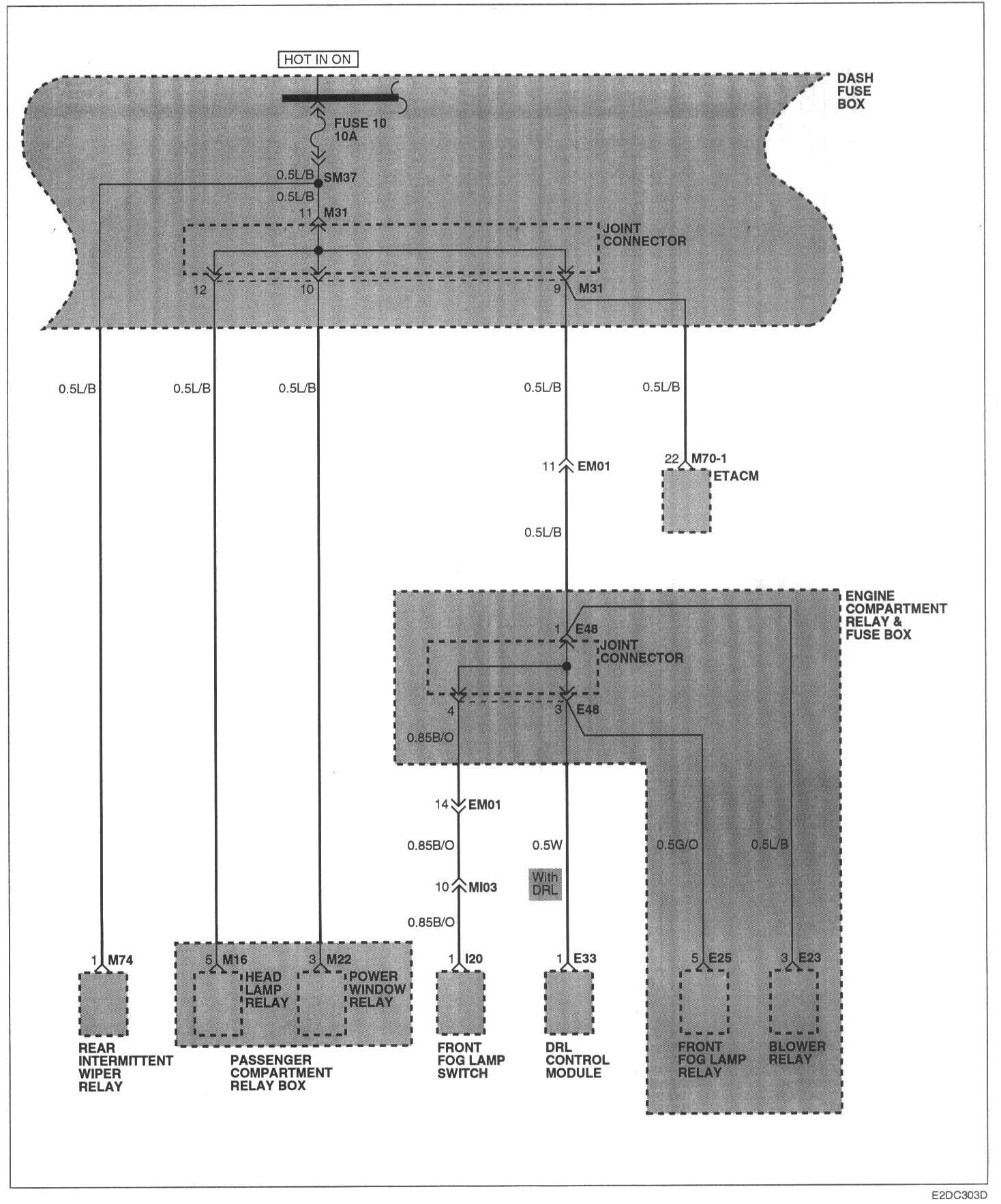

Image SD-18 Dash Fuse Box Details (5):

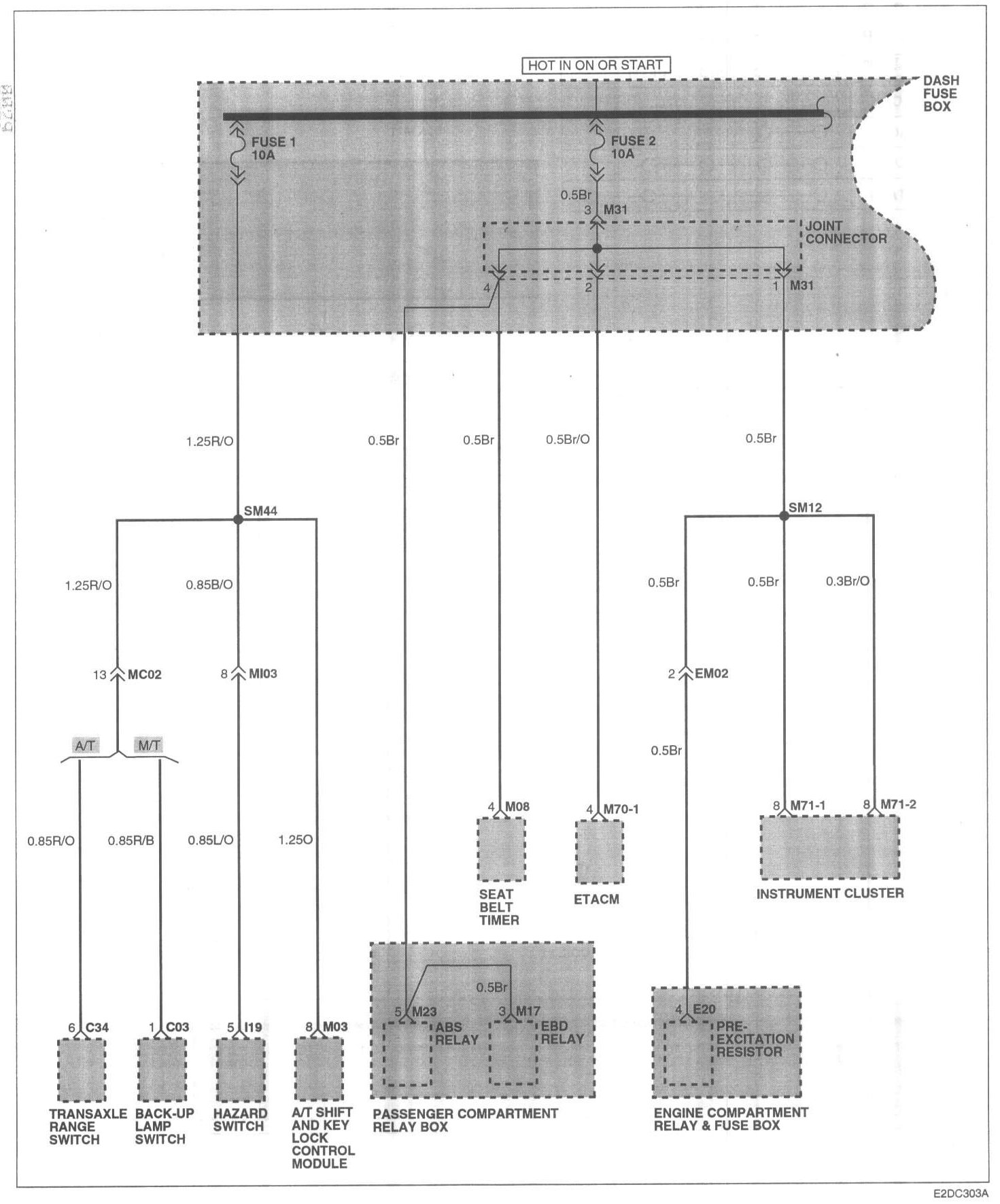

Image SD-19 Dash Fuse Box Details (6):
