System Diagram
System Diagram

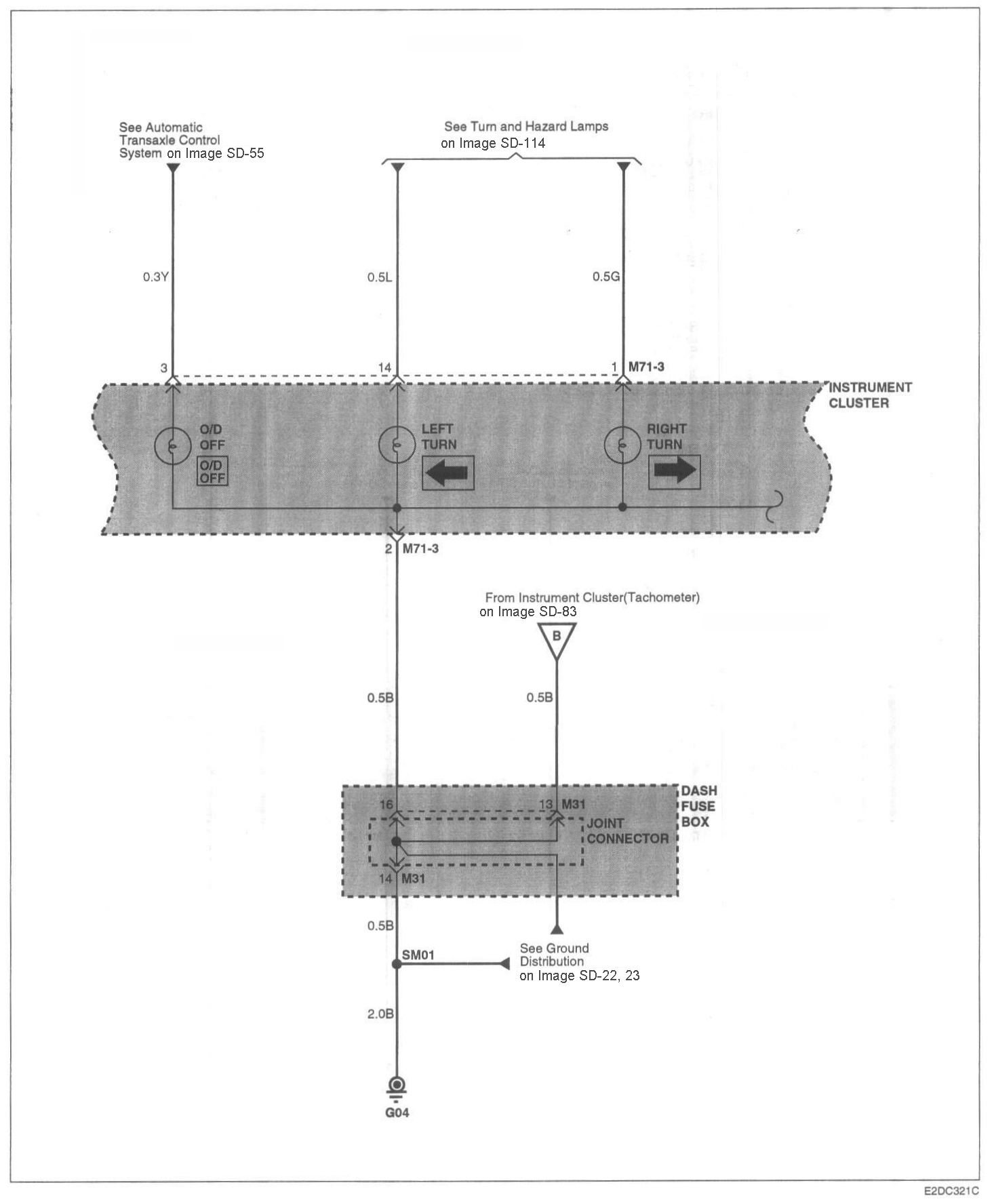

Image SD-80 Indicators And Gauges (1):

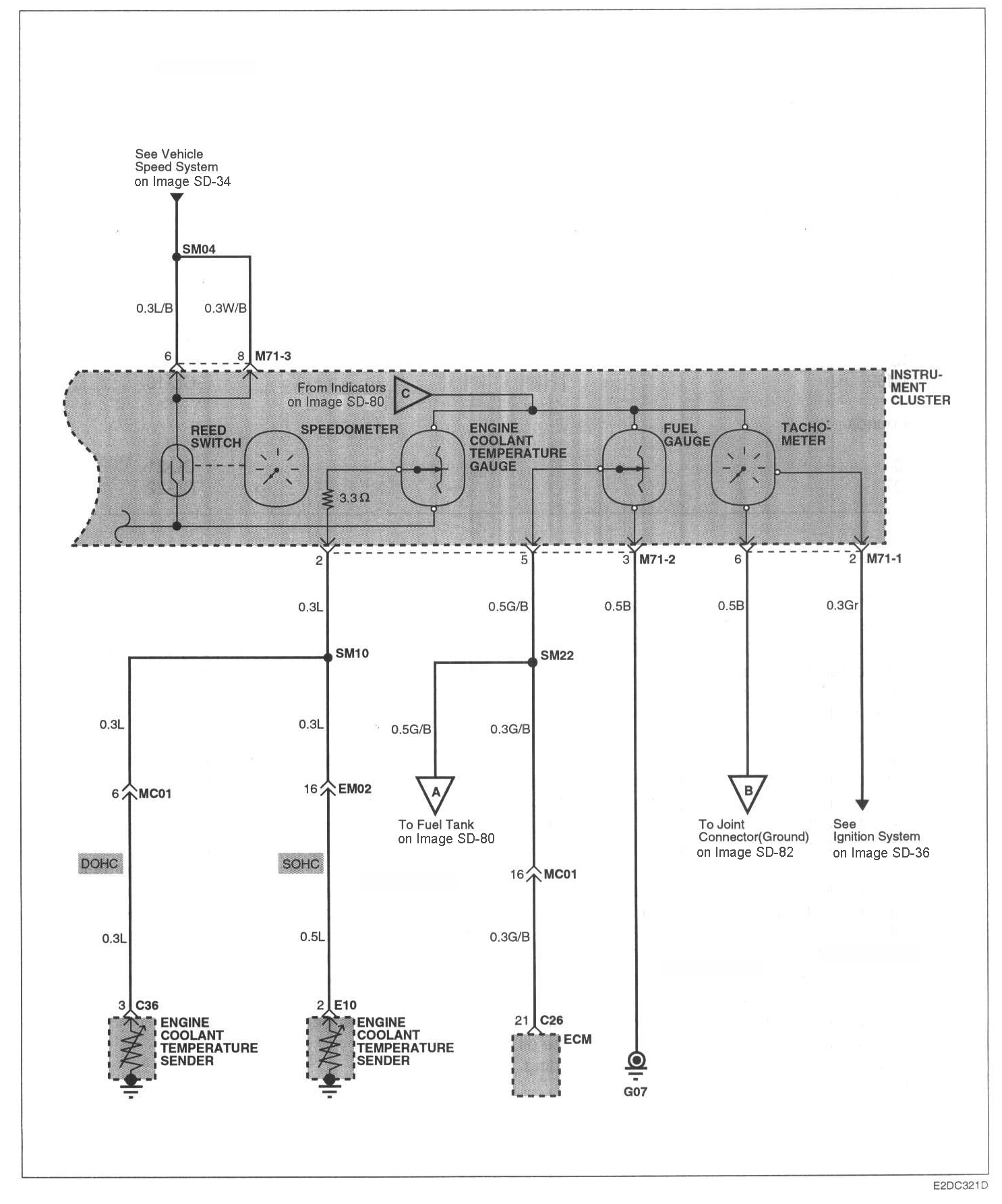

Image SD-81 Indicators And Gauges (2):

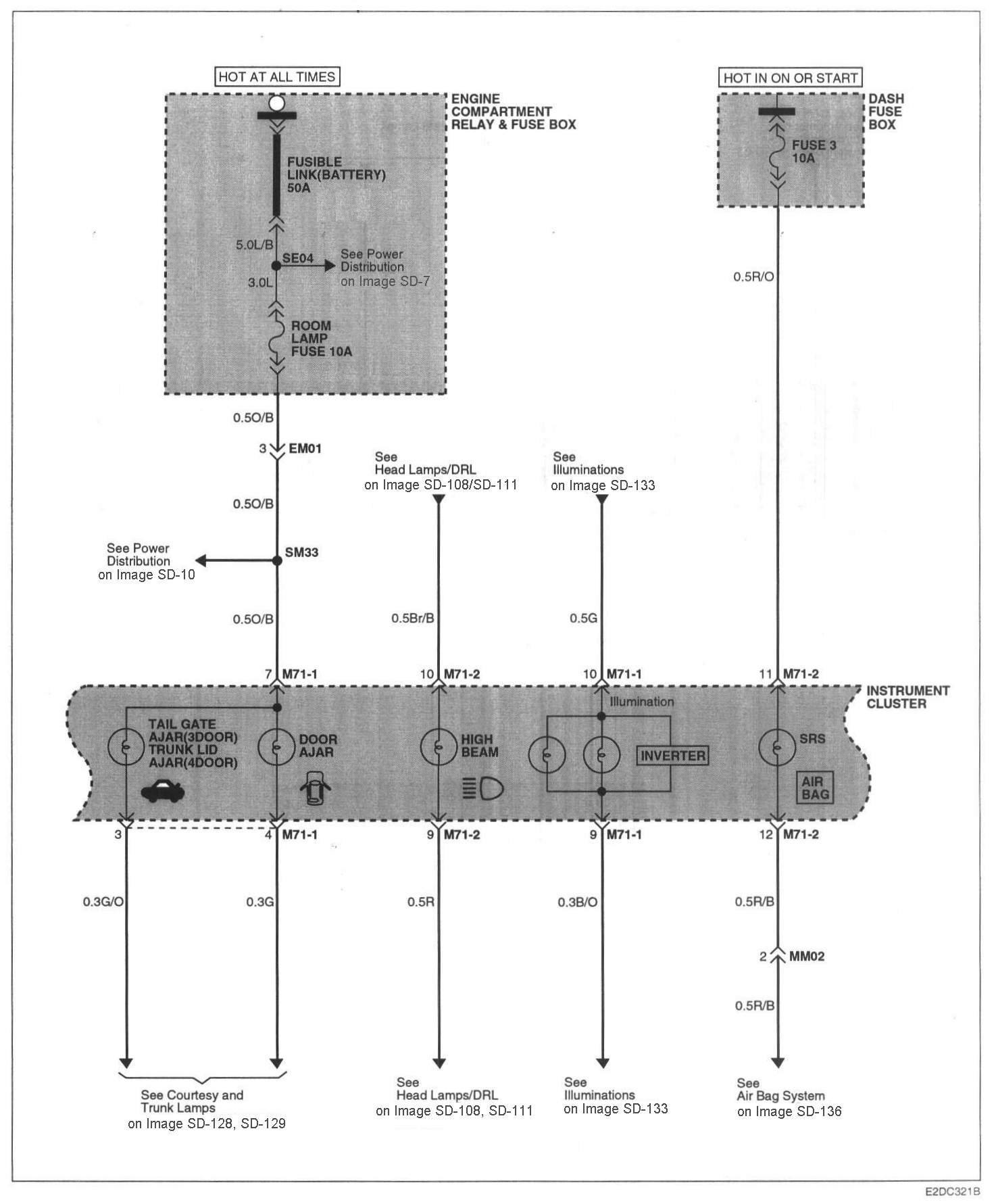

Image SD-82 Indicators And Gauges (3):

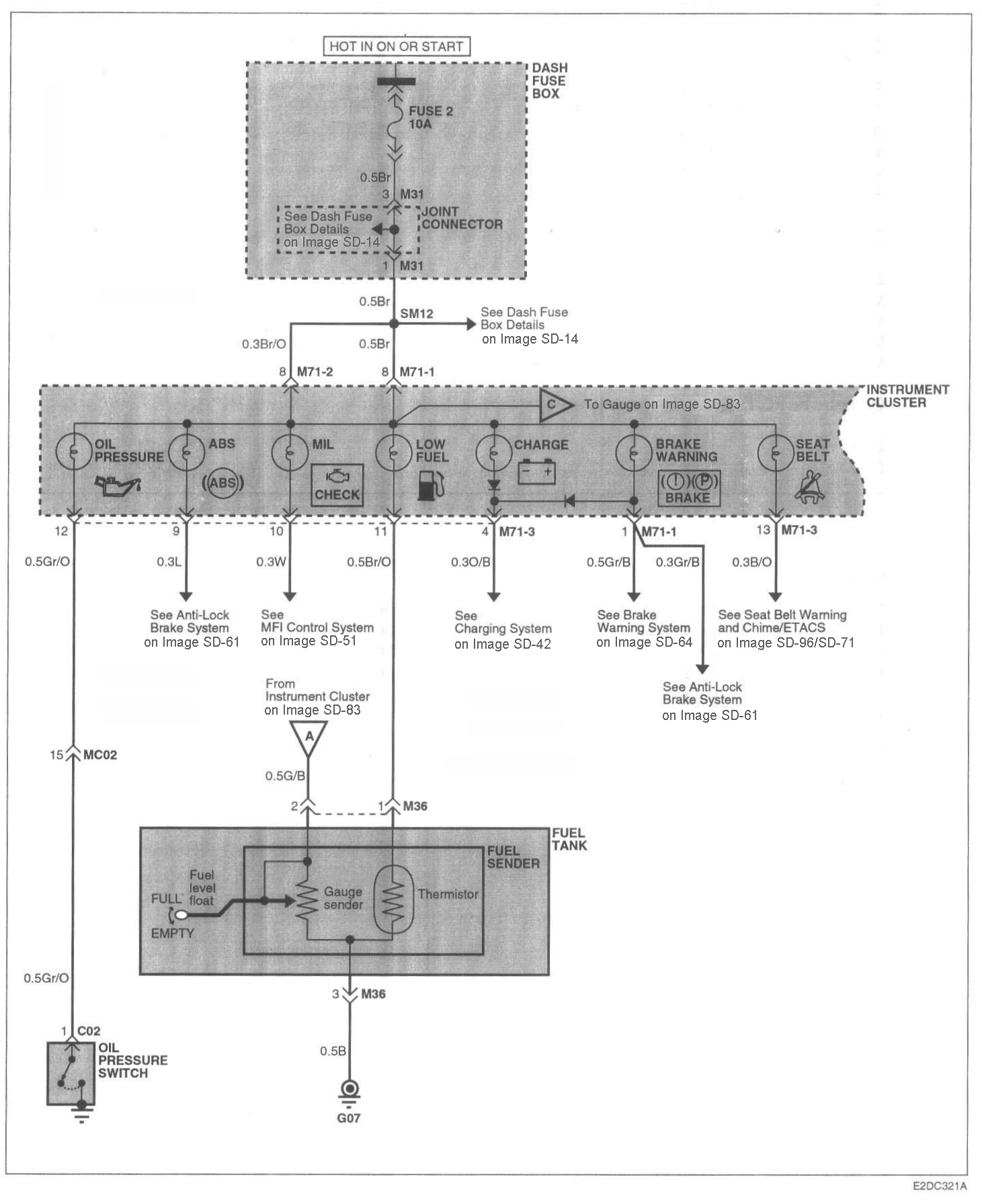

Image SD-83 Indicators And Gauges (4):
