Instrument Cluster / Carrier

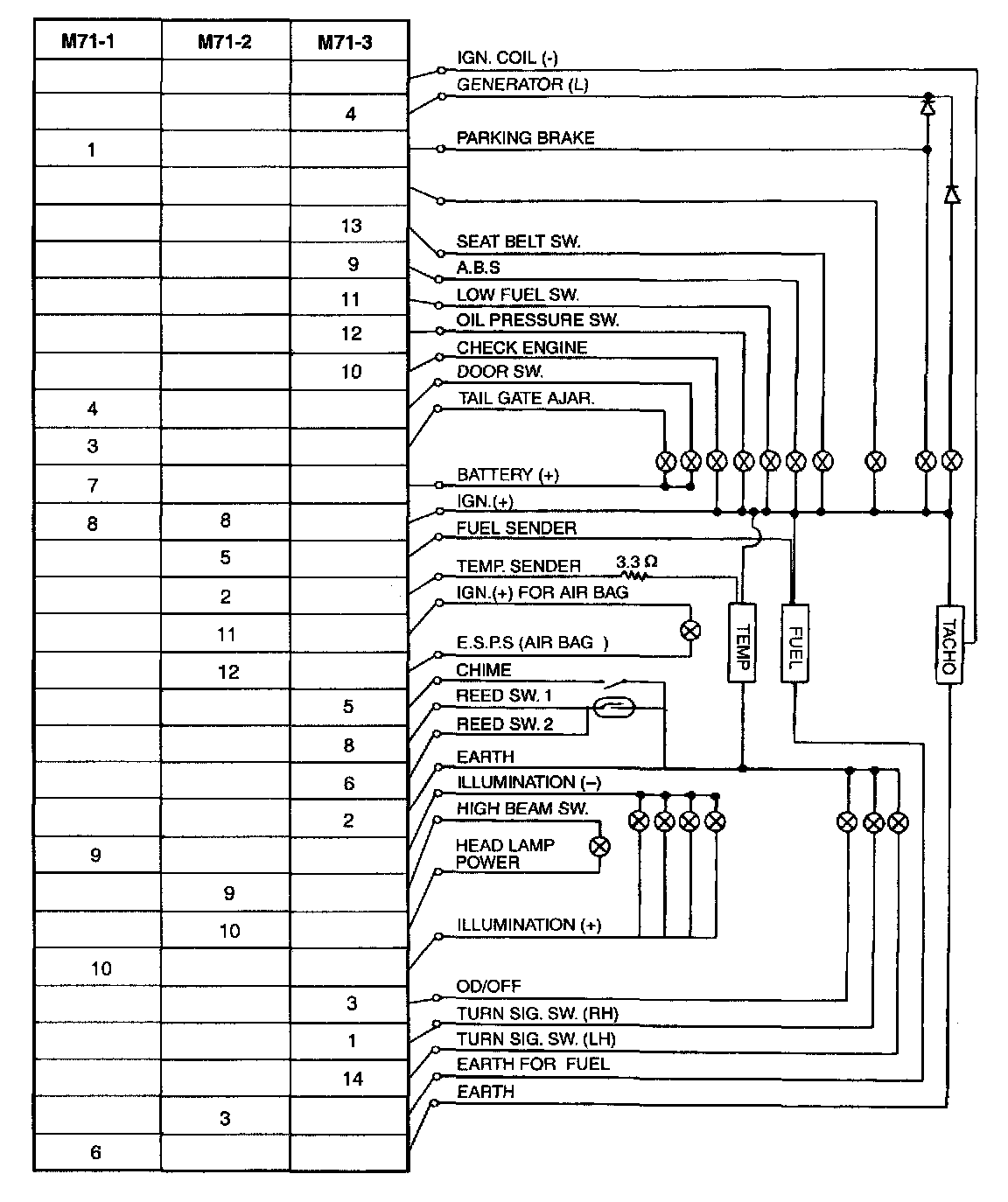

Circuit Diagram:

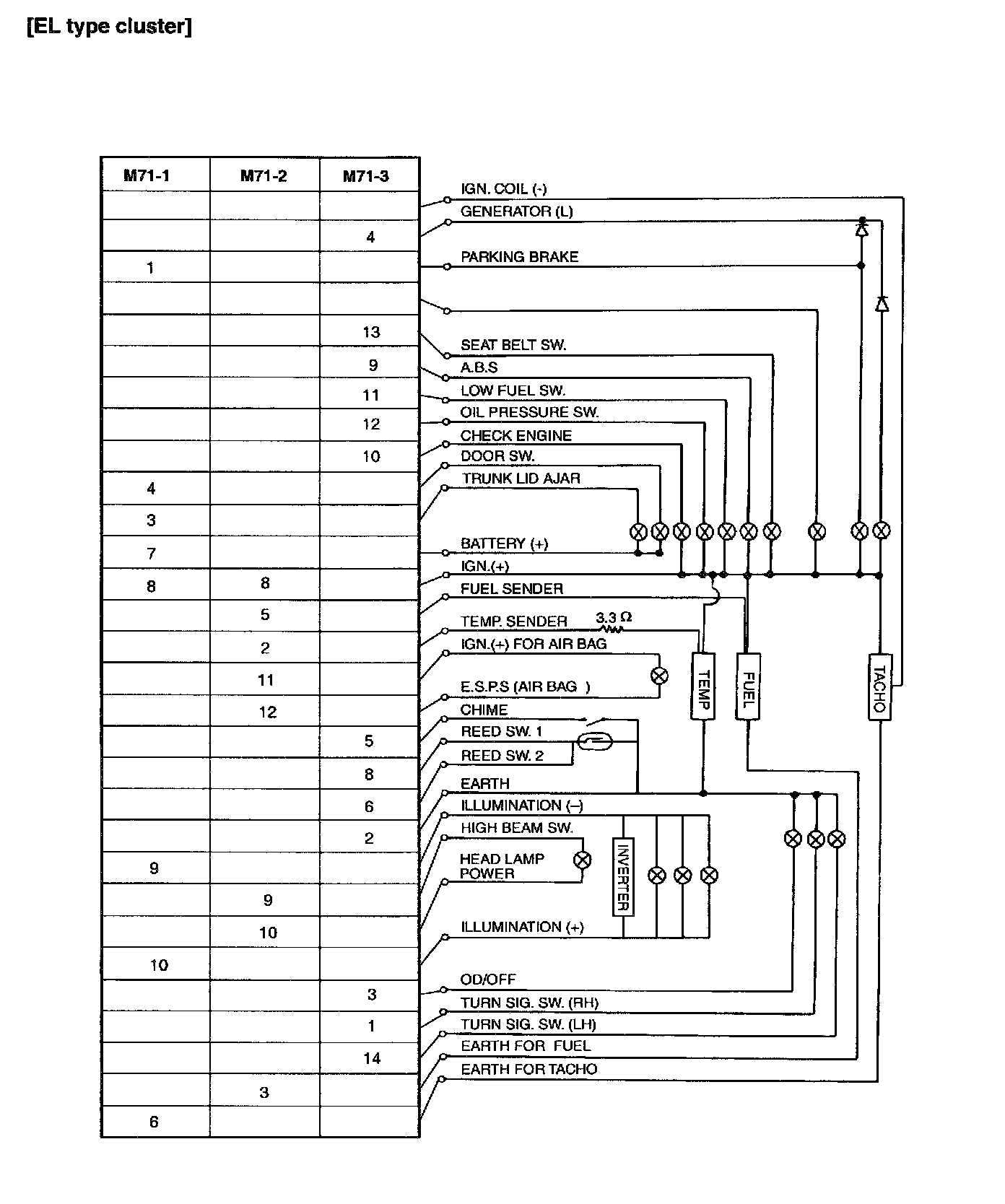

Circuit Diagram - EL Type Cluster:

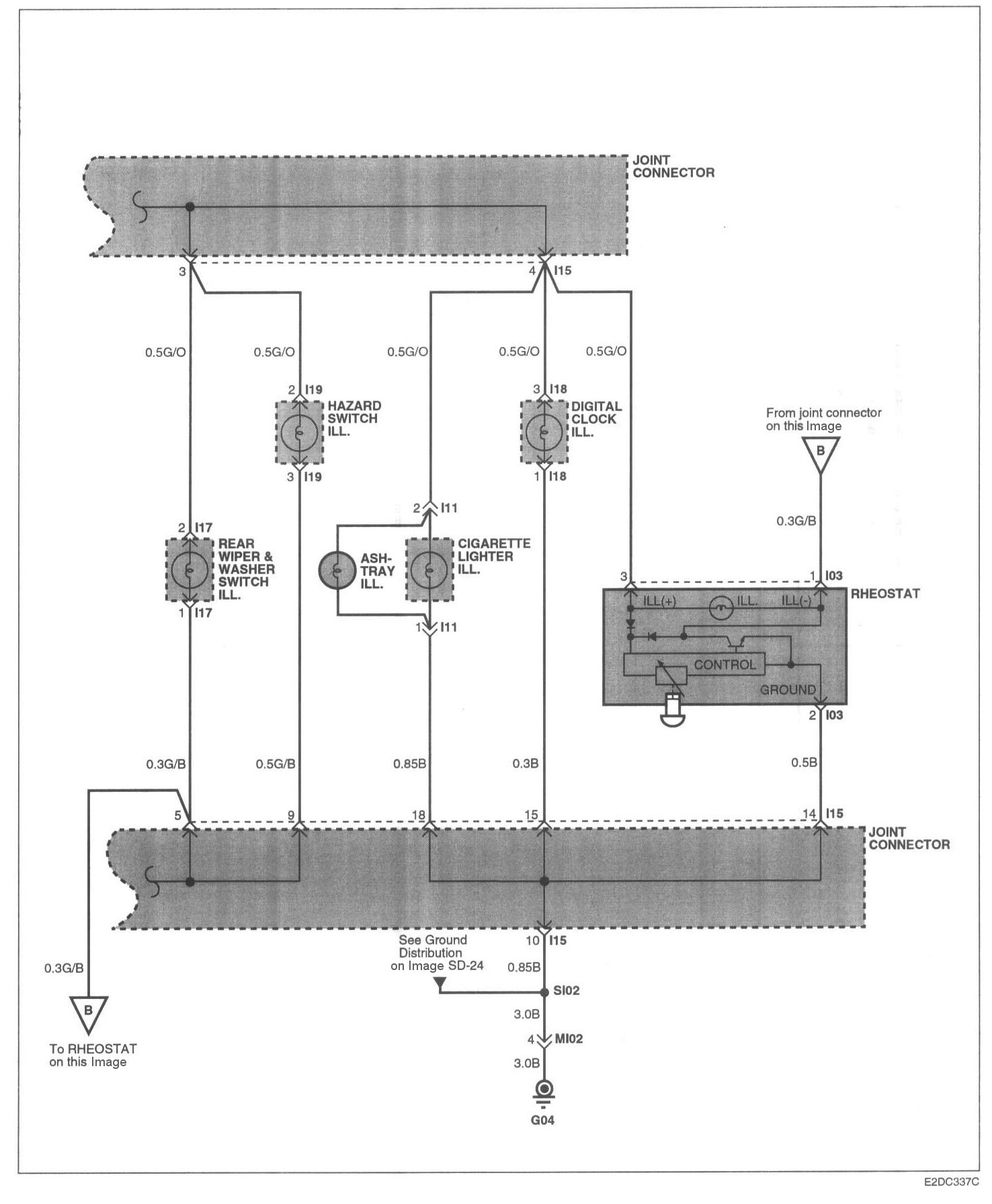

Illuminations (1):

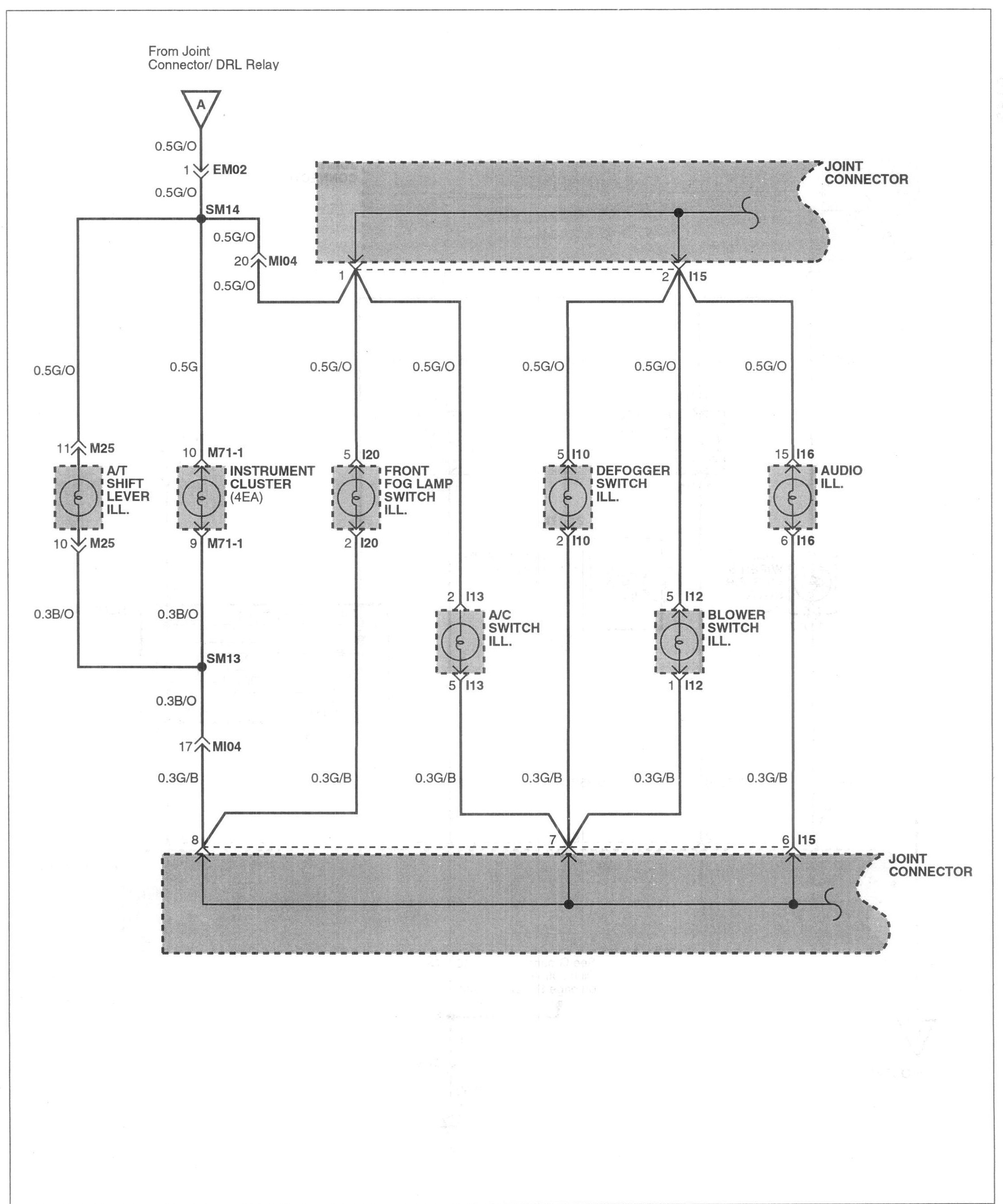

Illuminations (2):

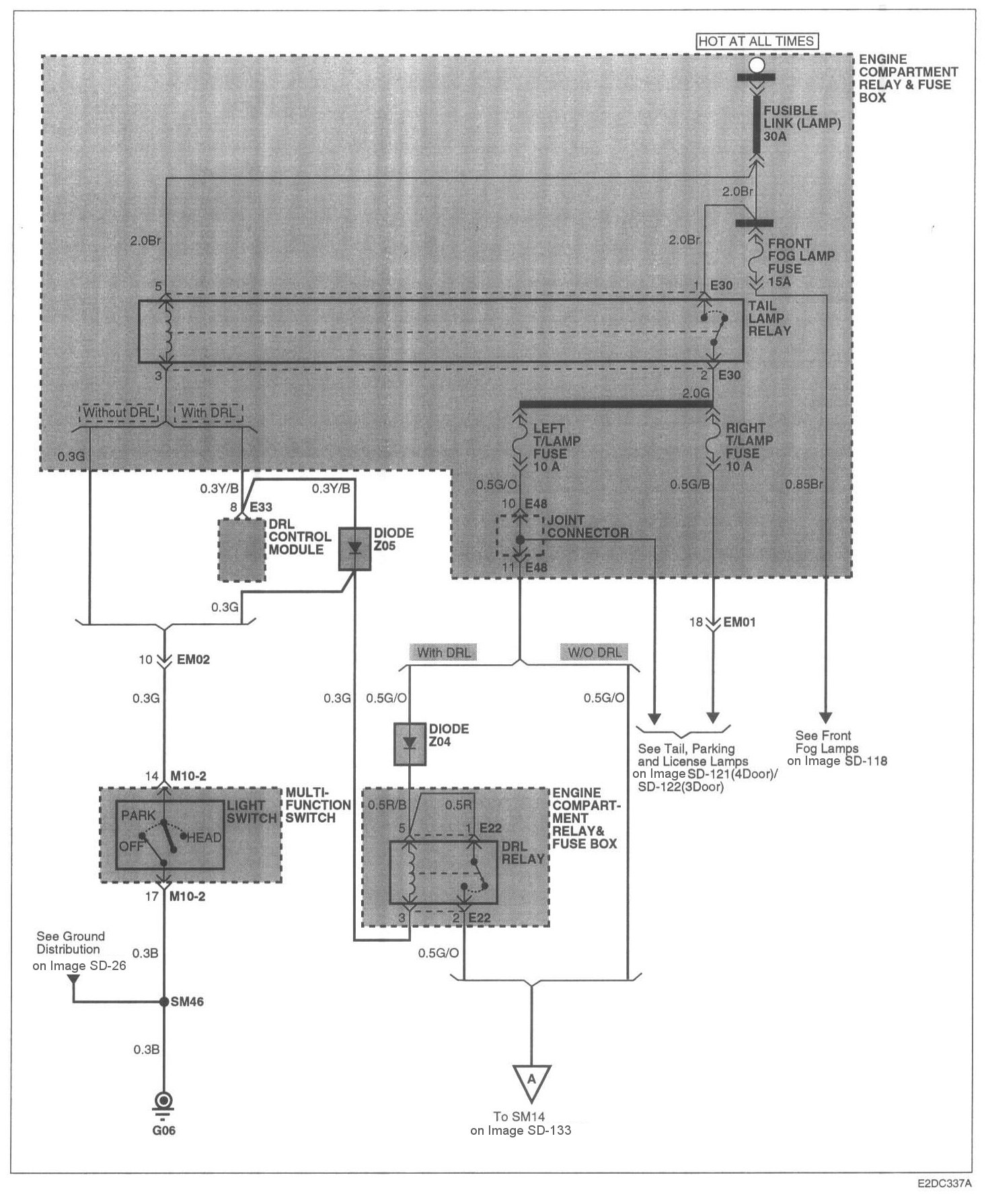

Illuminations (3):
