Home >> Hyundai >> 2002 >> Accent GL Hatchback L4-1.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> Audible Warning Device

Audible Warning Device

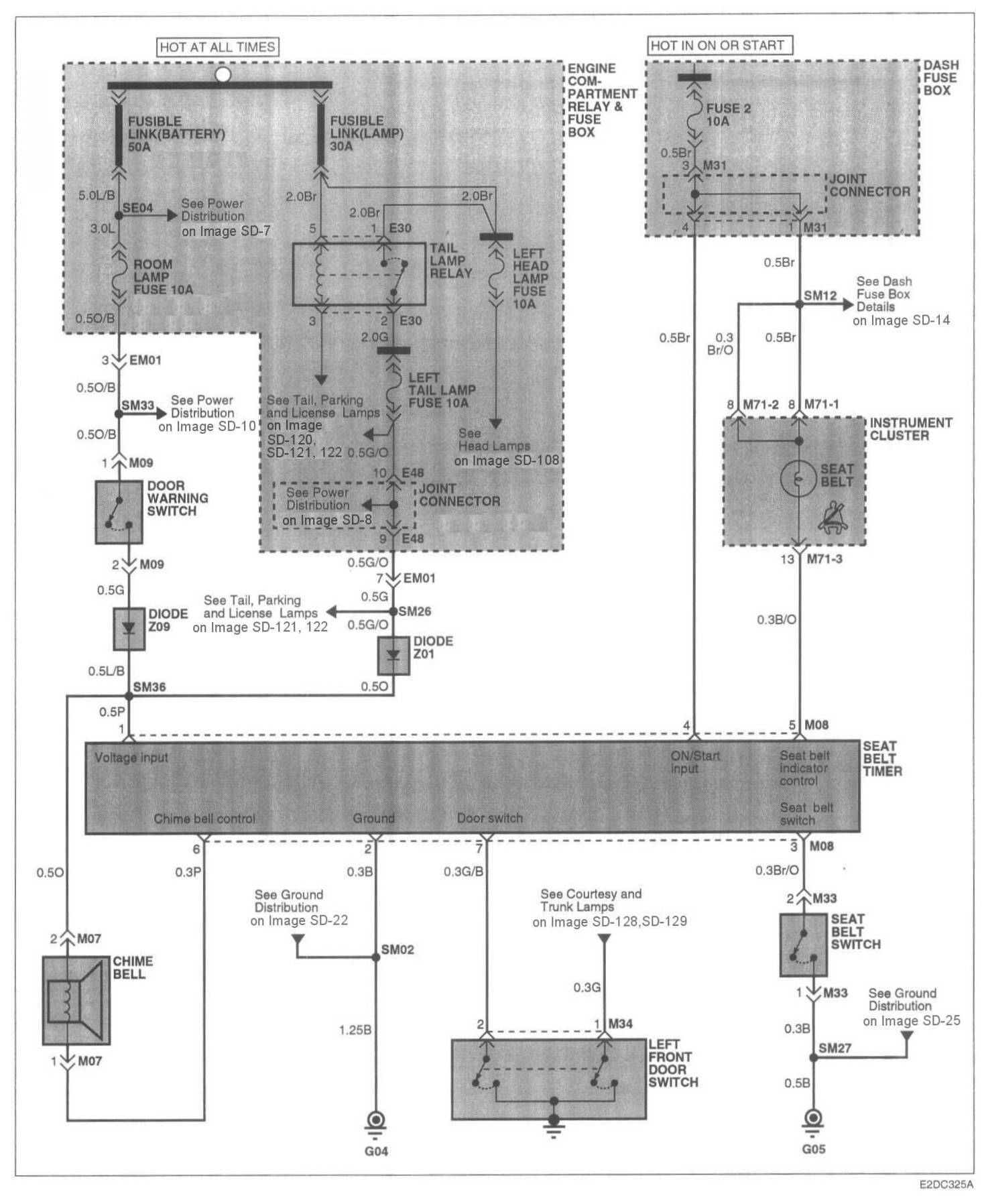

Image SD-96 Seat Belt Warning And Chime (Without ETACM) (1):
