Hyundai
>>
2002
>>
Accent GL Hatchback L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Automatic Transmission/Transaxle
>>
System Diagram
System Diagram

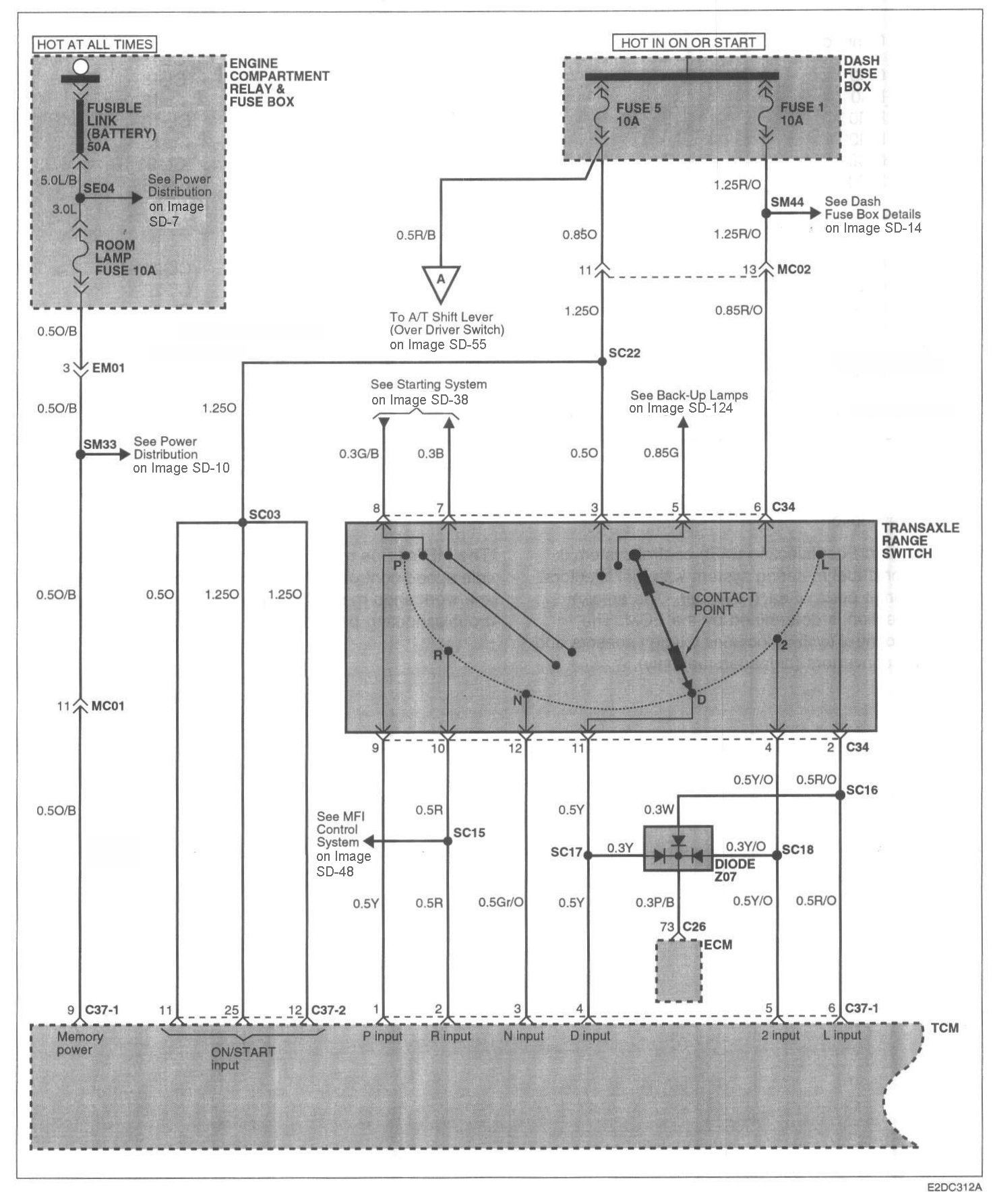

Image SD-54 Automatic Transaxle Control System (1):

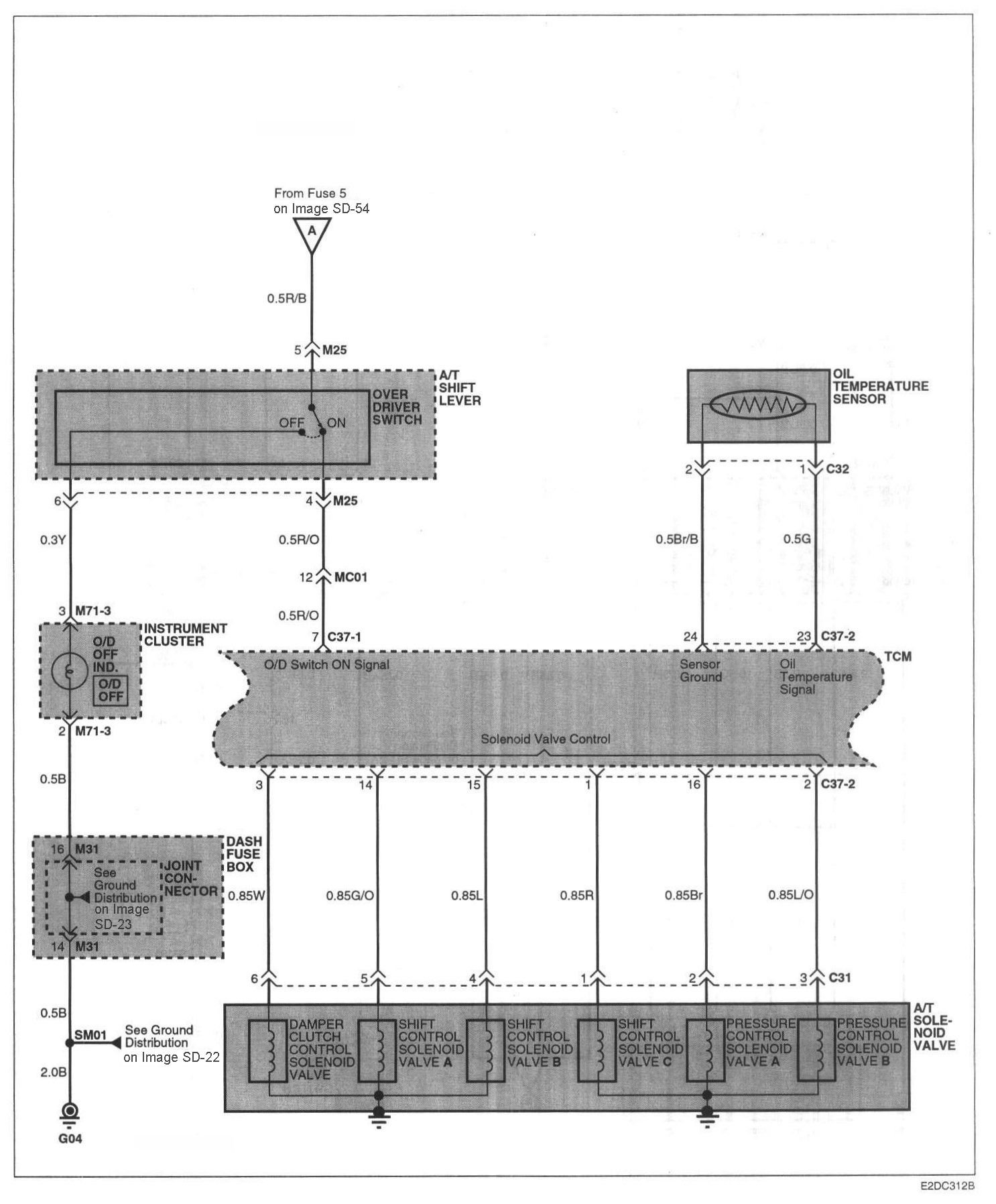

Image SD-55 Automatic Transaxle Control System (2):

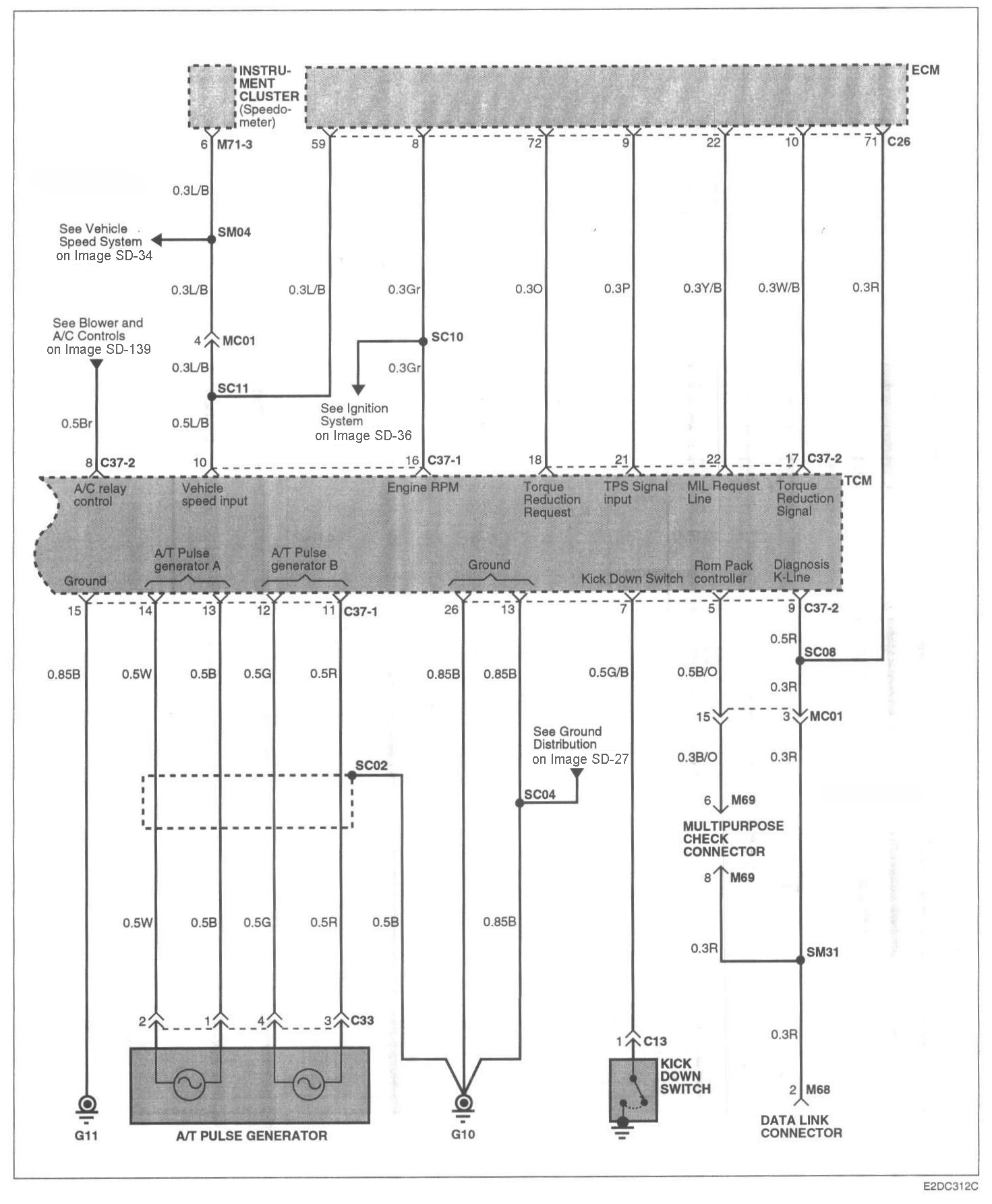

Image SD-56 Automatic Transaxle Control System (3):
