R Connectors (Tail Gate Harness)

R01 Rear Window Defogger (-)(3 Door):

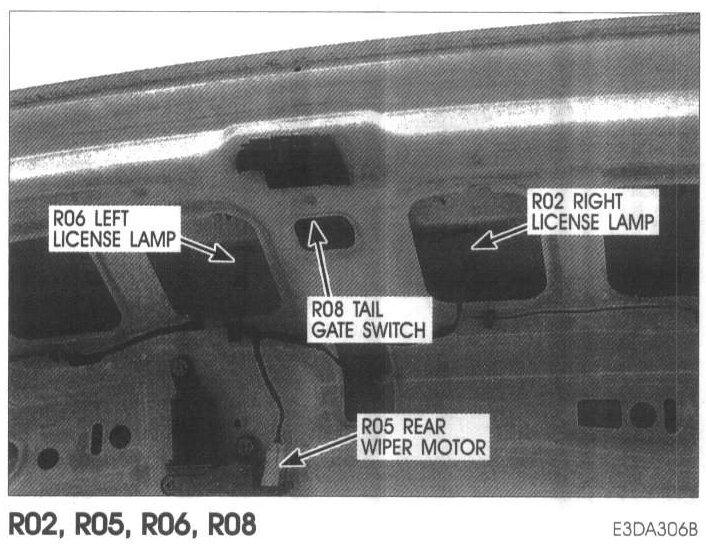

R02 Right License Lamp (3 Door), R05 Rear Wiper Motor, R06 Left License Lamp (3 Door), R08 Tail Gate Switch (3 Door):

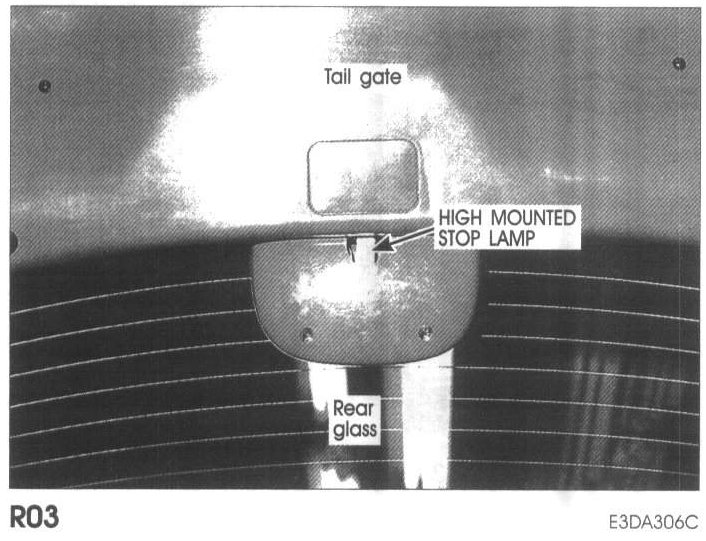

R03 High-mounted Stop Lamp (3 Door):

R07 Rear Window Defogger (+)(3 Door):

R09 Tail Gate Actuator:
