Removal and Installation

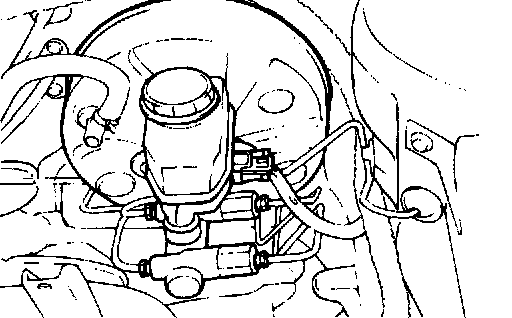

REMOVAL
1. Remove the fluid level warning device connector.
2. Disconnect the brake lines from the master cylinder, and plug the open ports.

CAUTION: Do not allow brake fluid to remain on a painted surface. Wash It off Immediately.





3. Remove the master cylinder mounting nuts. Disconnect the proportioning valve mounting bracket, then lift out the master cylinder.

INSTALLATION
1. Install the master cylinder on the brake booster with two nuts.
Nut: 8 - 12 Nm (80 - 120 kg-cm, 6 - 9 ft. lbs.)
2. Connect two brake tubes and fluid level warning connector.
Brake tube flare nut 13 - 17 Nm (130 - 170 kg-cm, 9 - 12 ft. lbs.)





3. Fill the master cylinder reservoir with brake fluid and bleed the system.
