Brake Pad: Testing and Inspection

FRONT DISC BRAKE PADS

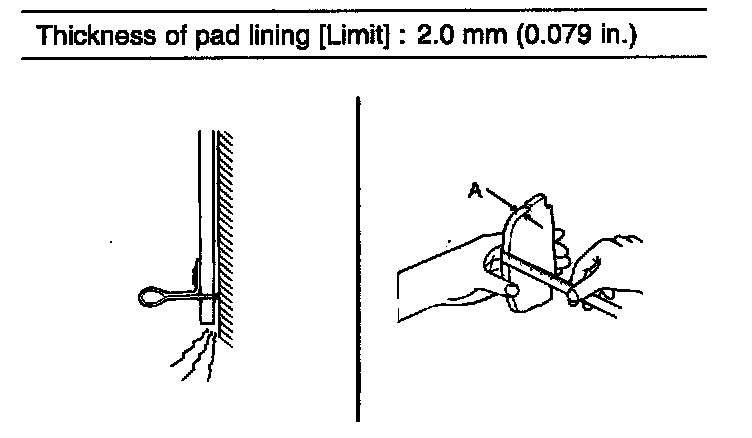

Check for fluid contamination and wear. Always replace brake pads in complete sets.

NOTE: If a squealing or scraping noise occurs from the brake during driving, check if the pad wear indicator is contacting the disc, if it is, the brake pad should be replaced.

CAUTION: The pads for the right and left wheels should be replaced at the same time. Never split or Intermix brake pad sets. All pads must be replaced as a complete set.
