Paint - Exterior Color Codes/Applications
Group: PAINTNumber: 01-99-001
Date: NOVEMBER, 2001
Model: ALL 2002 MODELS
Subject
2002 MY EXTERIOR COLOR CODES
AND APPLICATIONS
DESCRIPTION:
This TSB provides information on both new and carryover 2002 model year exterior colors. It includes paint codes, vehicle applications and paint manufacturers' stock numbers for the Accent, Elantra, Santa Fe, Sonata and XG350. The 2003 Tiburon colors will be released when they become available.
NOTE:

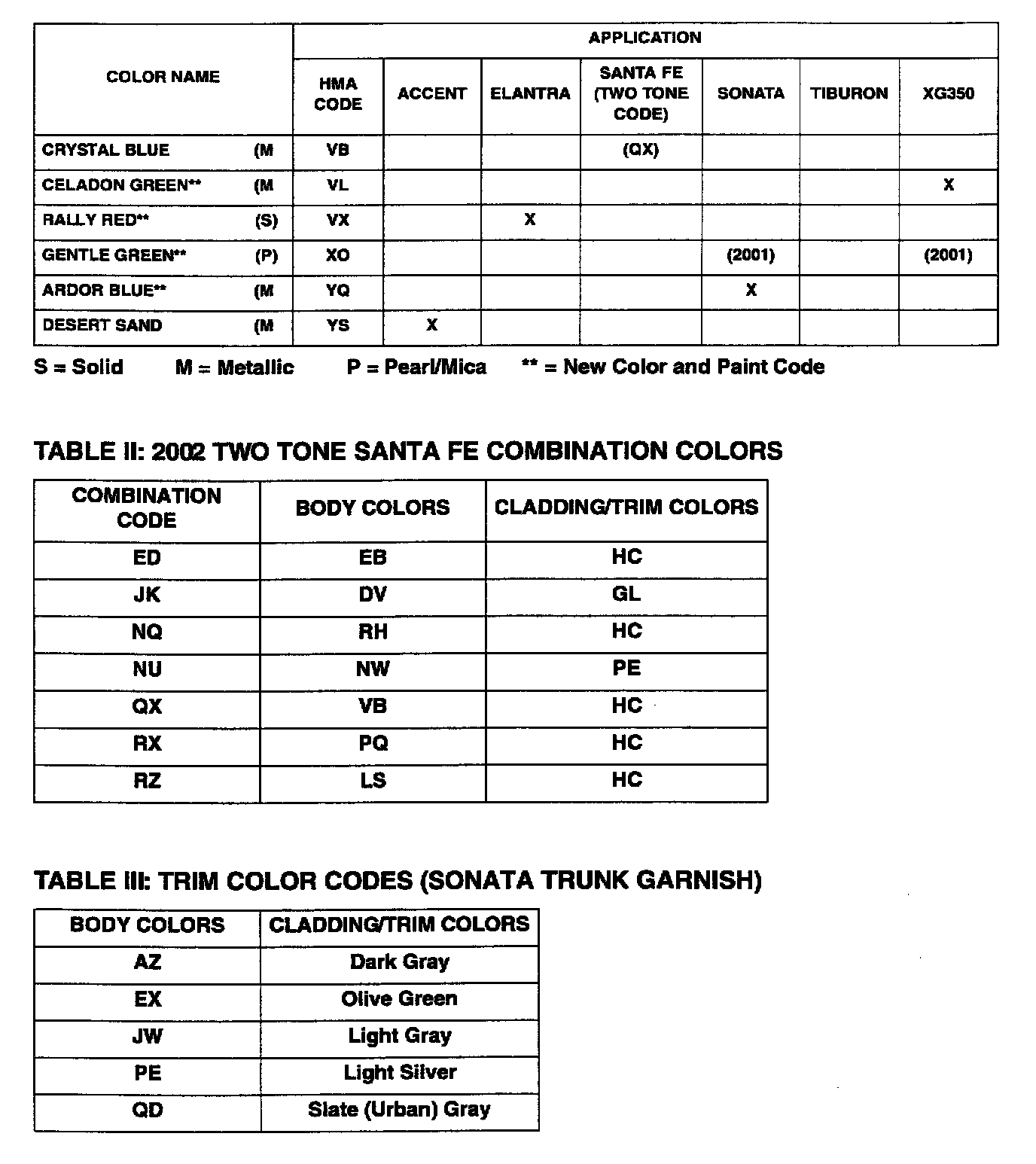

The Santa Fe paint codes are two tone colors. Refer to the two tone color table for the actual paint color codes.

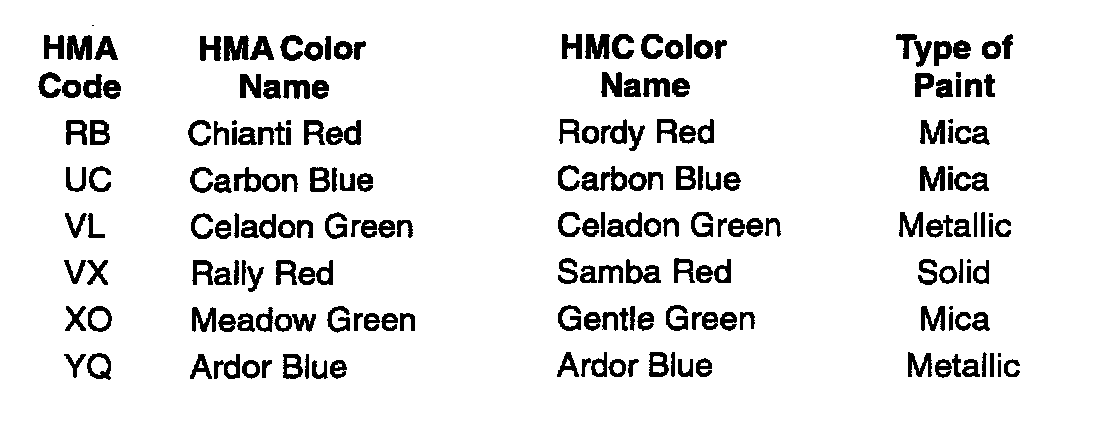

Five (5) new exterior colors have been added for 2002. They are as shown.
NOTE:
(XO) WB5 released late in the 2001 model year but will not be included in the 2002 color lineup.

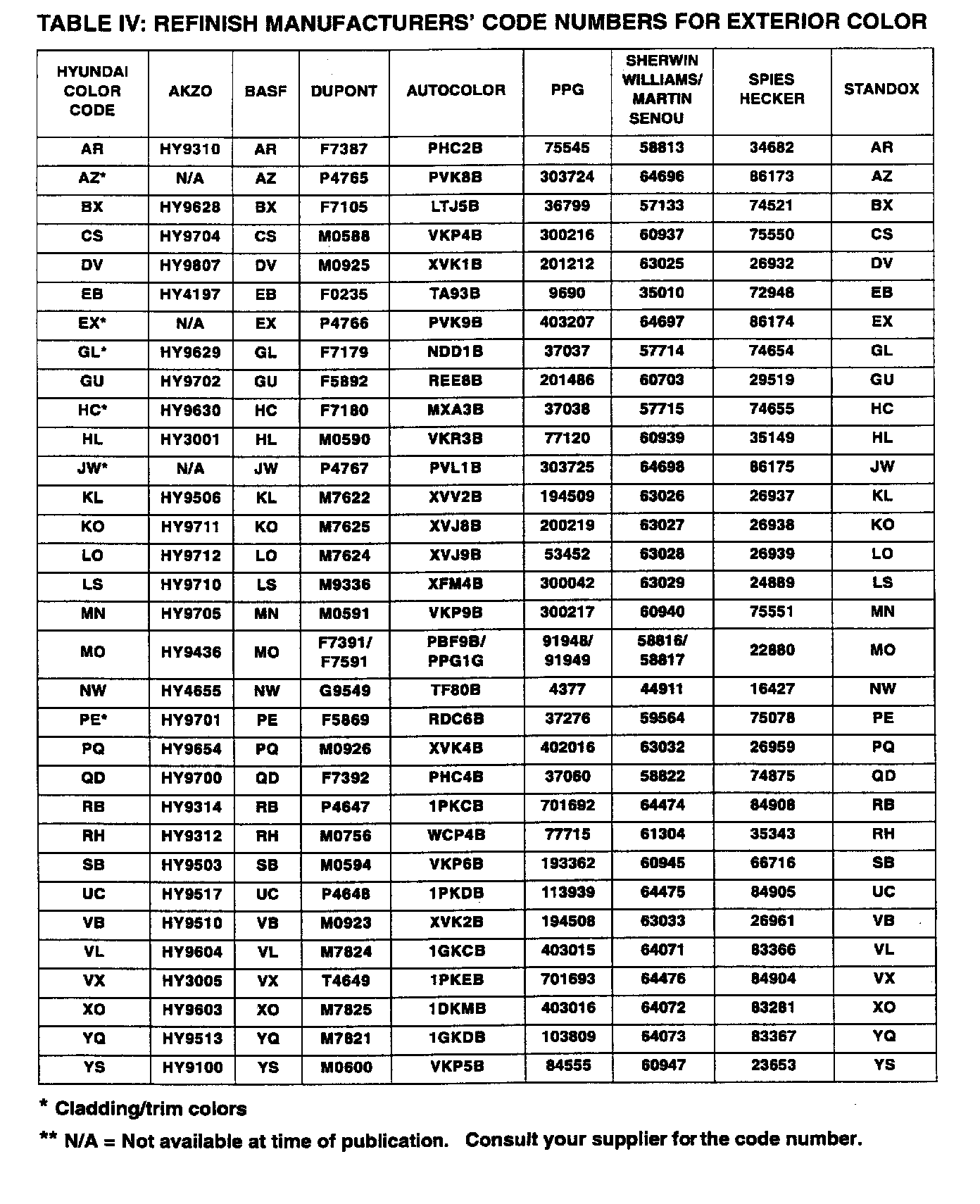

Refer to the tables when ordering refinishing materials from your local automotive paint dealer.
