Sunroof / Moonroof: Service and Repair

Sunroof:

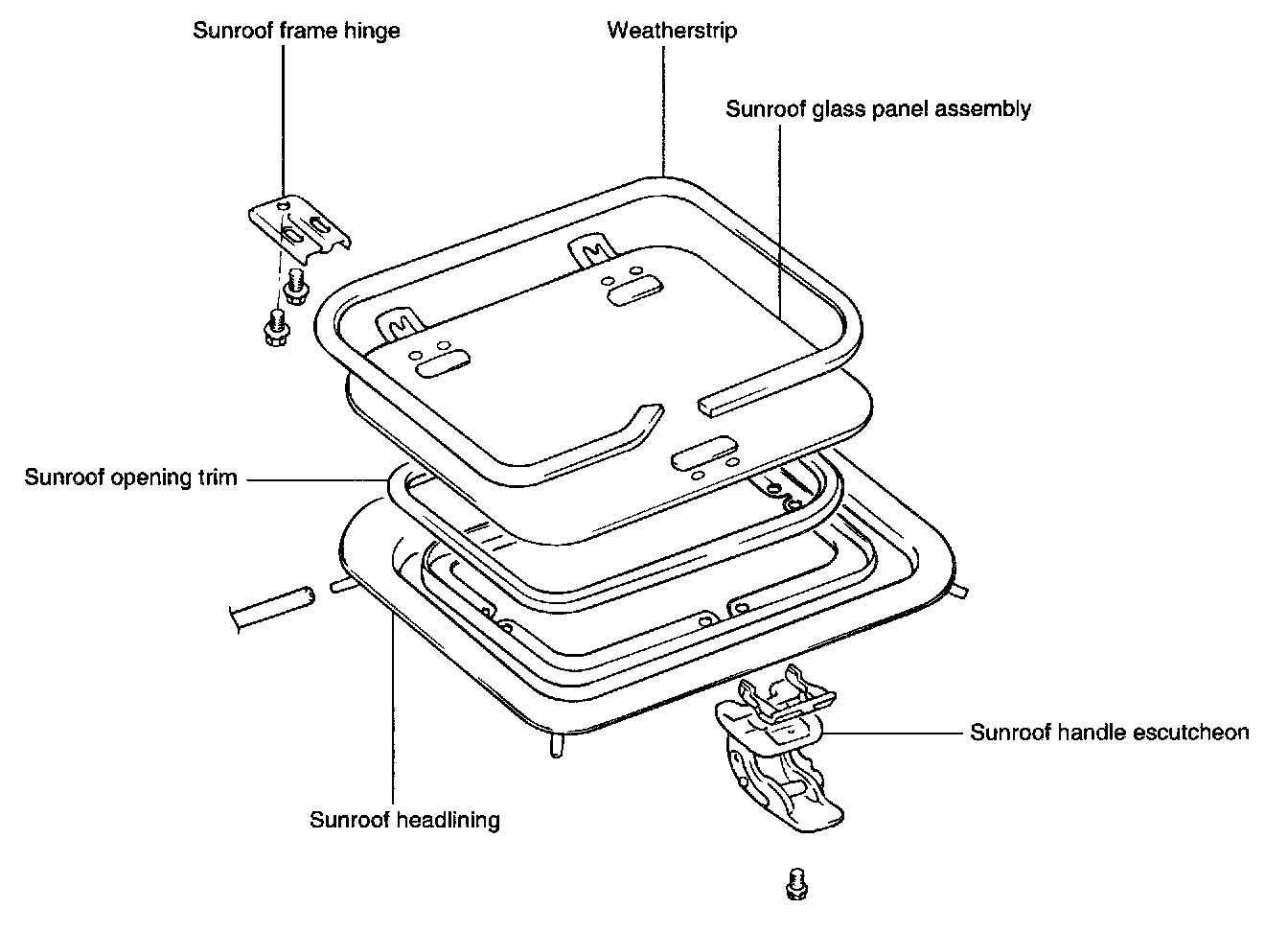

COMPONENTS

REMOVAL AND INSTALLATION
1. To remove the sunroof, first remove the following parts:
1. Overhead console lamp assembly
2. Sunvisor and inside rear view mirror
3. Front pillar trim
4. Roof assist handle

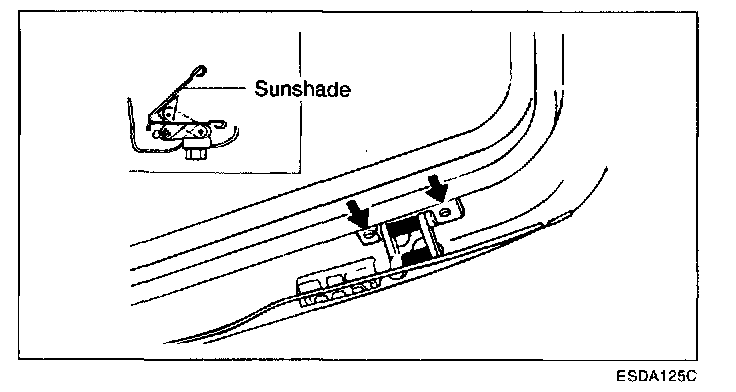

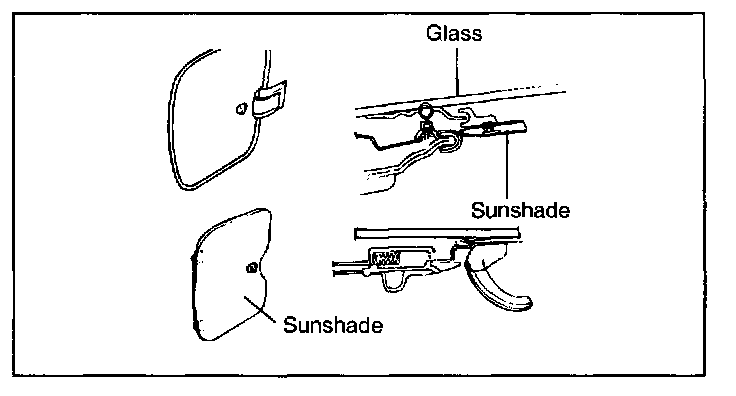

2. Remove the sunshade assembly from the sunroof glass.

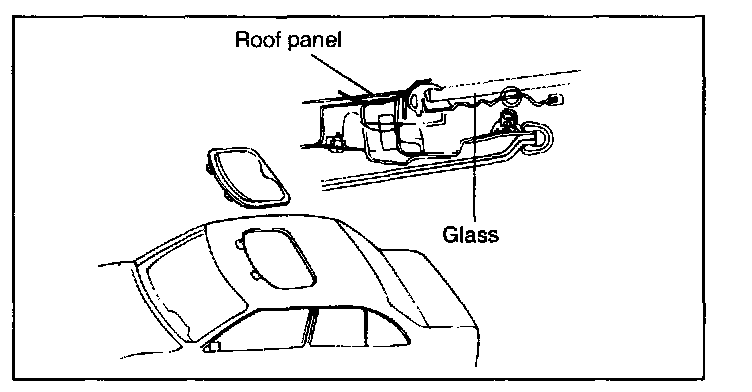

3. Remove the sunroof glass assembly from the frame hinge.

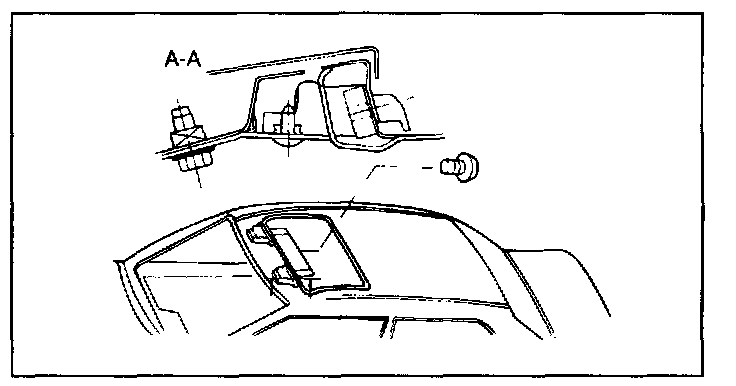

4. Remove the sunroof deflector.

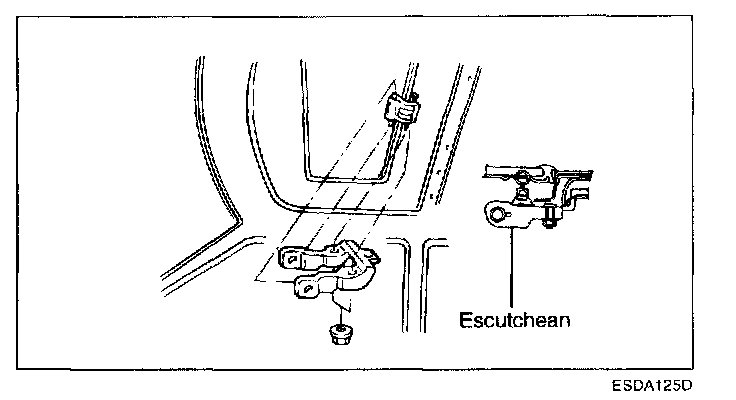

5. Remove the sunroof handle escutcheon and the sunroof handle base plate.




6. Remove the sunroof frame hinge.




7. Installation is the reverse of removal.

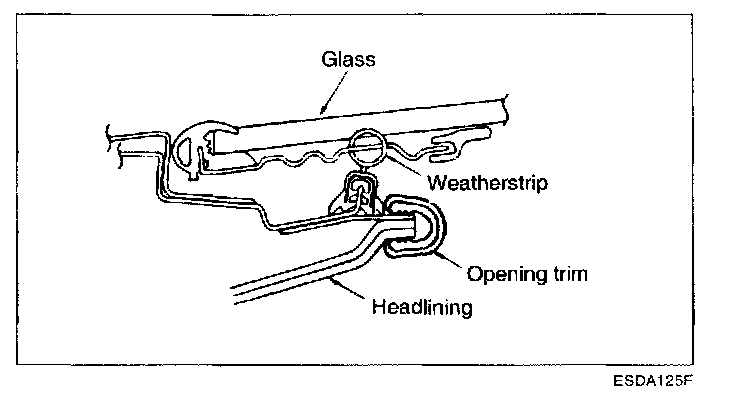

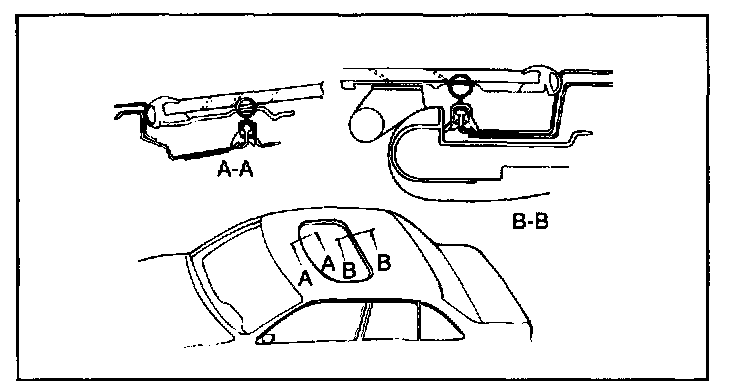

8. When installing the sunroof opening trim, make sure that there is no gap between the trim and the headlining.
