Power Mirror Motor: Testing and Inspection

D02, D12:

MIRROR ACTUATOR
1. Disconnect the connector from the mirror.

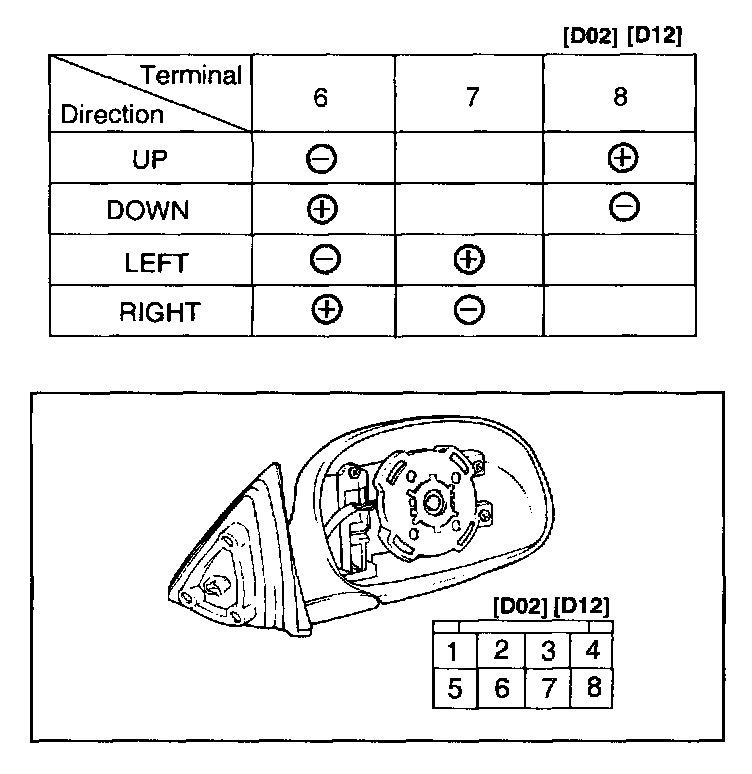

2. Check that the actuator operates correctly as per the table.
