Electrical Diagrams

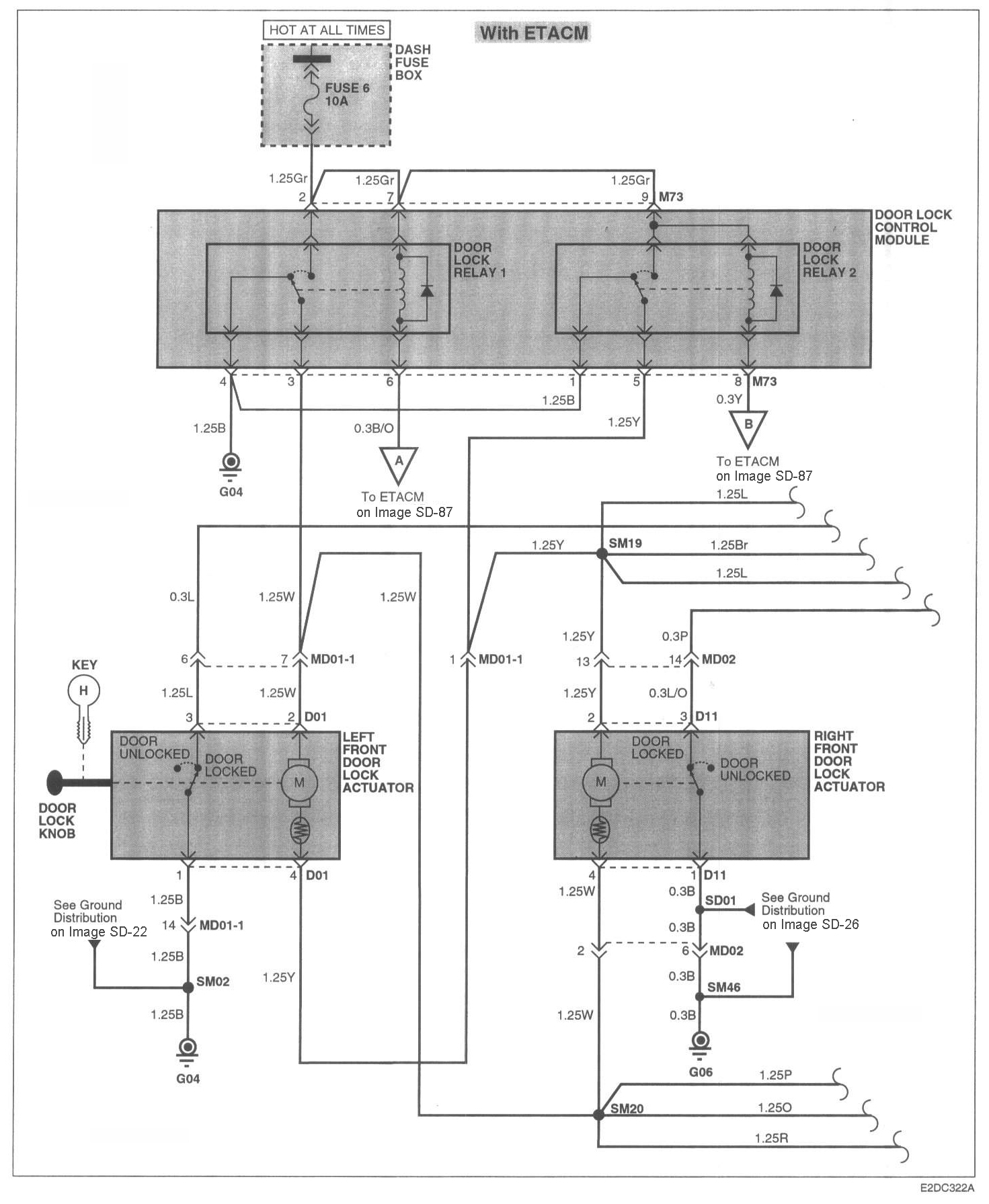

Image SD-86 Power Door Locks (1):

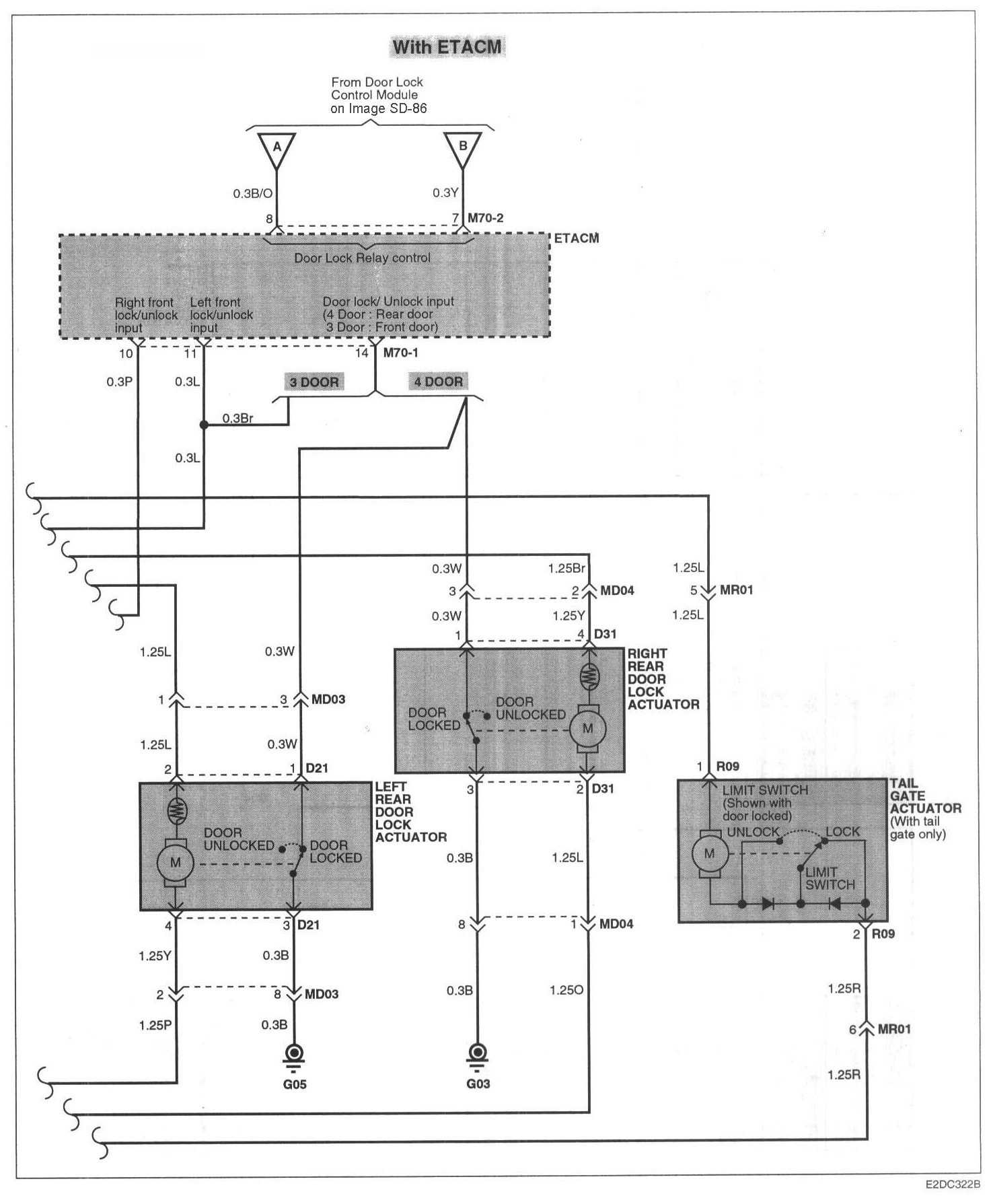

Image SD-87 Power Door Locks (2):

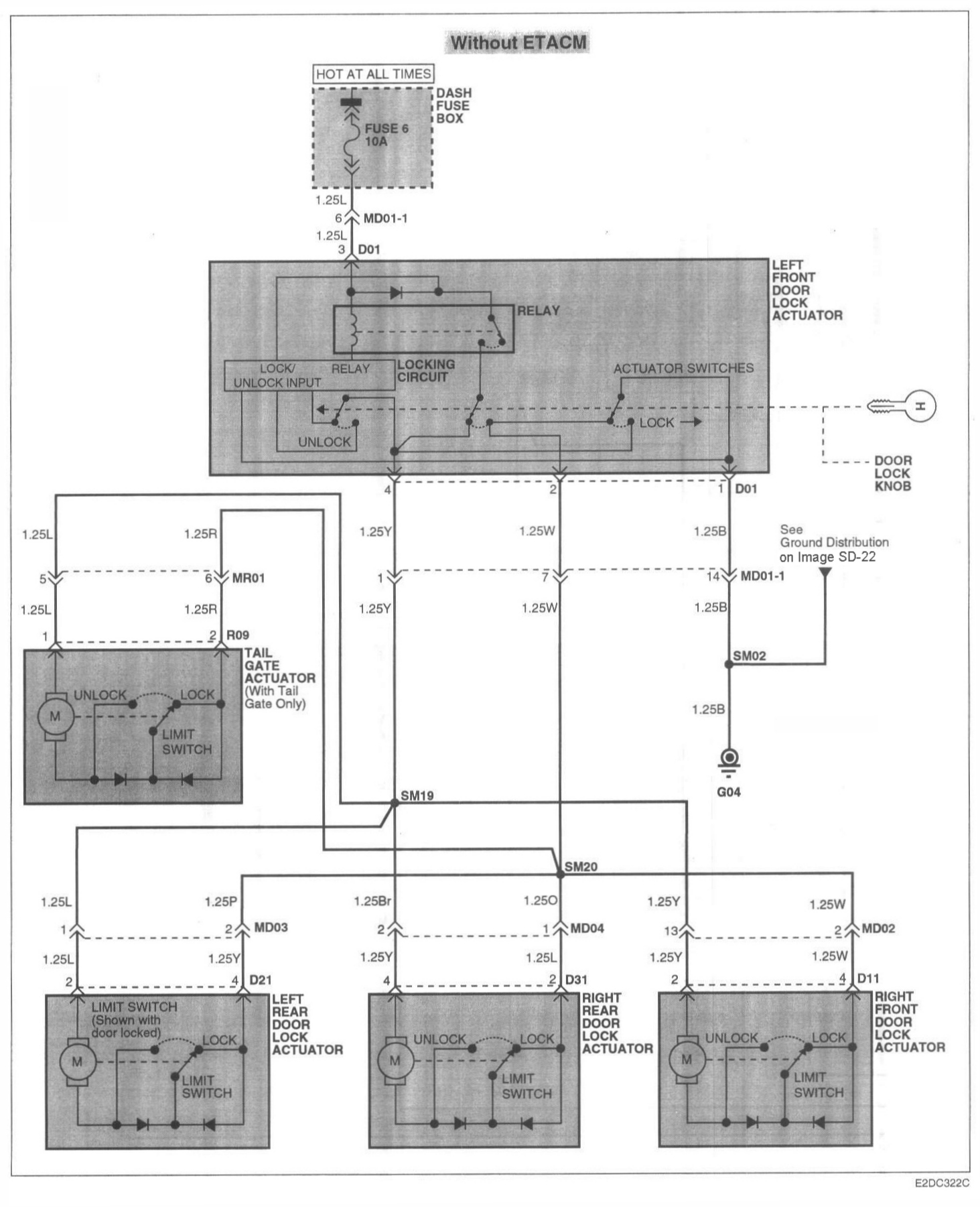

Image SD-88 Power Door Locks (3):
