Removal and Replacement

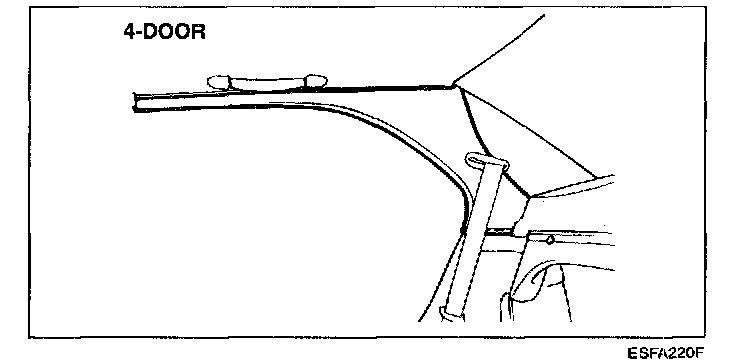

FRONT PILLAR TRIM

Interior Trim:

COMPONENTS

REMOVAL




1. Remove the front pillar trim with a screwdriver.

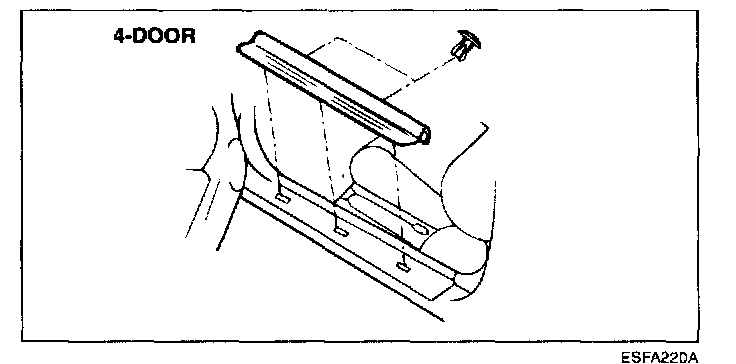

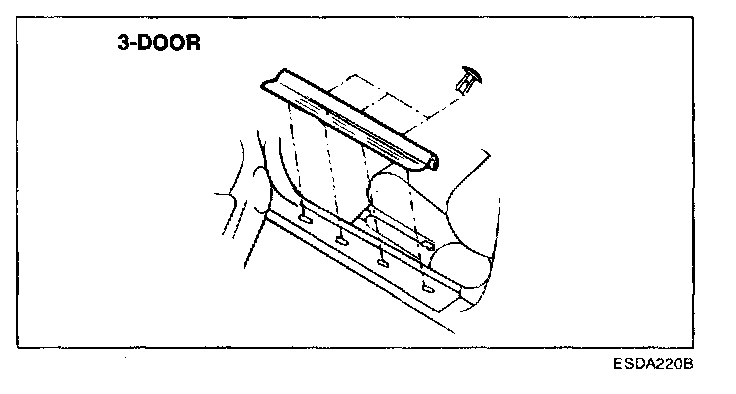

DOOR SCUFF TRIM
1. Remove the plugs from the door scuff trim.







2. Remove the door scuff trim.

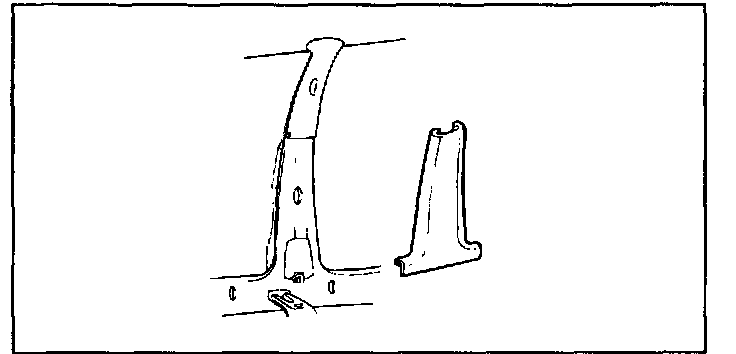

CENTER PILLAR TRIM
1. Remove the center pillar lower trim.
2. Remove the front seat belt upper anchor plate mounting bolt.




3. Using a flat tip (-) screwdriver remove the center pillar upper trim.

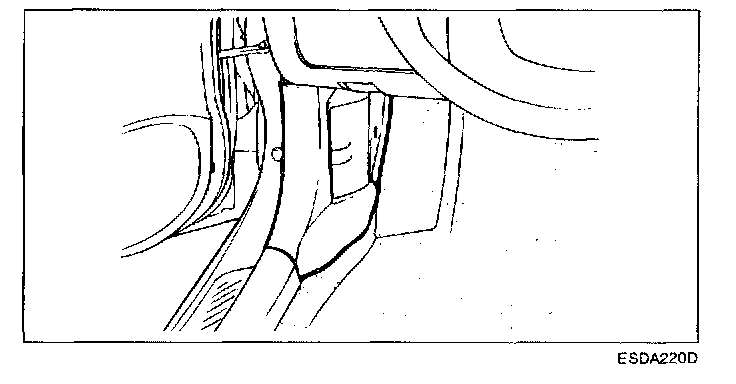

COWL SIDE TRIM




1. Remove the cowl side trim mounting screws, and then remove the cowl side trim.

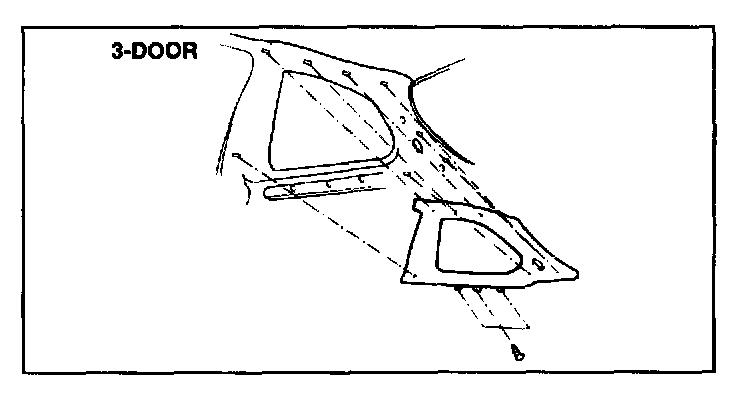

REAR PILLAR TRIM
1. Remove the bolt from the rear seat lower anchor.
2. Remove the quarter trim.







3. Using a flat tip (-) screwdriver, remove the rear pillar trim.
