Dashboard / Instrument Panel: Service and Repair

CRASH PAD










REMOVAL AND INSTALLATION

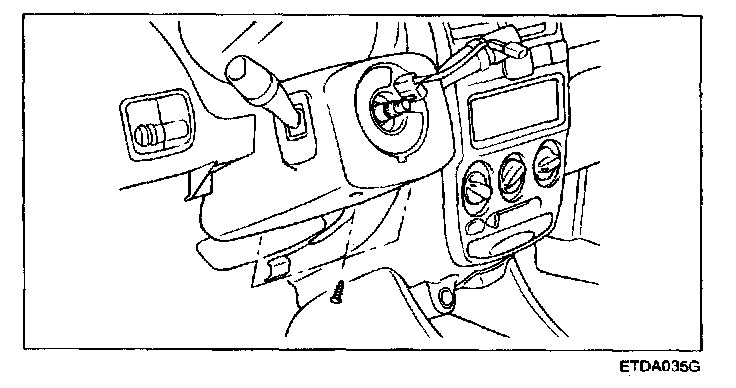

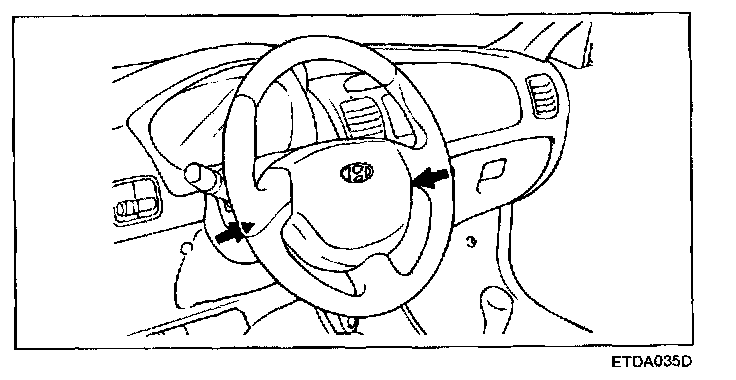

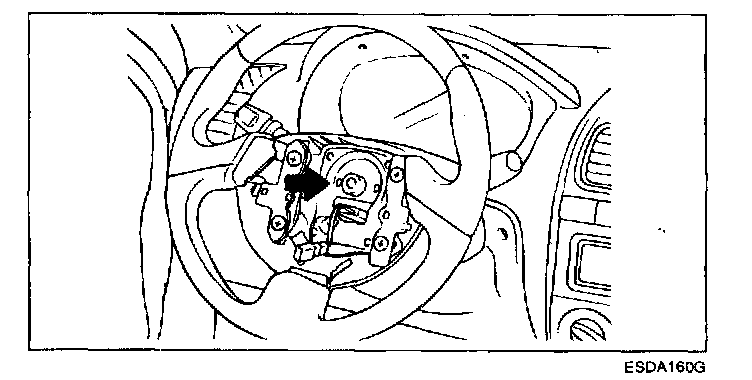

1. Remove the steering wheel, steering column lower and upper shroud.

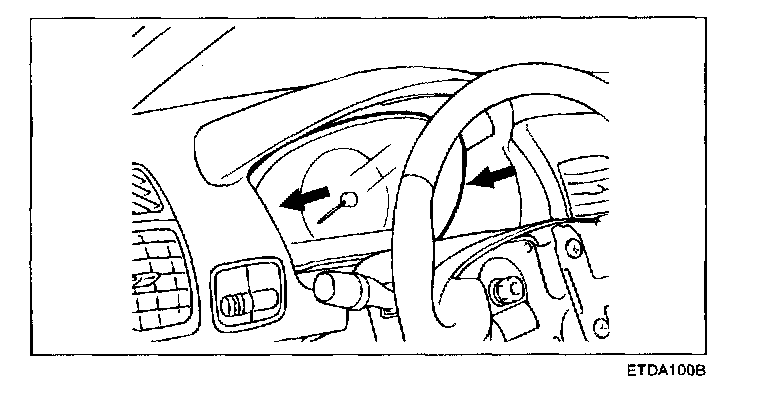

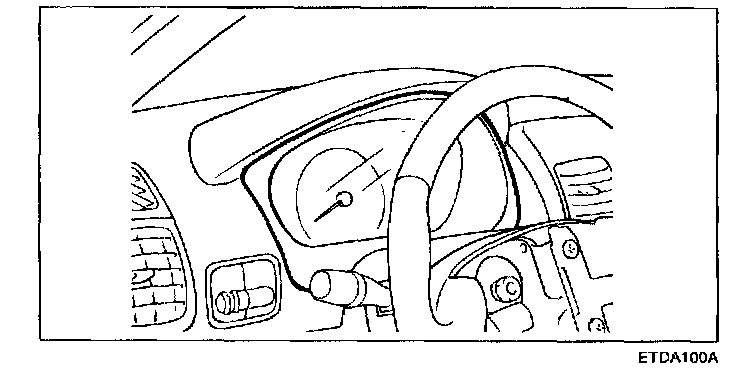

2. Remove the cluster facia and instrument cluster.

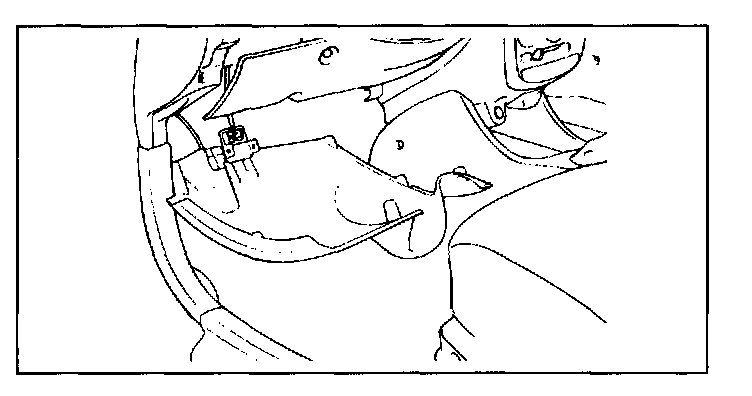

3. Remove the driver side lower crash pad panel and lower reinforce panel and hood release cable.

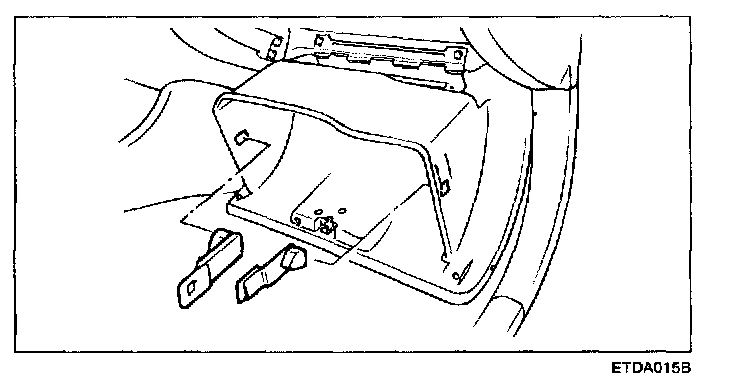

4. Remove the glove box assembly.

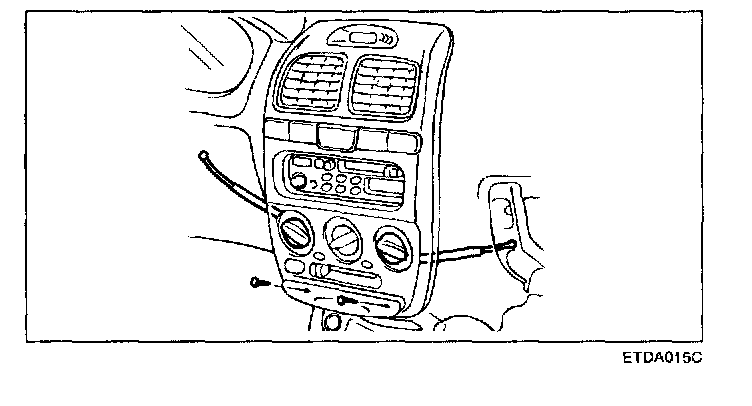

5. Disconnect the air temperature control cable and disconnect the connectors.

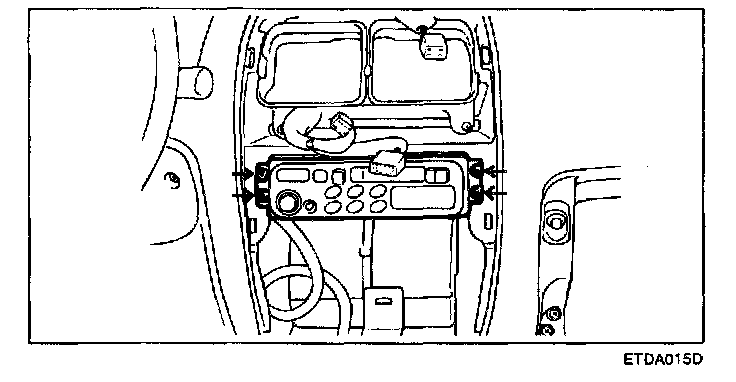

6. Remove the radio and disconnect the connectors.

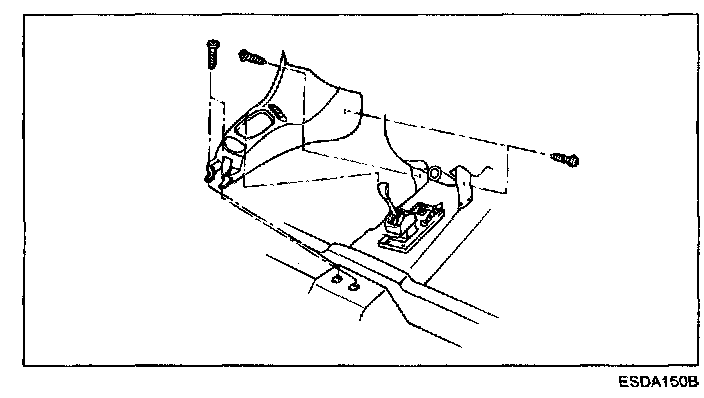

7. Remove the console.

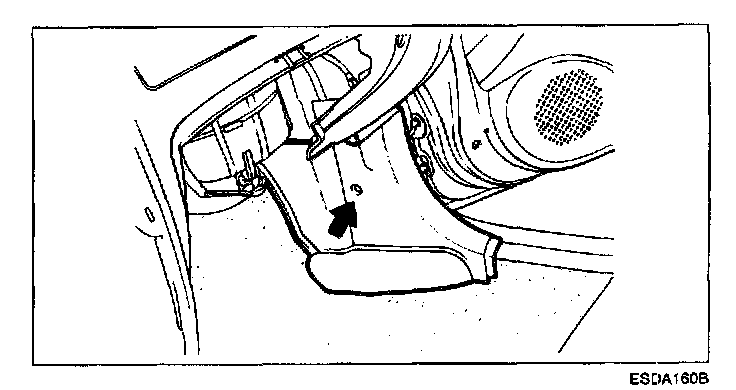

8. Remove the door scuff trims and cowl side trims.

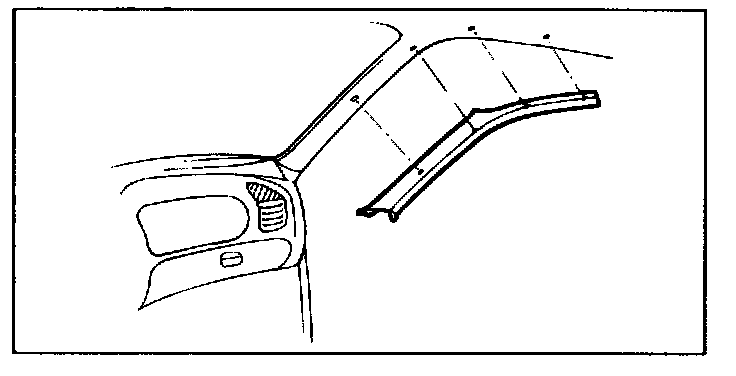

9. Remove the front pillar trims.

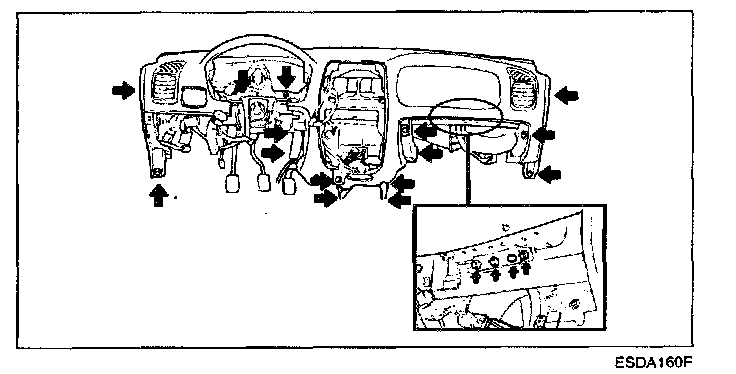

10. Loosen the bolts and disconnect the connectors and remove the main crash pad.
11. Installation is the reverse of removal and connect all connectors securely.
