Trunk / Liftgate: Service and Repair

REMOVAL AND INSTALLATION

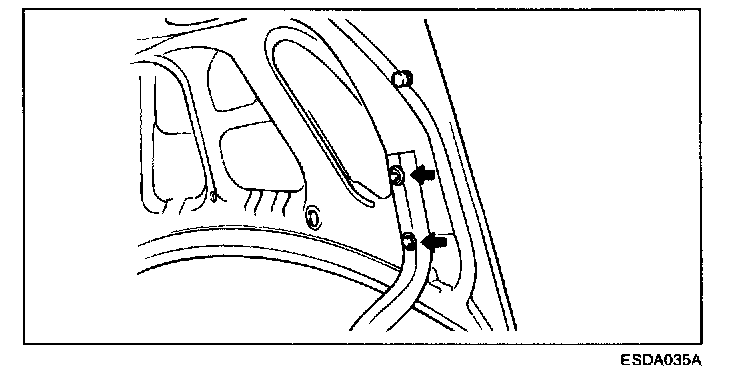

1. Loosen the trunk lid hinge mounting bolts and remove trunk lid.

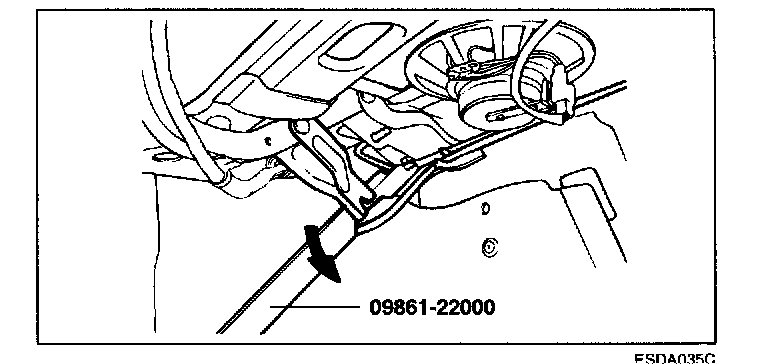

2. Remove the torsion bar by using the torsion bar wrench (09861-22000) as shown in the illustration.

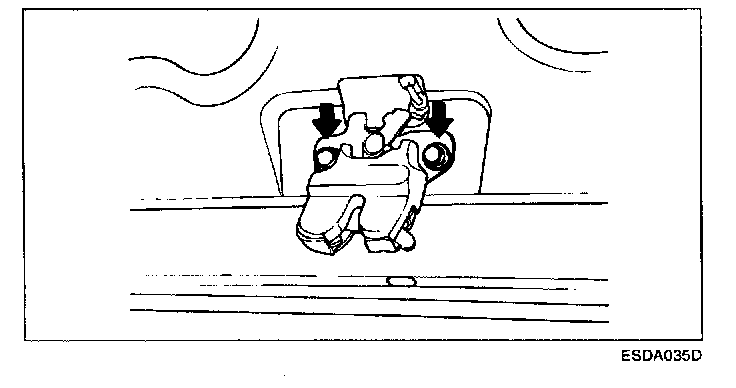

3. Remove the trunk lid latch and trunk lid lock.
4. Installation is the reverse of removal.
