Tailgate
Tailgate
1.

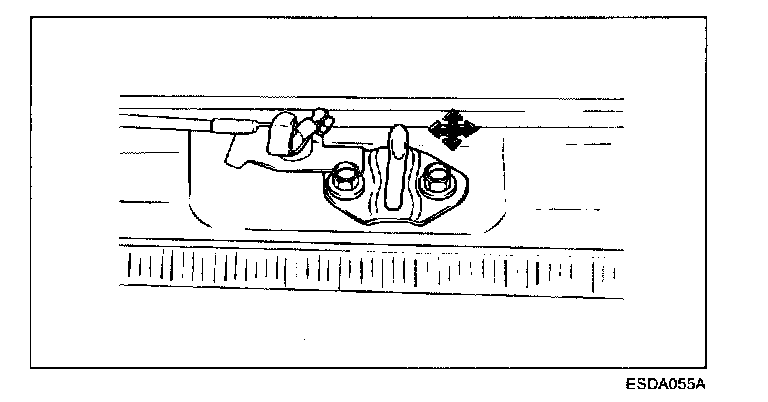

Adjust the striker up or down, and right or left until the
tailgate
is flush with the rear edge of the body.
2.

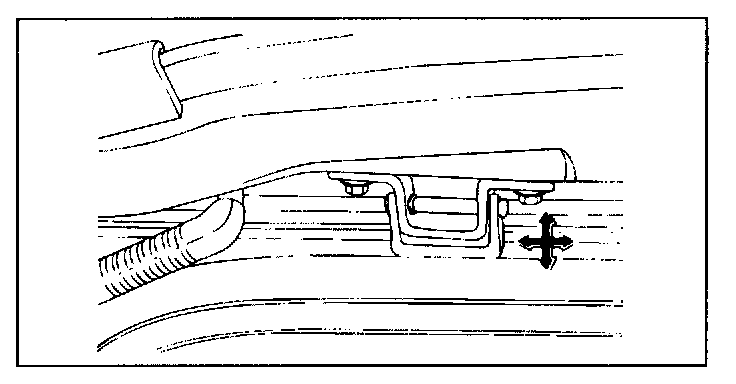

Adjust the tailgate hinges up or down, and right or left as necessary to equalize the gap between the
tailgate
and body.
