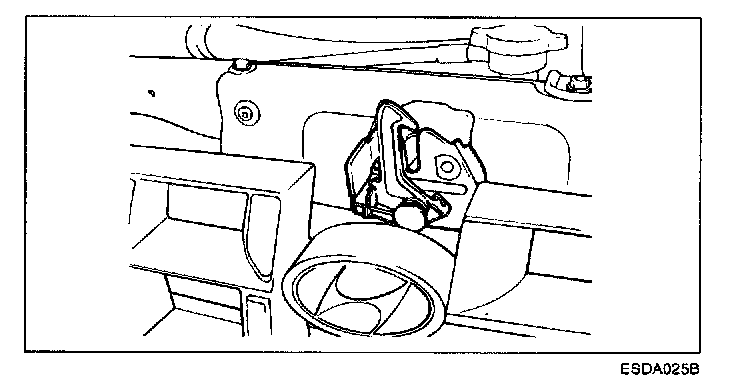

Hood Latch: Adjustments
1.
Loosen the
hood latch
mounting bolts.
2.
Adjust the alignment of the
hood latch
by adjusting the longitudinal and lateral position of the latch, and by adjusting the height of the
hood
.
