Rear Door: Service and Repair

REAR DOOR

REMOVAL AND INSTALLATION




1. Using a piece of cloth, remove the door window regulator handle. (Manual type only)

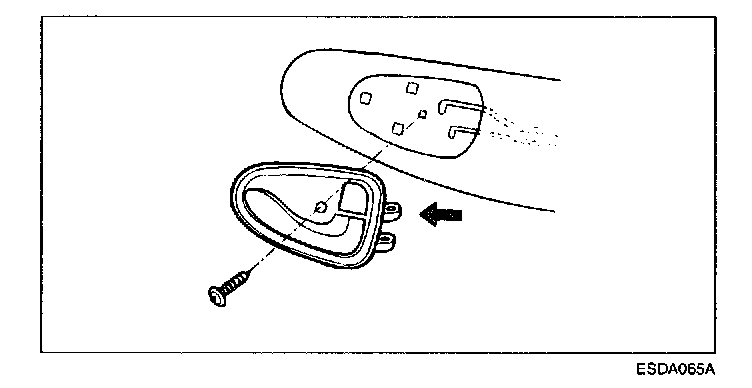

2. Loosen the inside handle mounting screw and then push the inside handle toward the door hinge. Separate the inside handle from the door trim.

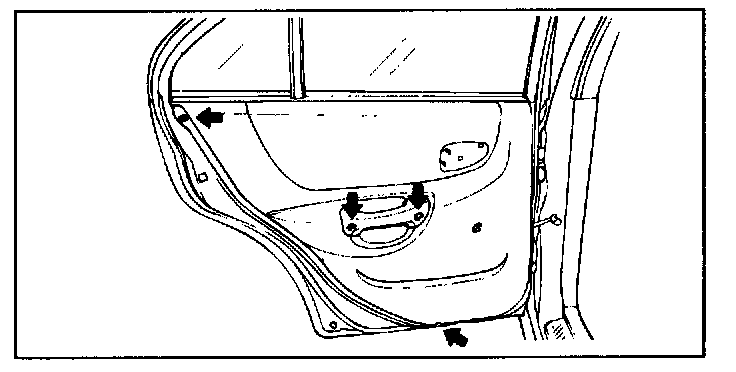

3. Remove the trim panel mounting screws.




4. Insert a trim remover between the trim fasteners and the door panel to pry off.

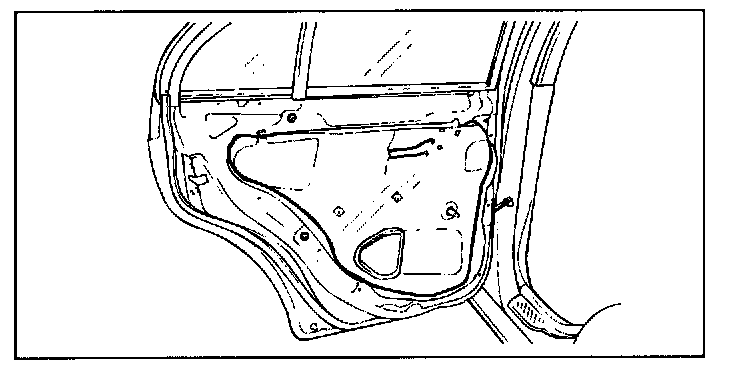

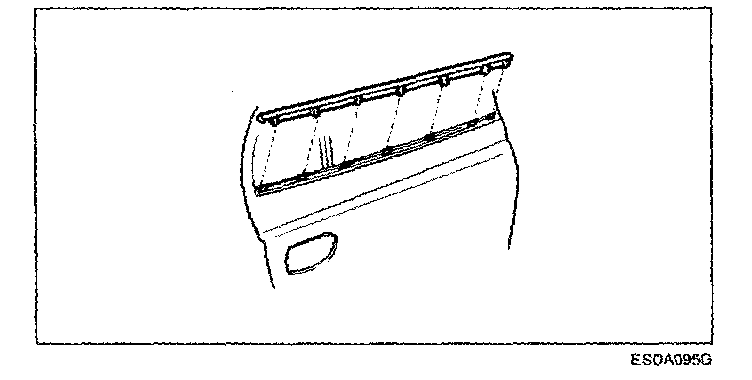

5. Remove the door trim seal and lower the window glass.

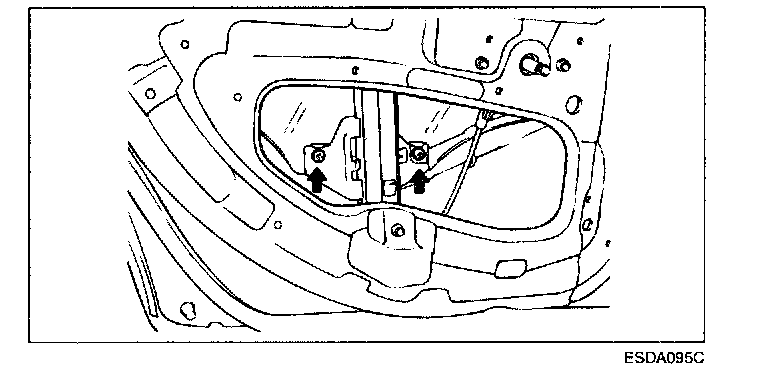

6. Remove the carrier plate screws from the regulator channel.

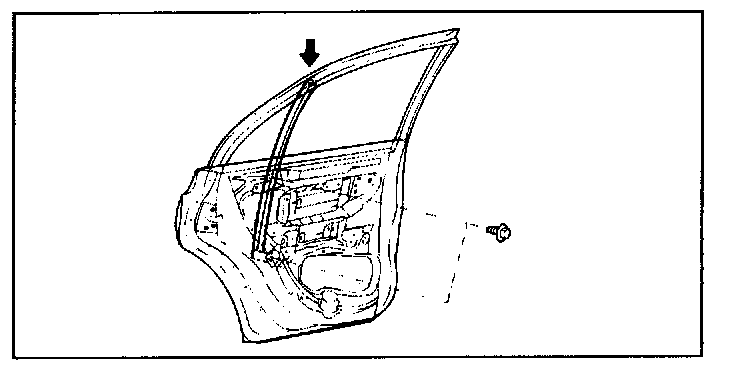

7. Loosen the fixing screws and the division channel bolts.

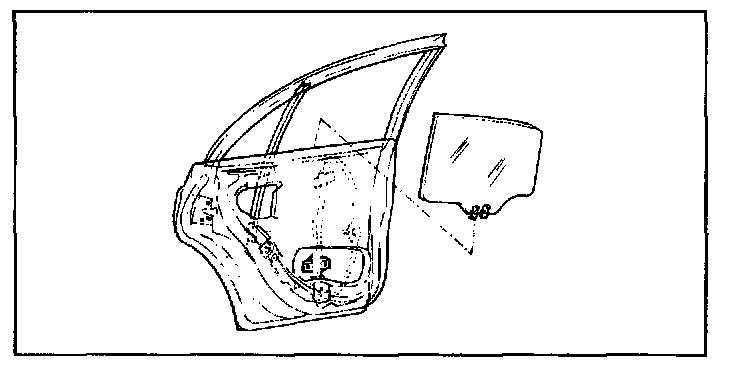

8. Remove the fixed glass and window glass.

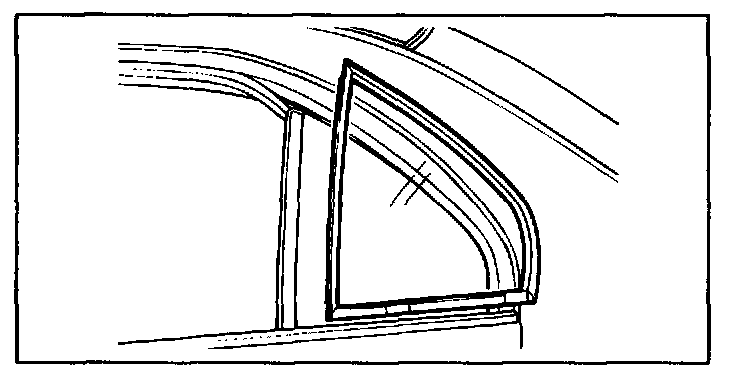

9. Remove the division channel and the door glass run.




10. Remove the rear door outside belt weatherstrip.

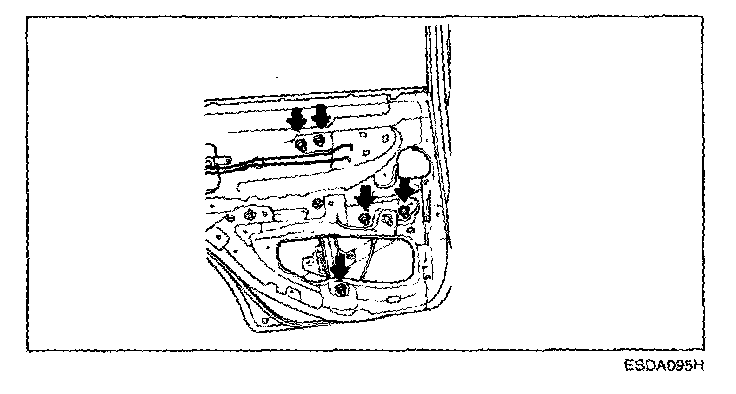

11. Loosen the door regulator channel mounting nuts and then remove the door regulator assembly. Remove the inside handle from the rod.




12. Remove the door latch and door lock actuator.

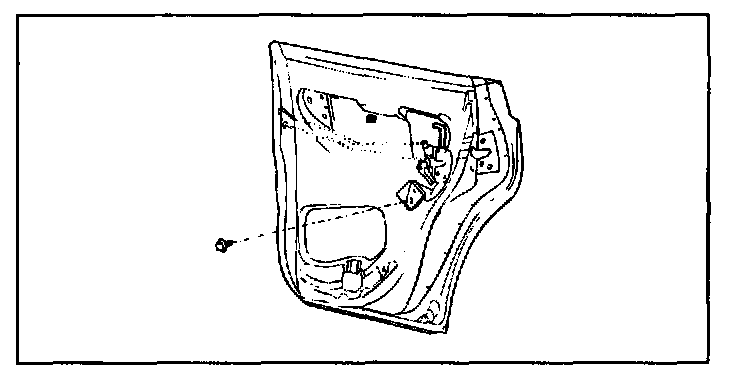

13. Remove the outside handle.
14. Installation is the reverse of removal. When installing the door trim seal, butyl tape should not be placed over the door trim fastener mounting area.
