Front Door: Adjustments

DOOR POSITION
Check for a flush fit with the body, then check for an equal gap between the front and rear, and top and bottom door edges and body.

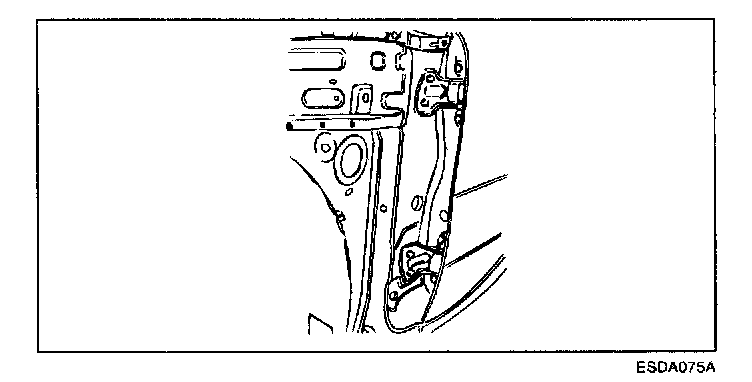

The door and body edges should also be parallel. Adjust at the hinge with the Special Tool (09793-21000).

CAUTION: Attach protective tape to the fender edges where the hinge is installed.
