Rear Bumper: Service and Repair

Rear Bumper:

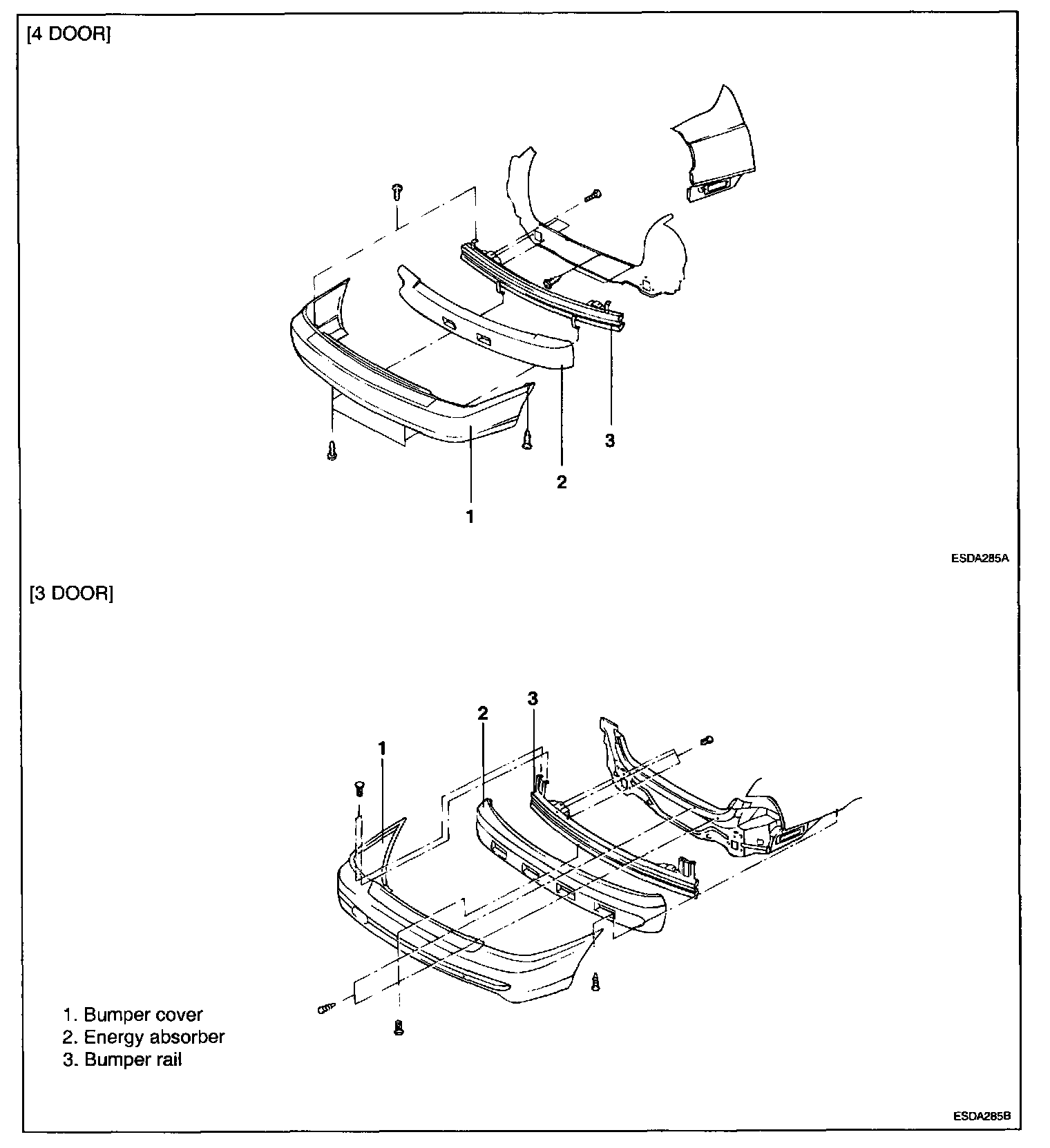

COMPONENTS

REMOVAL AND INSTALLATION

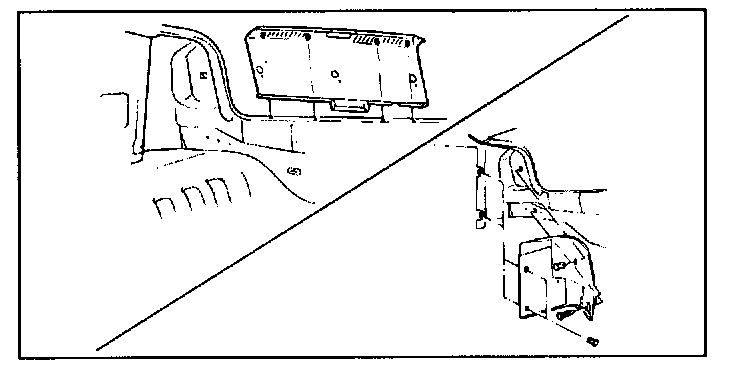

1. Remove the rear transverse trim and luggage rear trim.

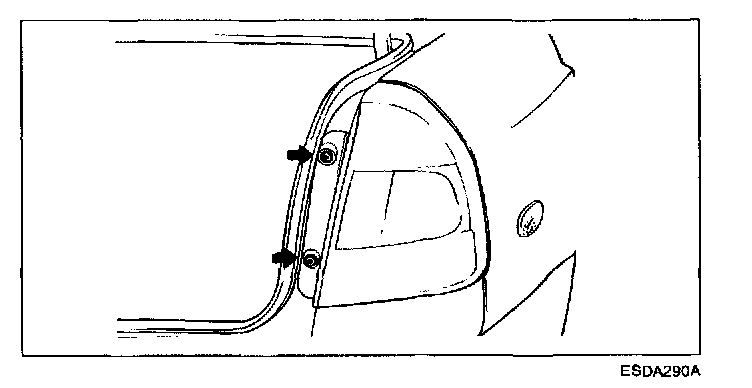

2. Remove the rear combination lamps.

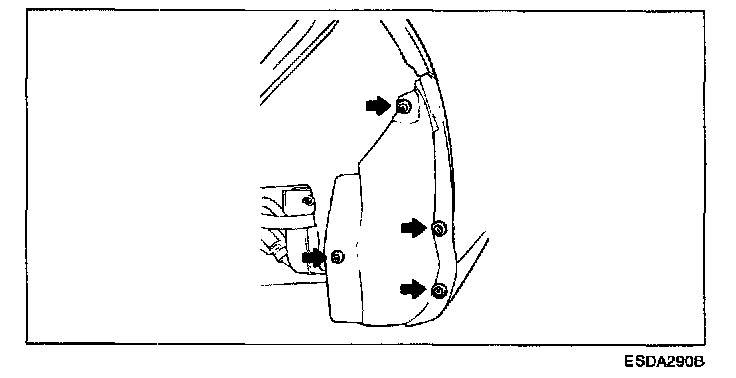

3. Remove the wheel guards.

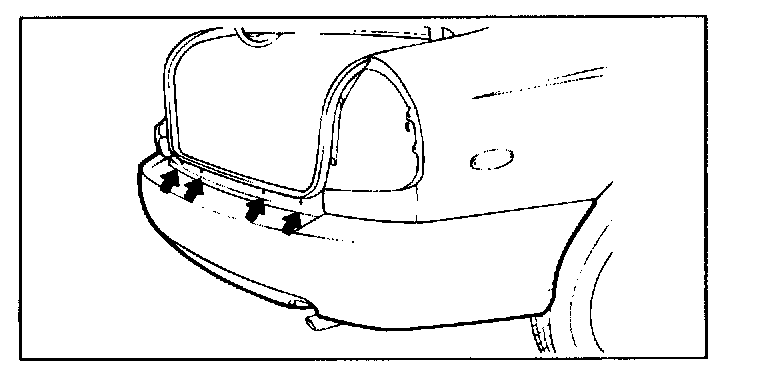

4. Remove the tapping screws and retainers.

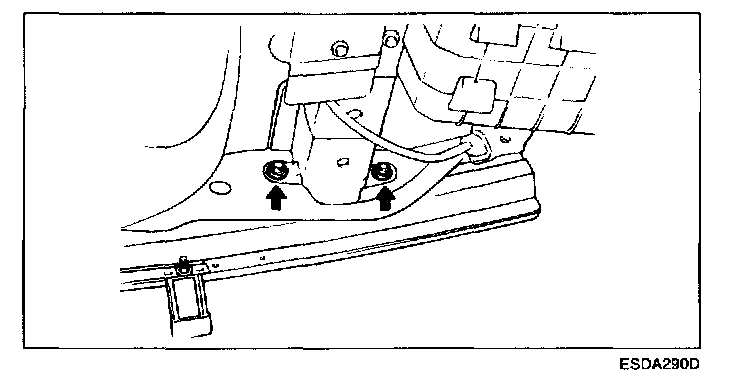

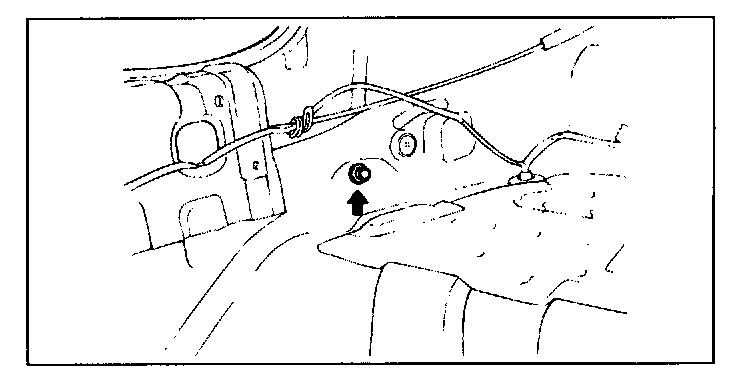

5. Loosen the bumper stay mounting bolts from under the vehicle and in the trunk room.
6. Installation is the reverse of removal.
