Front Bumper: Service and Repair

Front Bumper:

COMPONENTS

REMOVAL AND INSTALLATION

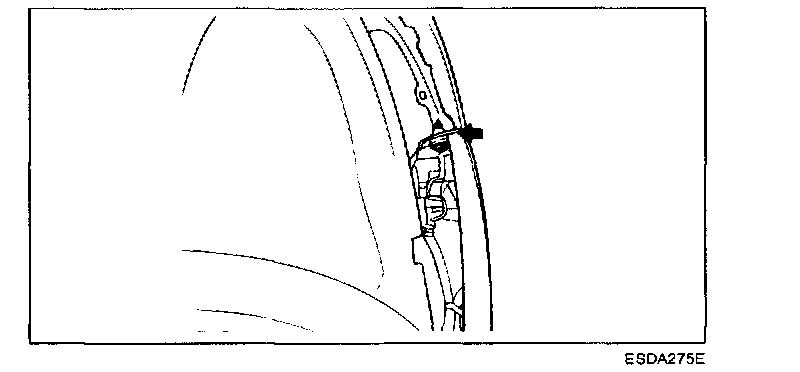

1. Remove the retainer.

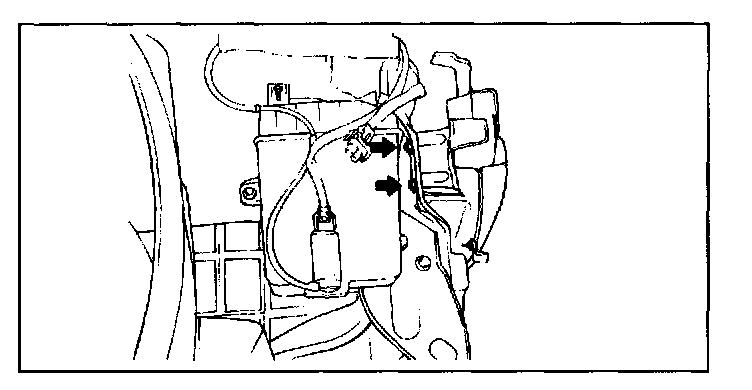

2. Remove the head lamp.

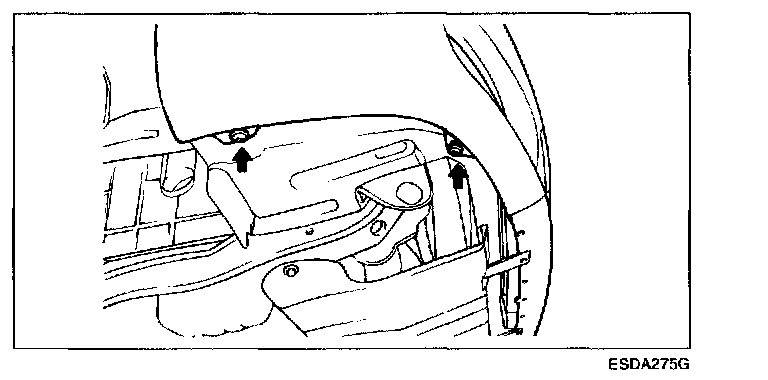

3. Remove the retainers and nuts in the bumper stay.

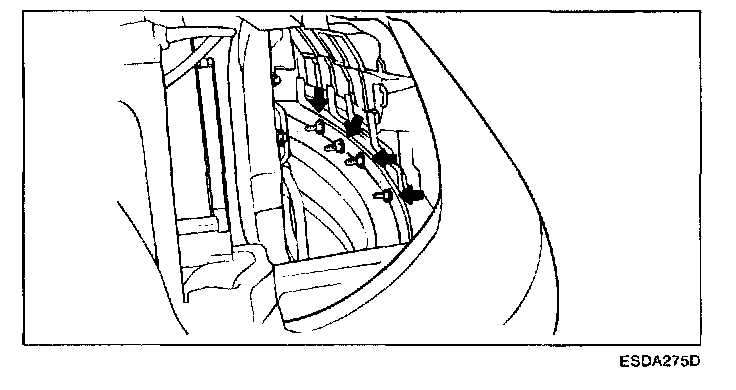

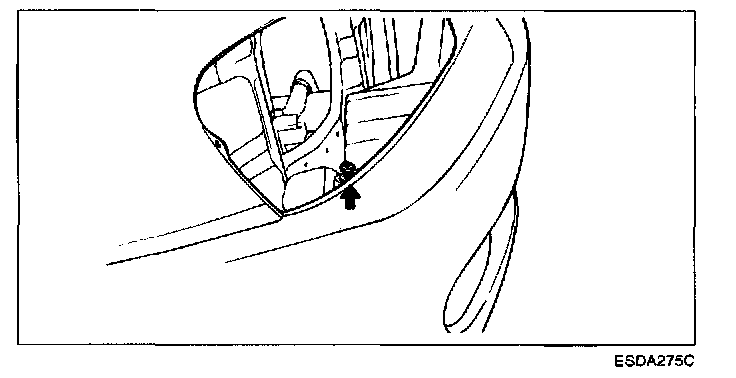

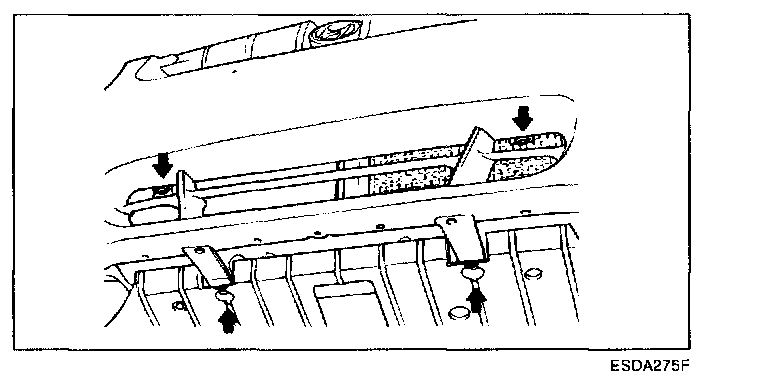

4. Raised the vehicle, then remove the screws and the retainers on the lower member.

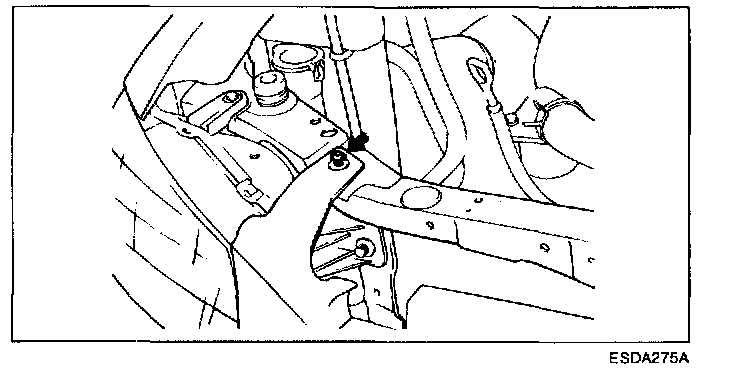

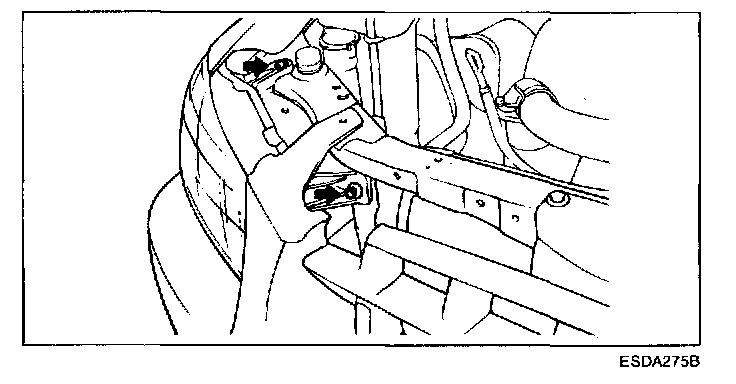

5. Remove the bumper stay mounting bolts.
6. Installations is the reverse of removal.
