Speaker: Testing and Inspection

SPEAKER CHECK

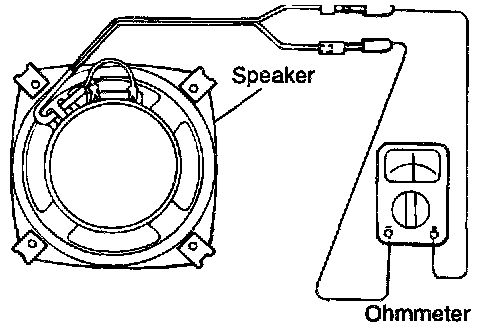

1. Check the speaker by using an ohmmeter. If an ohmmeter indicates an impedance of the speaker when checking between the speaker (+) and speaker (-) of the same channel, the speaker is normal.
2. If a clicking sound is emitted from the speaker when the ohmmeter plugs touch the speaker terminals, the speaker is normal.
