Radio, Stereo, and Compact Disc: Service and Repair

REMOVAL AND INSTALLATION

AUDIO




1. Disconnect the negative battery terminal.

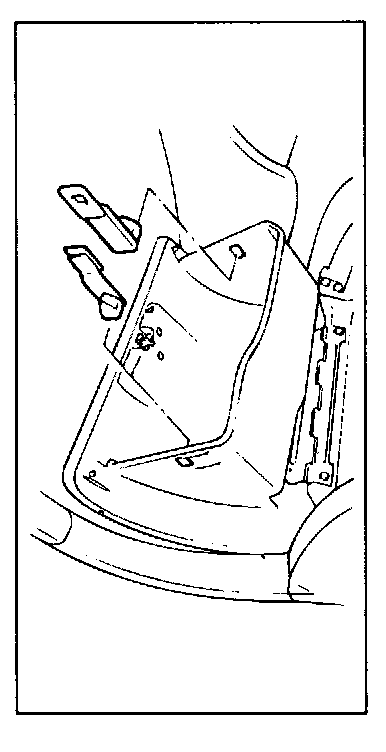

2. Remove the glove box.
3. Disconnect the heater control cables under the glove box and lower crashpad.

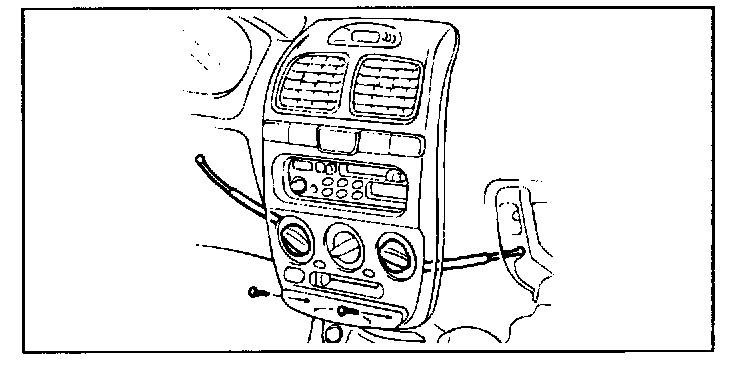

4. Loosen the screws and remove the center facia panel.

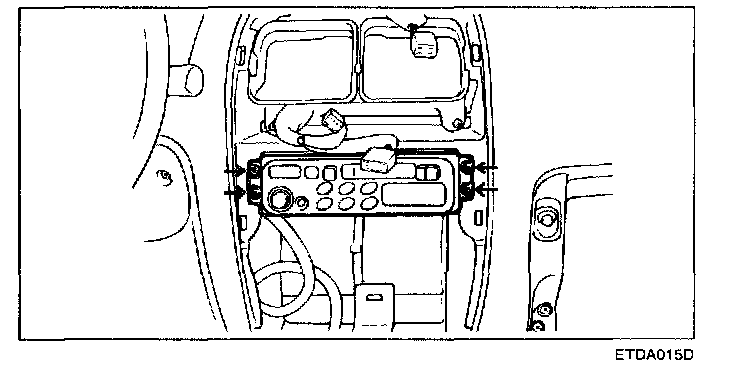

5. Remove the audio mounting screws (4EA) and the audio system.
6. Installation is the reverse of removal.
